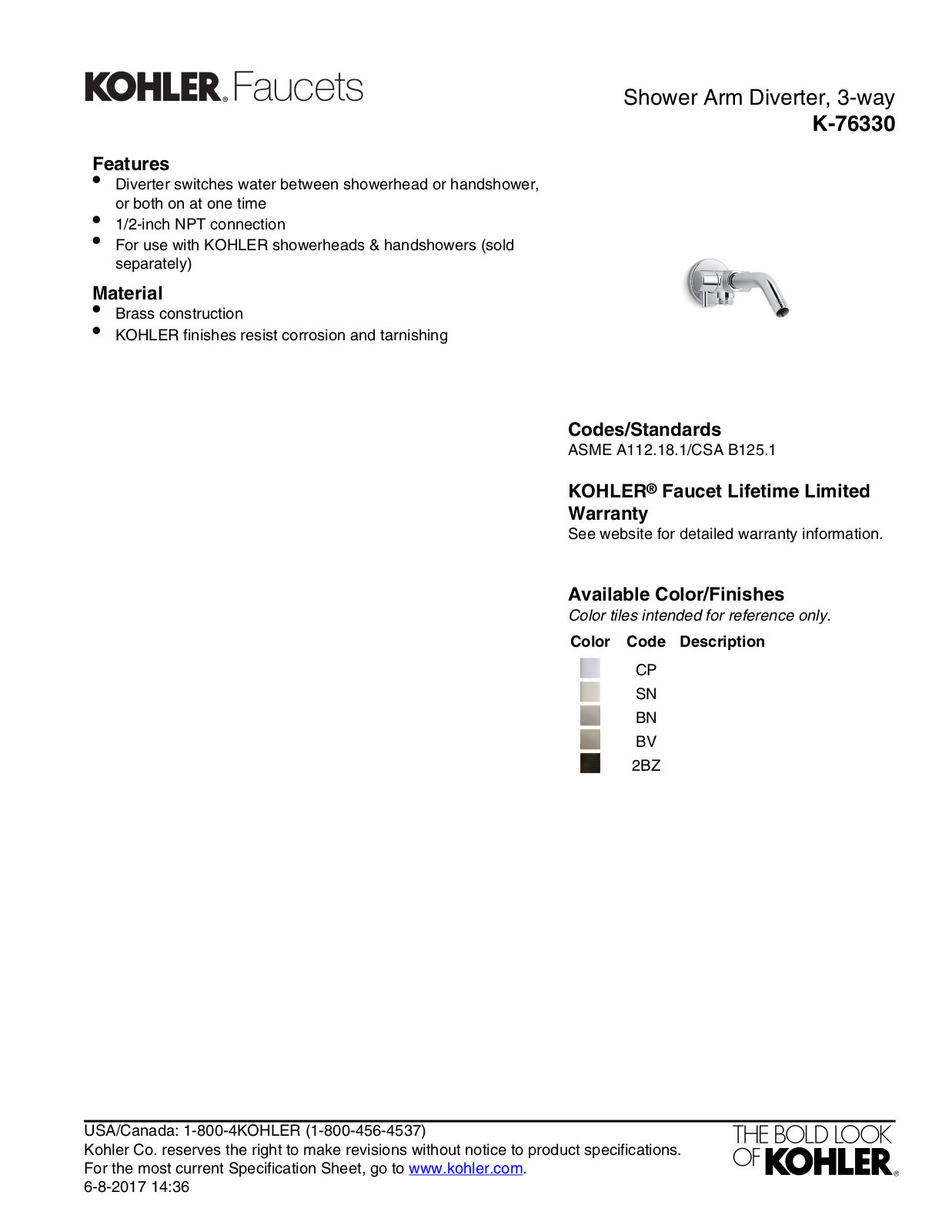

Page 1
Features
•
Diverter switches water between showerhead or handshower,
or both on at one time
•
1/2-inch NPT connection
•
For use with KOHLER showerheads & handshowers (sold
separately)
Material
•
Brass construction
•
KOHLER finishes resist corrosion and tarnishing
Shower Arm Diverter, 3-way
K-76330
Codes/Standards
ASME A112.18.1/CSA B125.1
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
CP
SN
BN
BV
2BZ
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-8-2017 14:36

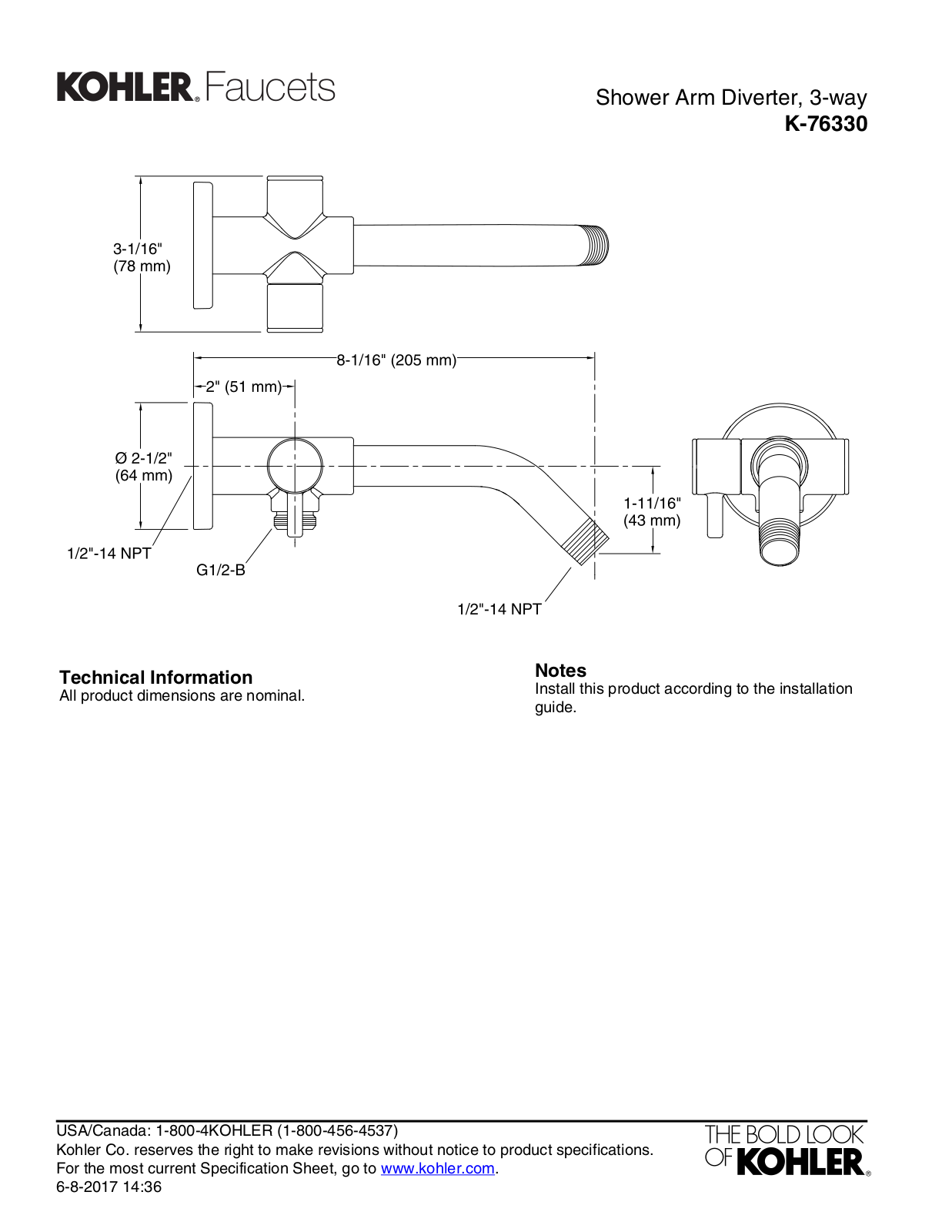

Page 2
3-1/16"
Shower Arm Diverter, 3-way
K-76330
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
guide.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-8-2017 14:36
