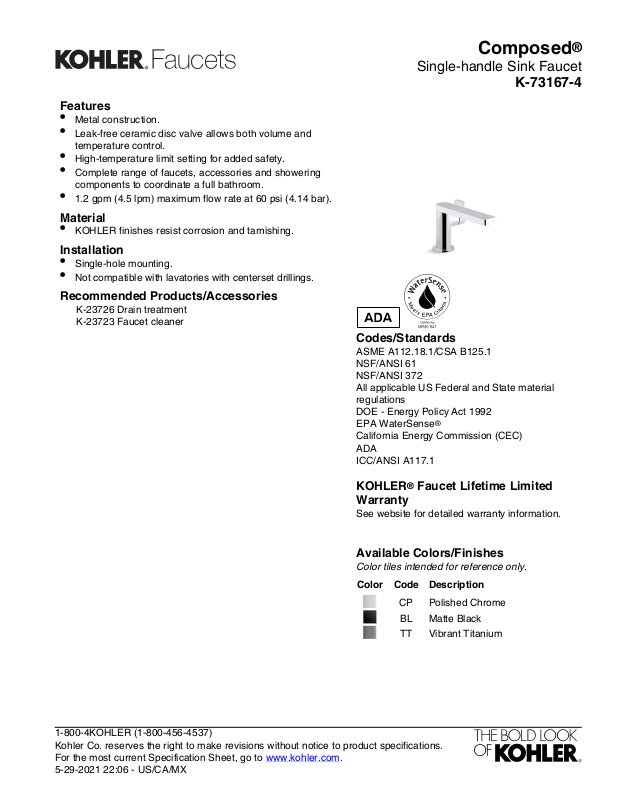

Page 1
Composed
Features
•
Metal construction.
•
Leak-free ceramic disc valve allows both volume and
temperature control.
•
High-temperature limit setting for added safety.
•
Complete range of faucets, accessories and showering
components to coordinate a full bathroom.
•
1.2 gpm (4.5 lpm) maximum flow rate at 60 psi (4.14 bar).
Material
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Single-hole mounting.
•
Not compatible with lavatories with centerset drillings.
Recommended Products/Accessories
K-23726 Drain treatment
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
EPA WaterSense
®
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
BL Matte Black
TT Vibrant Titanium
®
Single-handle Sink Faucet
K-73167-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 22:06 - US/CA/MX
Page 2
Composed
2-1/2"
(64 mm)
Max
Ø 1-3/16"
Ø 2" (51 mm)
22-5/8"
(575 mm)
4"
(102 mm)
4-3/4"
(121 mm)
5-15/16" (151 mm)
2-1/8" (54 mm)
4-1/2"
(114 mm)
Cold
Supply Hoses with 3/8"
Compression Fittings
Pop-Up Drain
1-1/4" OD
4"
(102 mm)
Ø 2-1/4"
(57 mm)
2-5/8"
(67 mm)
Technical Information
All product dimensions are nominal.
Faucet:
Flow rate: 1.2 gal/min (4.5 l/min)
Pressure: 60 psi (4.1 bar)
Valve body: Cast brass
Drain with overflow: Yes
Spout:
Spout reach: 5-15/16" (151 mm)
Notes
Install this product according to the installation
guide.
ADA compliant for handles only.
ADA compliant when installed to the specific
requirements of these regulations.
®
Single-handle Sink Faucet
K-73167-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 22:06 - US/CA/MX
