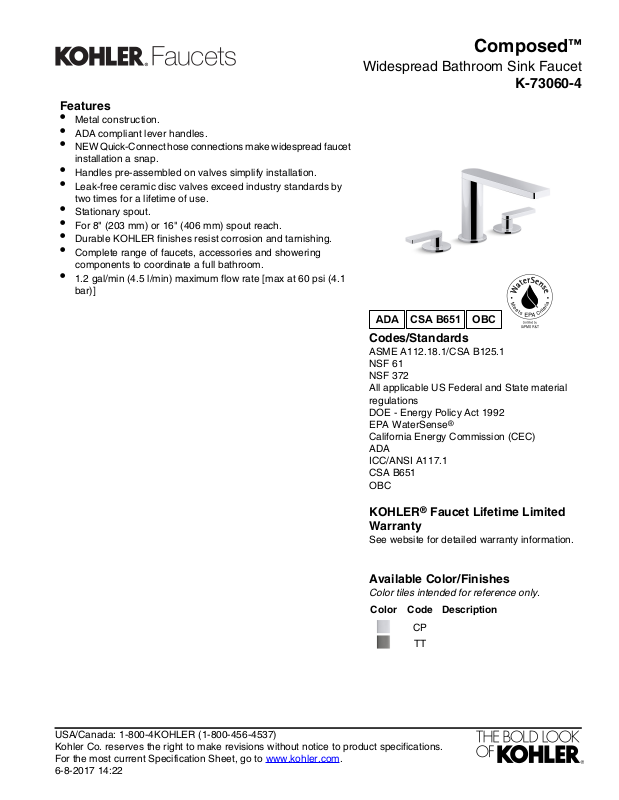

Page 1
Features
CSA B651
OBC
•
Metal construction.
•
ADA compliant lever handles.
•
NEW Quick-Connect hose connections make widespread faucet
installation a snap.
•
Handles pre-assembled on valves simplify installation.
•
Leak-free ceramic disc valves exceed industry standards by
two times for a lifetime of use.
•
Stationary spout.
•
For 8" (203 mm) or 16" (406 mm) spout reach.
•
Durable KOHLER finishes resist corrosion and tarnishing.
•
Complete range of faucets, accessories and showering
components to coordinate a full bathroom.
•
1.2 gal/min (4.5 l/min) maximum flow rate [max at 60 psi (4.1
bar)]
Composed
™
Widespread Bathroom Sink Faucet
K-73060-4
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF 61
NSF 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
EPA WaterSense
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
OBC
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
CP
TT
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-8-2017 14:22
Page 2
2"
Composed
™
Widespread Bathroom Sink Faucet
K-73060-4
Technical Information
All product dimensions are nominal.
Machined BrassValve body:
YESDrain with overflow:
YESDrain tailpiece
included:
Spout:
5-15/16" (151 mm)Spout reach:
3" (76 mm)Handle clearance:
Faucet:
1.2 gal/min (4.5 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
Notes
Install this product according to the installation
guide.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-8-2017 14:22
