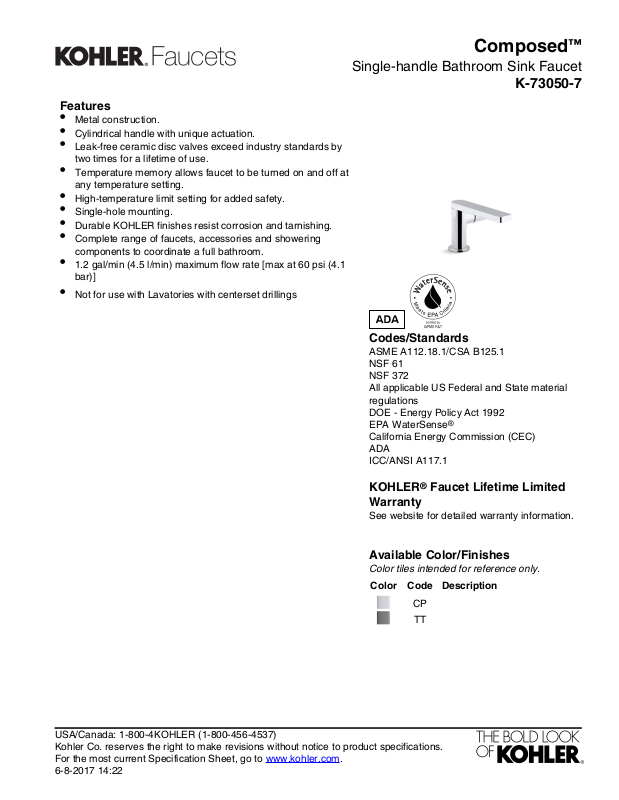

Page 1
Features
•
Metal construction.
•
Cylindrical handle with unique actuation.
•
Leak-free ceramic disc valves exceed industry standards by
two times for a lifetime of use.
•
Temperature memory allows faucet to be turned on and off at
any temperature setting.
•
High-temperature limit setting for added safety.
•
Single-hole mounting.
•
Durable KOHLER finishes resist corrosion and tarnishing.
•
Complete range of faucets, accessories and showering
components to coordinate a full bathroom.
•
1.2 gal/min (4.5 l/min) maximum flow rate [max at 60 psi (4.1
bar)]
•
Not for use with Lavatories with centerset drillings
Composed
™
Single-handle Bathroom Sink Faucet
K-73050-7
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF 61
NSF 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
EPA WaterSense
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
CP
TT
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-8-2017 14:22
Page 2
Ø 1-1/4"
Composed
™
Single-handle Bathroom Sink Faucet
K-73050-7
Technical Information
All product dimensions are nominal.
Cast BrassValve body:
YESDrain with overflow:
YESDrain tailpiece
included:
Spout:
5-15/16" (151 mm)Spout reach:
Faucet:
1.2 gal/min (4.5 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
Notes
Install this product according to the installation
guide.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-8-2017 14:22
