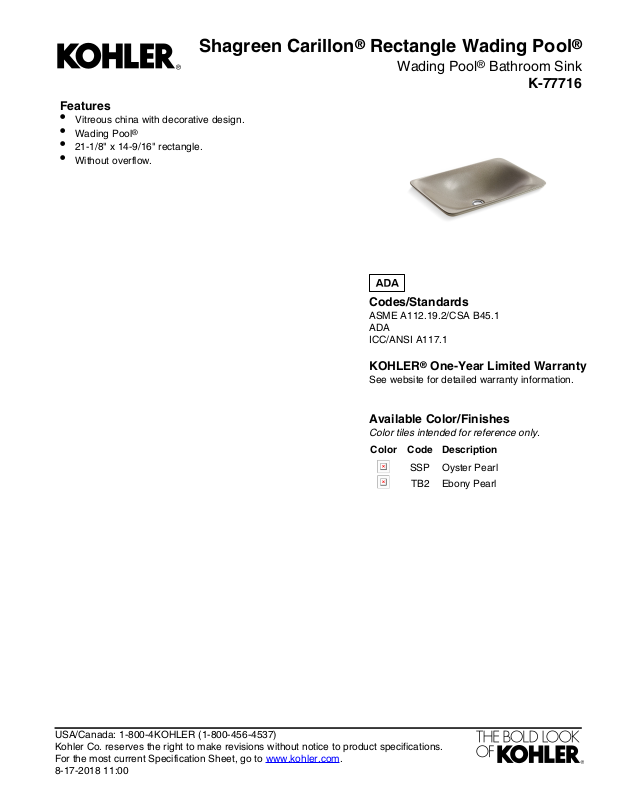

Page 1
Shagreen Carillon® Rectangle Wading Pool
Features
•
Vitreous china with decorative design.
•
Wading Pool
•
21-1/8" x 14-9/16" rectangle.
•
Without overflow.
®
®
Wading Pool® Bathroom Sink
K-77716
Codes/Standards
ASME A112.19.2/CSA B45.1
ADA
ICC/ANSI A117.1
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Oyster PearlSSP
Ebony PearlTB2
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-17-2018 11:00
Page 2
4" (102 mm)
Shagreen Carillon® Rectangle Wading Pool
Wading Pool® Bathroom Sink
K-77716
®
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Drop-in, VesselInstallation:
Bowl area (Only):
Length: 21-1/8" (536 mm)
Width: 14-9/16" (370 mm)
Bowl depth: 4-1/8" (105 mm)
Water depth: 4-1/8" (105 mm)
1242828, required, includedTemplate:
Notes
Install this product according to the installation
instructions.
NOTICE: Countertop manufacturer or cutter must
use the current product template available at
www.kohler.com, or by calling 1-800-4KOHLER.
Kohler Co. is not responsible for cutout errors
when the incorrect cutout template is used.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-17-2018 11:00
