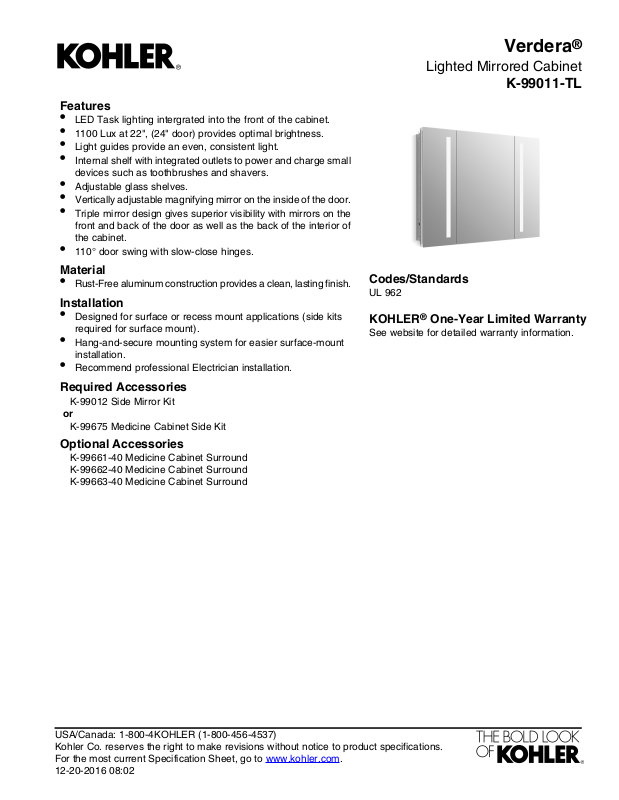

Page 1
Features
•
LED Task lighting intergrated into the front of the cabinet.
•
1100 Lux at 22", (24" door) provides optimal brightness.
•
Light guides provide an even, consistent light.
•
Internal shelf with integrated outlets to power and charge small
devices such as toothbrushes and shavers.
•
Adjustable glass shelves.
•
Vertically adjustable magnifying mirror on the inside of the door.
•
Triple mirror design gives superior visibility with mirrors on the
front and back of the door as well as the back of the interior of
the cabinet.
•
110° door swing with slow-close hinges.
Verdera
®
Lighted Mirrored Cabinet
K-99011-TL
Material
•
Rust-Free aluminum construction provides a clean, lasting finish.
Installation
•
Designed for surface or recess mount applications (side kits
required for surface mount).
•
Hang-and-secure mounting system for easier surface-mount
installation.
•
Recommend professional Electrician installation.
Required Accessories
K-99012 Side Mirror Kit
or
K-99675 Medicine Cabinet Side Kit
Optional Accessories
K-99661-40 Medicine Cabinet Surround
K-99662-40 Medicine Cabinet Surround
K-99663-40 Medicine Cabinet Surround
Codes/Standards
UL 962
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
12-20-2016 08:02
Page 2
Wall
Verdera
®
Lighted Mirrored Cabinet
K-99011-TL
Required Electrical Service
One circuit required, protected with Class A Ground-Fault
Circuit-Interrupter (GFCI) or Residual Current Device (RCD).
120 V, 15 A, 60 HzOutlet, Lights:
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
guide.
To recess mount, the wall cavity must be framed
and the cabinet secured to framing studs. Reroute
electrical or water supply lines from the cavity.
Consult a professional if drain or vent piping is
encountered, or if the wall is load-bearing.
To determine the height of the cabinet, ensure
the door will clear all obstacles (such as a faucet).
A minimum 3" (76 mm) distance is required.
Cutout for recess-mount installation: 38-1/2" (978
mm) wide x 28-1/4" (718 mm) high x 3-11/16" (94
mm) deep.
A dimmer switch is required. This product is
compatible with most residential dimmer switches
intended for incandescent and dimmable LED
bulbs.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
12-20-2016 08:02
