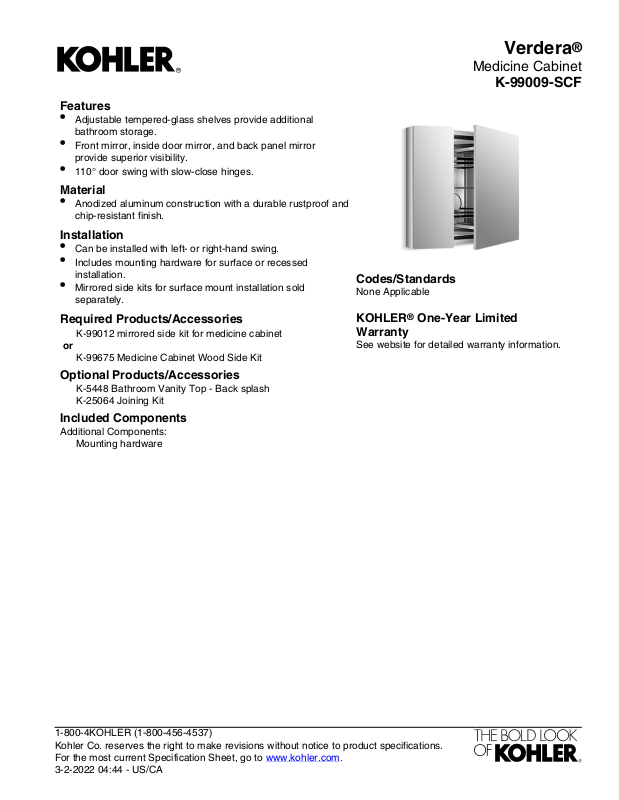

Page 1
Verdera
Features
•
Adjustable tempered-glass shelves provide additional
bathroom storage.
•
Front mirror, inside door mirror, and back panel mirror
provide superior visibility.
•
110° door swing with slow-close hinges.
Material
•
Anodized aluminum construction with a durable rustproof and
chip-resistant finish.
Installation
•
Can be installed with left- or right-hand swing.
•
Includes mounting hardware for surface or recessed
installation.
•
Mirrored side kits for surface mount installation sold
separately.
Required Products/Accessories
K-99012 mirrored side kit for medicine cabinet
or
K-99675 Medicine Cabinet Wood Side Kit
Optional Products/Accessories
K-5448 Bathroom Vanity Top - Back splash
K-25064 Joining Kit
Included Components
Additional Components:
Mounting hardware
Codes/Standards
None Applicable
KOHLER® One-Year Limited
Warranty
See website for detailed warranty information.
®
Medicine Cabinet
K-99009-SCF
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-2-2022 04:44 - US/CA
Page 2
Verdera
30"
(762 mm)
32-3/8" (822 mm)
34" (864 mm)
108°
Wall
Surface
28-1/8"
(714 mm)
4-3/4"
(121 mm)
1-1/4"
(32 mm)
3-9/16"
(90 mm)
7"
(178 mm)
108°
2-11/16"
(68 mm)
24" (610 mm) 10"
(254 mm)
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
guide.
To recess mount, the wall cavity must be
framed and the cabinet secured to framing
studs. Reroute electrical or water supply lines
from the cavity. Consult a professional if drain
or vent piping is encountered, or if the wall is
load-bearing.
To determine the height of the cabinet, ensure
the door will clear all obstacles (such as a
faucet). A minimum 3" (76 mm) distance is
required.
Cutout for recess-mount installation:
32-5/8" (829 mm) width x 28-1/4" (718 mm)
height x 3-11/16" (94 mm) depth.
®
Medicine Cabinet
K-99009-SCF
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-2-2022 04:44 - US/CA
