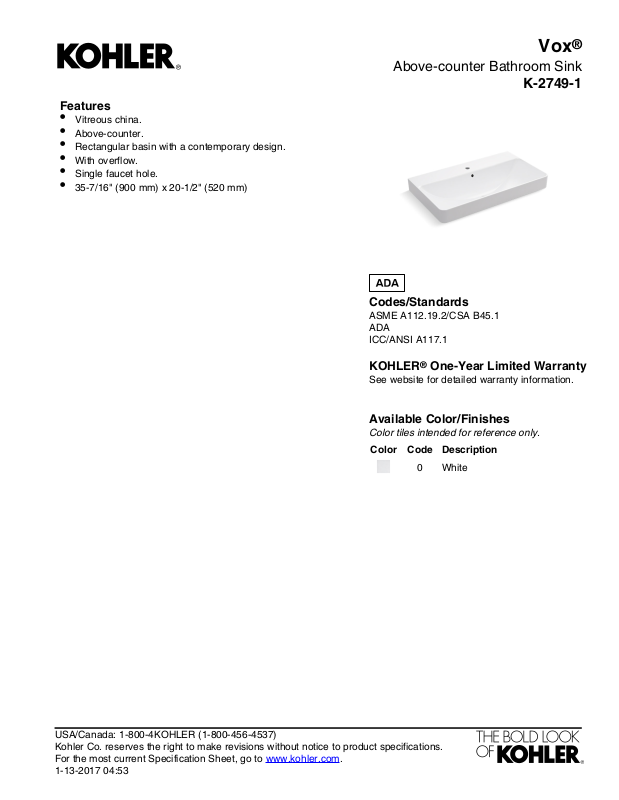

Page 1
Features
•
Vitreous china.
•
Above-counter.
•
Rectangular basin with a contemporary design.
•
With overflow.
•
Single faucet hole.
•
35-7/16" (900 mm) x 20-1/2" (520 mm)
Above-counter Bathroom Sink
K-2749-1
Codes/Standards
ASME A112.19.2/CSA B45.1
ADA
ICC/ANSI A117.1
Vox
®
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
1-13-2017 04:53
Page 2

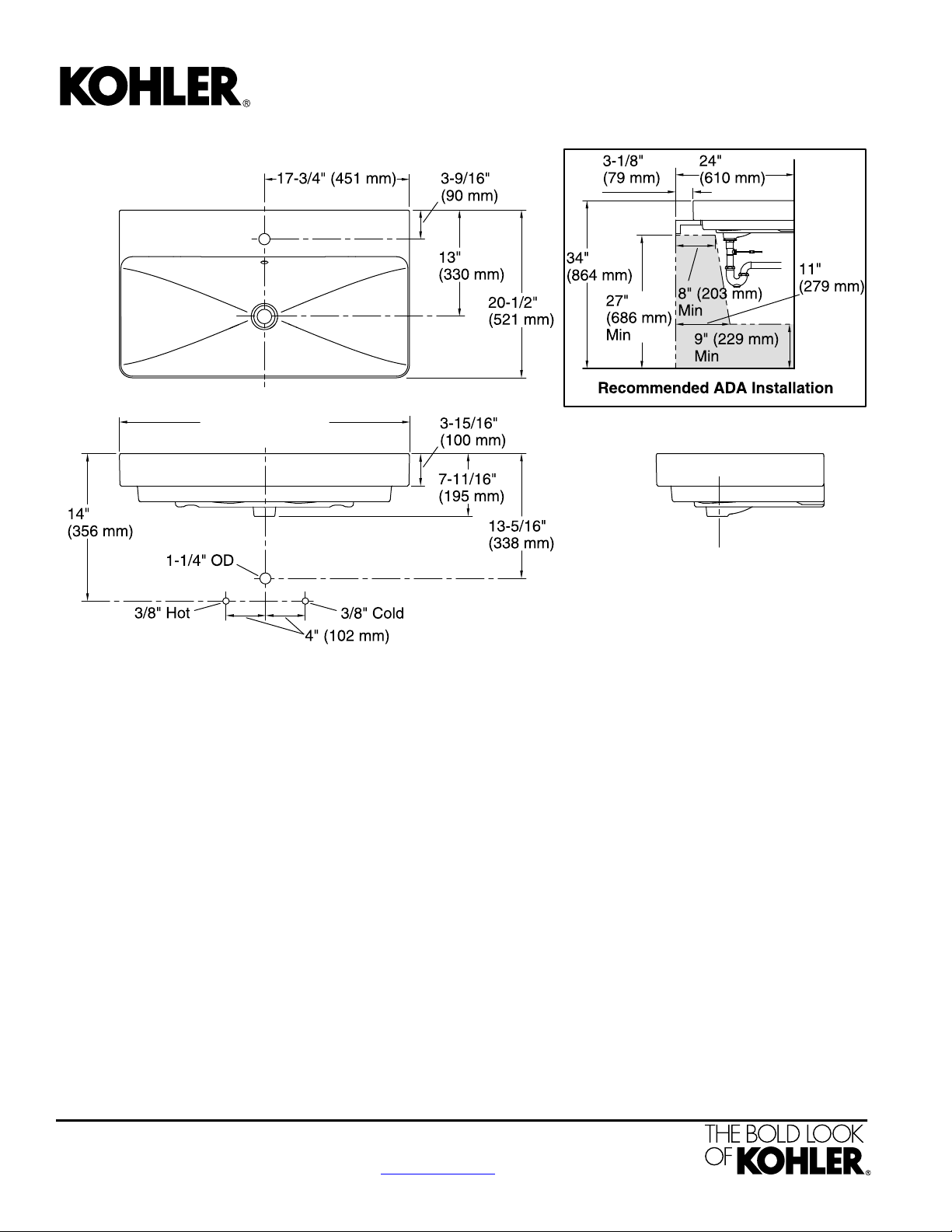

35-7/16" (900 mm)
Vox
®
Above-counter Bathroom Sink
K-2749-1
Technical Information
All product dimensions are nominal.
Bowl area
Length: 34-11/16" (881 mm)
Width: 14-3/16" (361 mm)
Bowl depth: 5-11/16" (145 mm)
Water depth: 4-15/16" (125 mm)
1-3/4" (45 mm)Drain hole:
Notes
Install this product according to the installation
instructions.
Choose a faucet that will provide adequate
clearance and will direct the water stream to the
center of the bathroom sink.
Countertop manufacturer or cutter must use the
cut-out template provided with the product, or a
current one provided by Kohler Co. (call
1-800-43-FOCUS). Kohler Co. is not responsible
for cut-out errors when the incorrect cut-out
template is used.
Product rests on countertop. Consider height
when designing installation.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
1-13-2017 04:53
