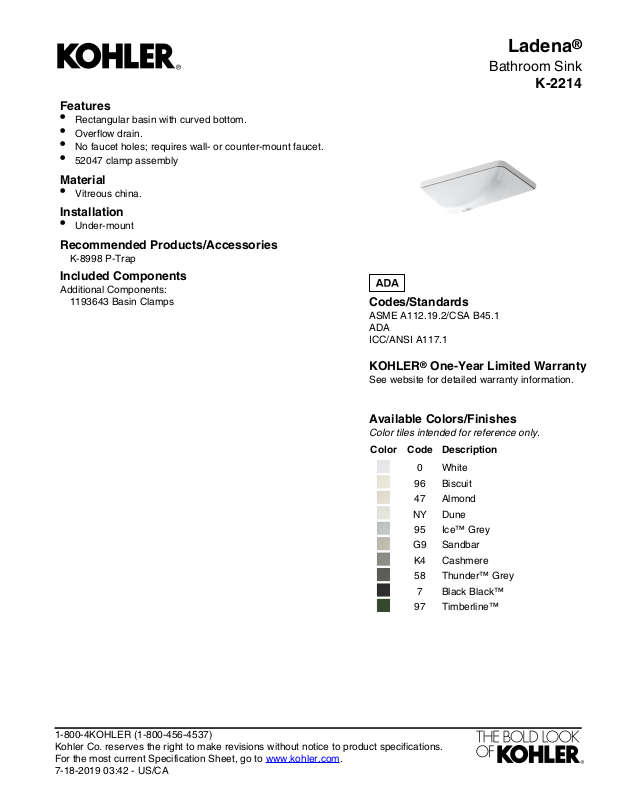

Page 1
Features
•
Rectangular basin with curved bottom.
•
Overflow drain.
•
No faucet holes; requires wall- or counter-mount faucet.
•
52047 clamp assembly
Material
•
Vitreous china.
Installation
•
Under-mount
Recommended Products/Accessories
K-8998 P-Trap
Included Components
Additional Components:
1193643 Basin Clamps
Bathroom Sink
Codes/Standards
ASME A112.19.2/CSA B45.1
ADA
ICC/ANSI A117.1
Ladena
K-2214
®
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
Ice™ Grey95
SandbarG9
CashmereK4
Thunder™ Grey58
Black Black™7
Timberline™97
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-18-2019 03:42 - US/CA
Page 2
14-3/8"
Ladena
®
Bathroom Sink
K-2214
Technical Information
All product dimensions are nominal.
Under-mountInstallation:
Bowl area:
Length: 18-5/8" (473 mm)
Width: 12-1/4" (311 mm)
Water depth: 4-5/8" (117 mm)
1-3/4" (44 mm)Drain hole:
1053195-7, required, not includedTemplate:
Notes
Install this product according to the installation
instructions.
The product diagram is based on the K-8998
adjustable P-trap with 1" (25 mm) of tailpiece
exposed.
NOTICE: Countertop manufacturer or cutter must
use the current product template available at
www.kohler.com, or by calling 1-800-4KOHLER.
Kohler Co. is not responsible for cutout errors
when the incorrect cutout template is used.
ADA compliant when installed to the specific
requirements of these regulations.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-18-2019 03:42 - US/CA
