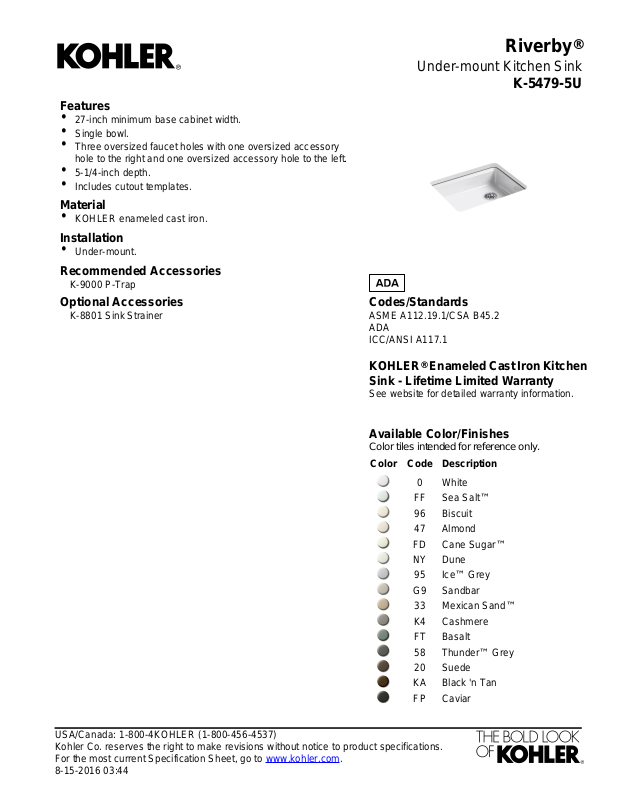

Page 1
Features
•
27-inch minimum base cabinet width.
•
Single bowl.
•
Three oversized faucet holes with one oversized accessory
hole to the right and one oversized accessory hole to the left.
•
5-1/4-inch depth.
•
Includes cutout templates.
Material
•
KOHLER enameled cast iron.
Installation
•
Under-mount.
Recommended Accessories
K-9000 P-Trap
Riverby
®
Under-mount Kitchen Sink
K-5479-5U
Optional Accessories
K-8801 Sink Strainer
Codes/Standards
ASME A112.19.1/CSA B45.2
ADA
ICC/ANSI A117.1
KOHLER® Enameled Cast Iron Kitchen
Sink - Lifetime Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Sea Salt™FF
Biscuit96
Almond47
Cane Sugar™FD
DuneNY
Ice™ Grey95
SandbarG9
Mexican Sand™33
CashmereK4
BasaltFT
Thunder™ Grey58
Suede20
Black 'n TanKA
CaviarFP
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-15-2016 03:44
Page 2
1-1/2" OD
Riverby
®
Under-mount Kitchen Sink
K-5479-5U
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Under-mount, Under-mountInstallation:
Bowl area (Only)
Length: 22-1/4" (566 mm)
Width: 17-1/4" (438 mm)
Bowl depth: 5-1/4" (133 mm)
Water depth: 5-1/4" (133 mm)
5Number of deck holes:
1172565-7, required, includedTemplate:
Notes
Install this product according to the installation
instructions.
NOTICE: Countertop manufacturer or cutter must
use the cut-out template provided with the
product, or a current one provided by Kohler Co.
(call 1-800-4-KOHLER). Kohler Co. is not
responsible for cutout errors when the incorrect
cut-out template is used.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-15-2016 03:44
