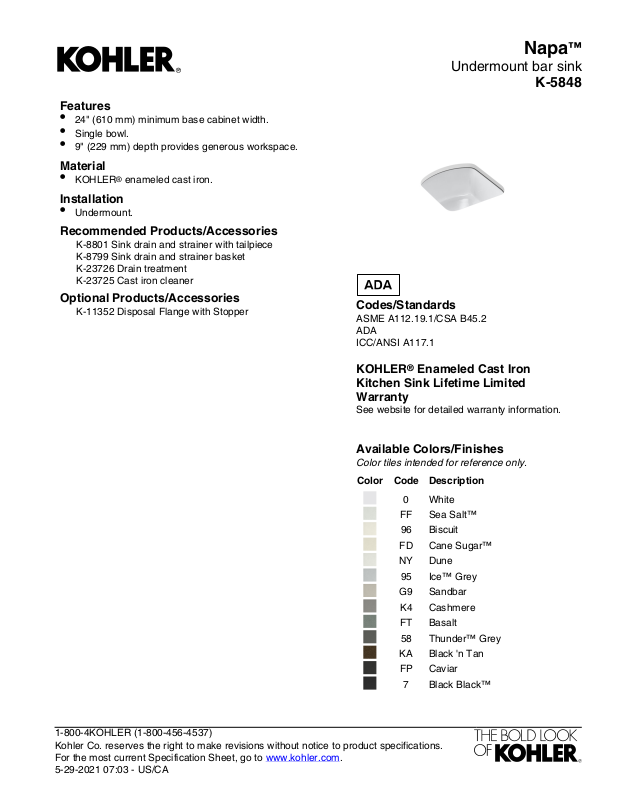

Page 1
Napa
Features
•
24" (610 mm) minimum base cabinet width.
•
Single bowl.
•
9" (229 mm) depth provides generous workspace.
Material
•
KOHLER® enameled cast iron.
Installation
•
Undermount.
Recommended Products/Accessories
K-8801 Sink drain and strainer with tailpiece
K-8799 Sink drain and strainer basket
K-23726 Drain treatment
K-23725 Cast iron cleaner
Optional Products/Accessories
K-11352 Disposal Flange with Stopper
Codes/Standards
ASME A112.19.1/CSA B45.2
ADA
ICC/ANSI A117.1
KOHLER® Enameled Cast Iron
Kitchen Sink Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
FF Sea Salt™
96 Biscuit
FD Cane Sugar™
NY Dune
95 Ice™ Grey
G9 Sandbar
K4 Cashmere
FT Basalt
58 Thunder™ Grey
KA Black 'n Tan
FP Caviar
7 Black Black™
™
Undermount bar sink
K-5848
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 07:03 - US/CA
Page 2
Napa
Sink
5/8" (16 mm)
Ø 3/8" (10 mm)
Sealant
18-11/16"
(475 mm)
9-3/8"
(238 mm)
13-1/2"
(343 mm)
18-3/4" (476 mm)
15/16" (24 mm)
3/8"
(10 mm)
1-1/2" OD
9-5/8"
(244 mm)
Solid-Surface
Installation
9-3/8"
(238 mm)
Technical Information
All product dimensions are nominal.
Installation: Under-mount
Bowl area: Length: 15-11/16" (399 mm)
Width: 17-1/8" (435 mm)
Bowl depth: 9" (229 mm)
Water depth: 9" (229 mm)
Template: 1259678-7, required, included
Notes
Install this product according to the installation
instructions.
ADA compliant when installed to the specific
requirements of these regulations.
ADA permits a parallel approach to wet bars.
™
Undermount bar sink
K-5848
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 07:03 - US/CA
