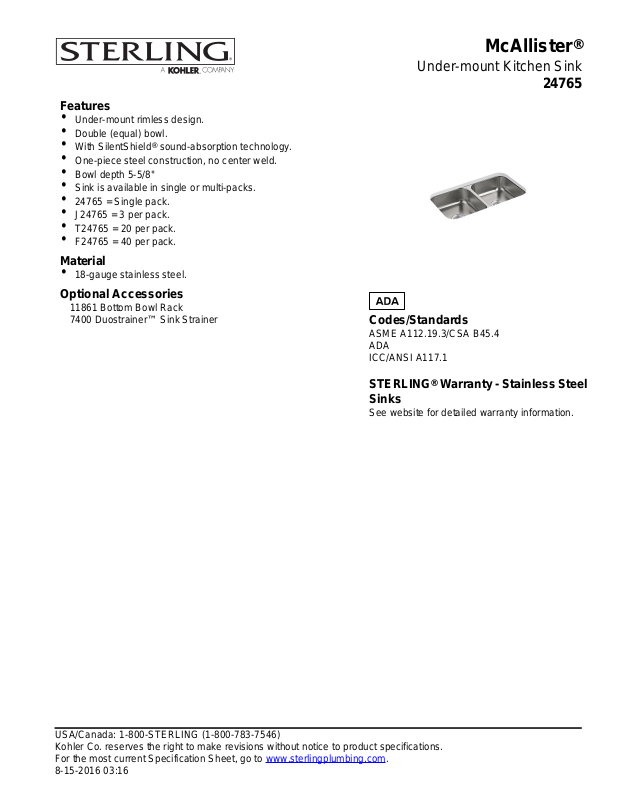

Page 1
Features
•
Under-mount rimless design.
•
Double (equal) bowl.
•
With SilentShield® sound-absorption technology.
•
One-piece steel construction, no center weld.
•
Bowl depth 5-5/8"
•
Sink is available in single or multi-packs.
•
24765 = Single pack.
•
J24765 = 3 per pack.
•
T24765 = 20 per pack.
•
F24765 = 40 per pack.
Material
•
18-gauge stainless steel.
Optional Accessories
11861 Bottom Bowl Rack
7400 Duostrainer™ Sink Strainer
McAllister
Under-mount Kitchen Sink
Codes/Standards
ASME A112.19.3/CSA B45.4
ADA
ICC/ANSI A117.1
®
24765
STERLING® Warranty - Stainless Steel
Sinks
See website for detailed warranty information.
USA/Canada: 1-800-STERLING (1-800-783-7546)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.sterlingplumbing.com.
8-15-2016 03:16
Page 2
Recommended ADA Installation
McAllister
®
Under-mount Kitchen Sink
24765
Technical Information
All product dimensions are nominal.
Double equalBowl configuration:
Under-mountInstallation:
Bowl area (Left)
Bowl area (Right)
Length: 14-1/8" (358 mm)
Width: 15-3/4" (400 mm)
Bowl depth: 5-5/8" (143 mm)
Water depth: 5-5/8" (143 mm)
Length: 14-1/8" (358 mm)
Width: 15-3/4" (400 mm)
Bowl depth: 5-5/8" (143 mm)
Water depth: 5-5/8" (143 mm)
3-5/8" (92 mm)Drain hole:
1041962-7, required, includedTemplate:
Notes
Install this product according to the installation
instructions.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-STERLING (1-800-783-7546)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.sterlingplumbing.com.
8-15-2016 03:16
