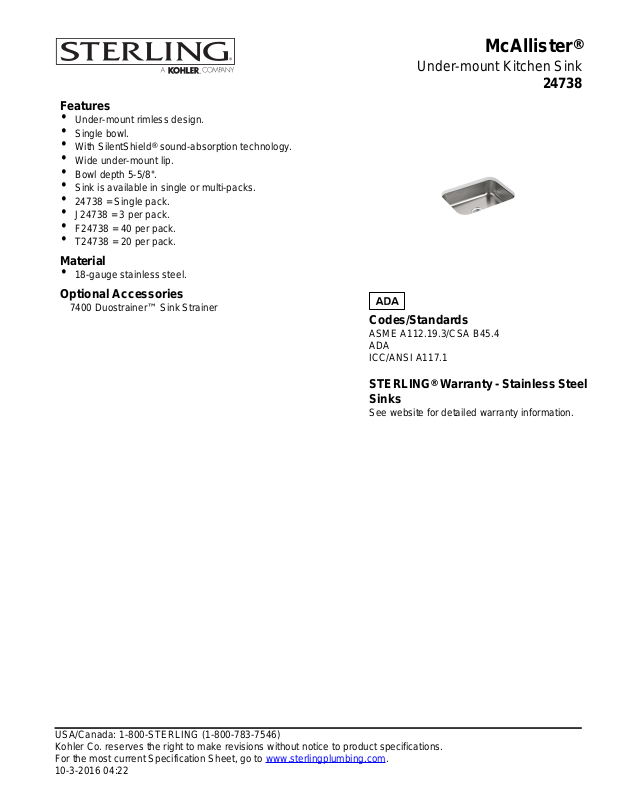

Page 1
Features
•
Under-mount rimless design.
•
Single bowl.
•
With SilentShield® sound-absorption technology.
•
Wide under-mount lip.
•
Bowl depth 5-5/8".
•
Sink is available in single or multi-packs.
•
24738 = Single pack.
•
J24738 = 3 per pack.
•
F24738 = 40 per pack.
•
T24738 = 20 per pack.
Material
•
18-gauge stainless steel.
Optional Accessories
7400 Duostrainer™ Sink Strainer
McAllister
Under-mount Kitchen Sink
Codes/Standards
ASME A112.19.3/CSA B45.4
ADA
ICC/ANSI A117.1
®
24738
STERLING® Warranty - Stainless Steel
Sinks
See website for detailed warranty information.
USA/Canada: 1-800-STERLING (1-800-783-7546)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.sterlingplumbing.com.
10-3-2016 04:22
Page 2
11-5/16"
McAllister
®
Under-mount Kitchen Sink
24738

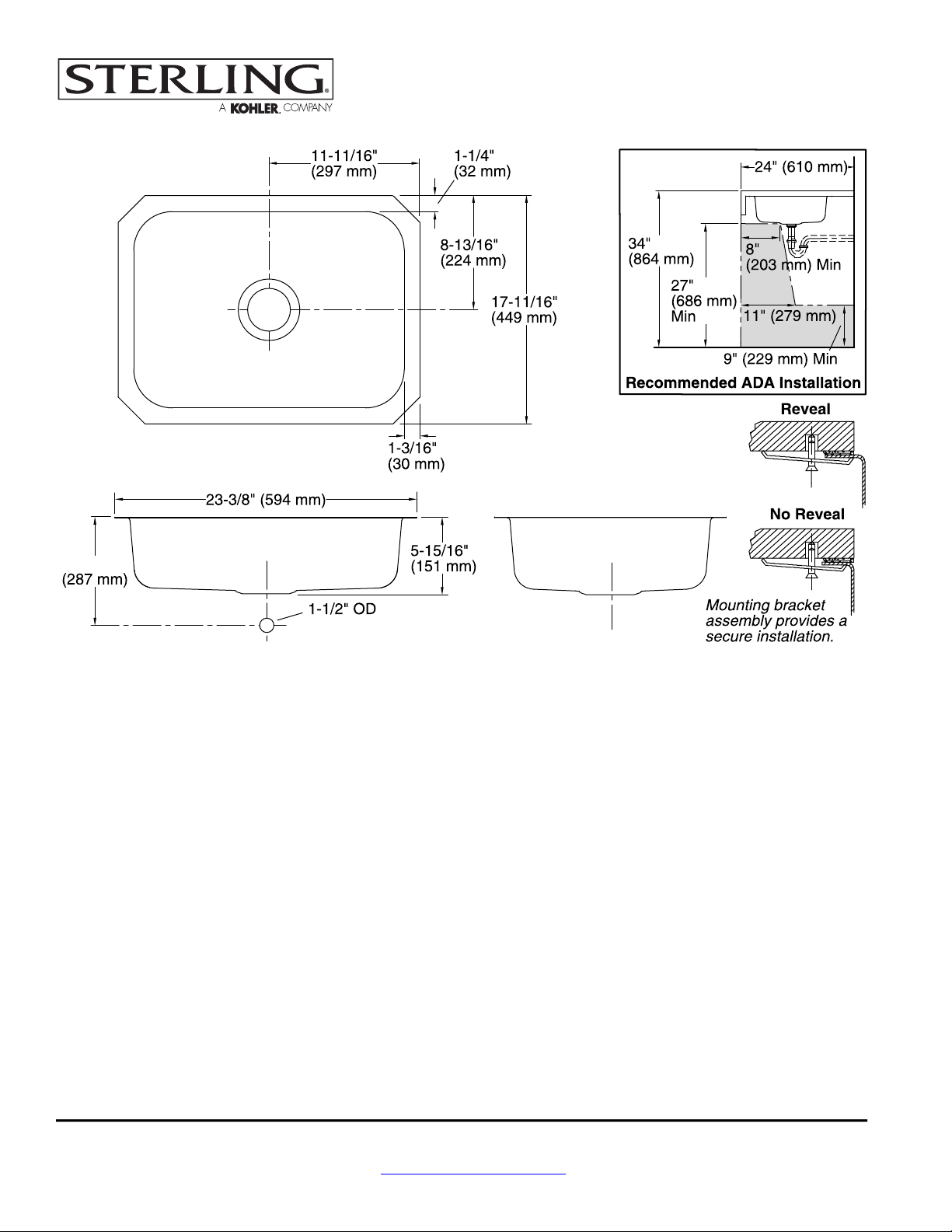

Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Under-mountInstallation:
Bowl area (Only)
Length: 21" (533 mm)
Width: 15-1/4" (387 mm)
Bowl depth: 5-5/8" (143 mm)
Water depth: 5-5/8" (143 mm)
1064257-7, required, includedTemplate:
Notes
Install this product according to the installation
instructions.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-STERLING (1-800-783-7546)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.sterlingplumbing.com.
10-3-2016 04:22
