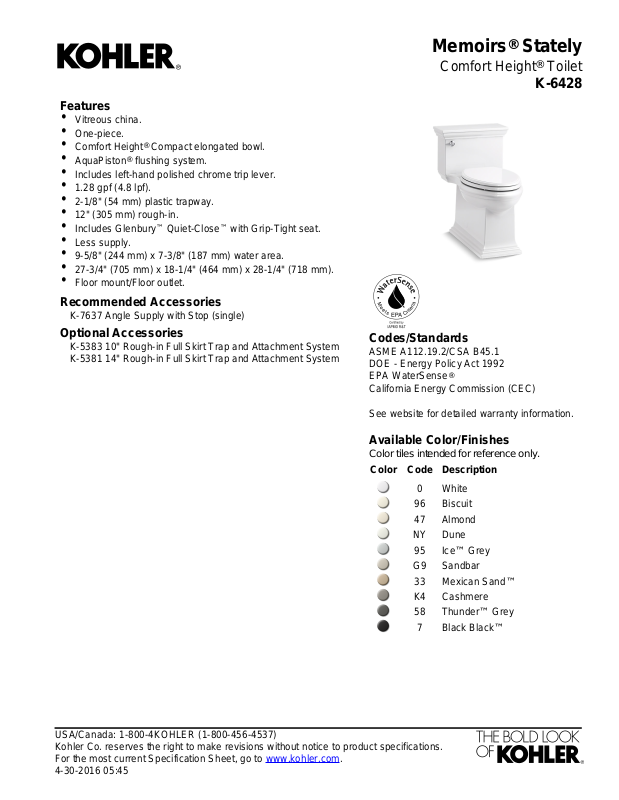

Page 1
Features
•
Vitreous china.
•
One-piece.
•
Comfort Height® Compact elongated bowl.
•
AquaPiston® flushing system.
•
Includes left-hand polished chrome trip lever.
•
1.28 gpf (4.8 lpf).
•
2-1/8" (54 mm) plastic trapway.
•
12" (305 mm) rough-in.
•
Includes Glenbury™ Quiet-Close™ with Grip-Tight seat.
•
Less supply.
•
9-5/8" (244 mm) x 7-3/8" (187 mm) water area.
•
27-3/4" (705 mm) x 18-1/4" (464 mm) x 28-1/4" (718 mm).
•
Floor mount/Floor outlet.
Recommended Accessories
K-7637 Angle Supply with Stop (single)
Memoirs® Stately
Comfort Height® Toilet
K-6428
Optional Accessories
K-5383 10" Rough-in Full Skirt Trap and Attachment System
K-5381 14" Rough-in Full Skirt Trap and Attachment System
Codes/Standards
ASME A112.19.2/CSA B45.1
DOE - Energy Policy Act 1992
EPA WaterSense
California Energy Commission (CEC)
See website for detailed warranty information.
®
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
Ice™ Grey95
SandbarG9
Mexican Sand™33
CashmereK4
Thunder™ Grey58
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-30-2016 05:45
Page 2
6-5/8"
Memoirs® Stately
Comfort Height® Toilet
K-6428
Technical Information
All product dimensions are nominal.
One-pieceToilet type:
Compact Elongated frontBowl shape:
AquaPistonFlush type:
2-1/8" (54 mm)Trap passageway:
Water Consumption
1.28 gpf (4.8 lpf)Full:
9-5/8" x 7-3/8" (244 mm x 187 mm)Water surface size:
5-3/8" (137 mm)Rim to water surface:
12" (305 mm)Rough-in:
5-1/2" (140 mm)Seat-mounting holes:
Notes
Install this product according to the installation
instructions.
For back-to-back toilet installations: Use only a
45° double wye fitting.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-30-2016 05:45
