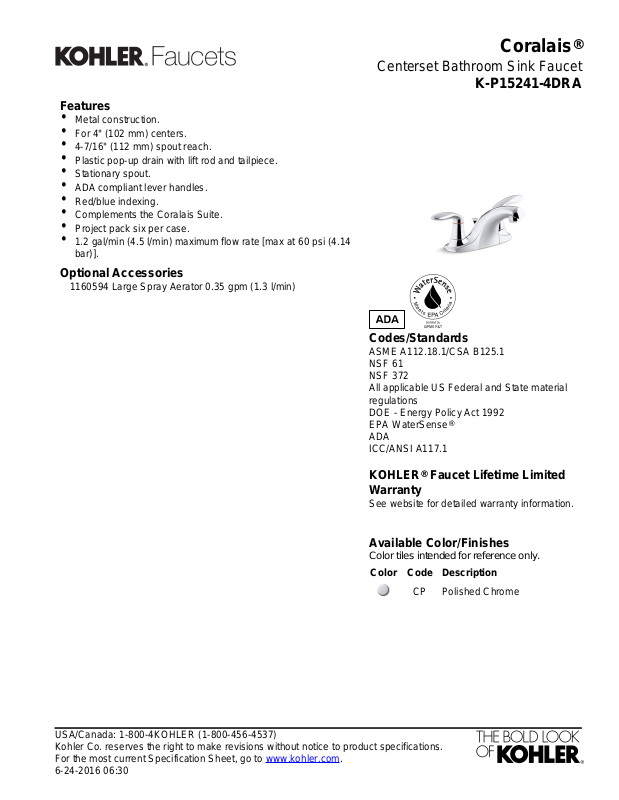

Page 1
Features
•
Metal construction.
•
For 4" (102 mm) centers.
•
4-7/16" (112 mm) spout reach.
•
Plastic pop-up drain with lift rod and tailpiece.
•
Stationary spout.
•
ADA compliant lever handles.
•
Red/blue indexing.
•
Complements the Coralais Suite.
•
Project pack six per case.
•
1.2 gal/min (4.5 l/min) maximum flow rate [max at 60 psi (4.14
bar)].
Optional Accessories
1160594 Large Spray Aerator 0.35 gpm (1.3 l/min)
Coralais
®
Centerset Bathroom Sink Faucet
K-P15241-4DRA
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF 61
NSF 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
EPA WaterSense
ADA
ICC/ANSI A117.1
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-24-2016 06:30
Page 2
4-7/16"
Coralais
®
Centerset Bathroom Sink Faucet
K-P15241-4DRA
Technical Information
All product dimensions are nominal.
Machined BrassValve body:
YESDrain with overflow:
YESDrain tailpiece
included:
Spout:
4-7/16" (112 mm)Spout reach:
2-9/16" (65 mm)Handle clearance:
Faucet:
1.2 gal/min (4.5 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
Notes
Install this product according to the installation
guide.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-24-2016 06:30
