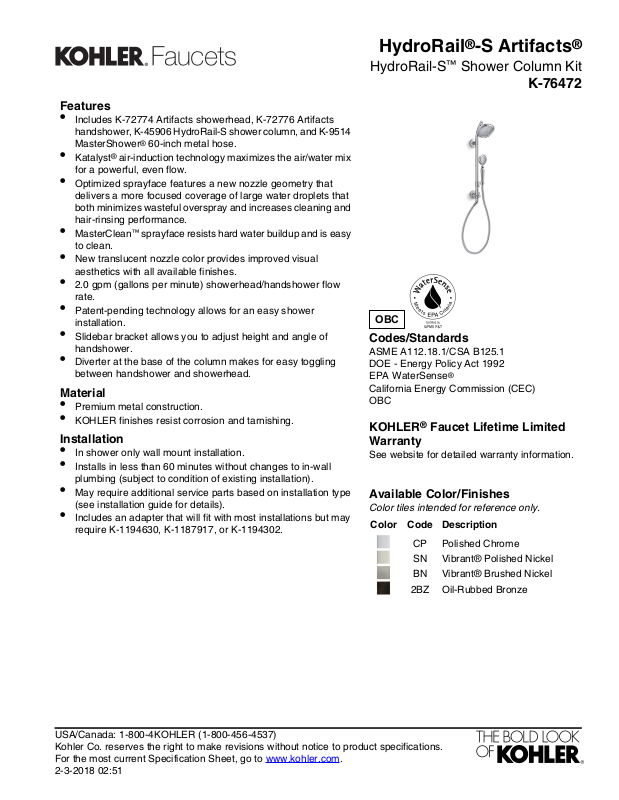

Page 1
Features
OBC
•
Includes K-72774 Artifacts showerhead, K-72776 Artifacts
handshower, K-45906 HydroRail-S shower column, and K-9514
MasterShower® 60-inch metal hose.
•
Katalyst® air-induction technology maximizes the air/water mix
for a powerful, even flow.
•
Optimized sprayface features a new nozzle geometry that
delivers a more focused coverage of large water droplets that
both minimizes wasteful overspray and increases cleaning and
hair-rinsing performance.
•
MasterClean™ sprayface resists hard water buildup and is easy
to clean.
•
New translucent nozzle color provides improved visual
aesthetics with all available finishes.
•
2.0 gpm (gallons per minute) showerhead/handshower flow
rate.
•
Patent-pending technology allows for an easy shower
installation.
•
Slidebar bracket allows you to adjust height and angle of
handshower.
•
Diverter at the base of the column makes for easy toggling
between handshower and showerhead.
Material
•
Premium metal construction.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
In shower only wall mount installation.
•
Installs in less than 60 minutes without changes to in-wall
plumbing (subject to condition of existing installation).
•
May require additional service parts based on installation type
(see installation guide for details).
•
Includes an adapter that will fit with most installations but may
require K-1194630, K-1187917, or K-1194302.
HydroRail®-S Artifacts
HydroRail-S™ Shower Column Kit
K-76472
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
EPA WaterSense
California Energy Commission (CEC)
OBC
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
®
DescriptionCodeColor
Polished ChromeCP
Vibrant® Polished NickelSN
Vibrant® Brushed NickelBN
Oil-Rubbed Bronze2BZ
®
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
2-3-2018 02:51
Page 2
75" (1905 mm)
HydroRail®-S Artifacts
®
HydroRail-S™ Shower Column Kit
K-76472
Technical Information
All product dimensions are nominal.
Handshower:
2 gal/min (7.6 l/min)Rated maximum flow:
Showerhead/Body Spray:
2 gal/min (7.6 l/min)Rated maximum flow:
Notes
Install this product according to the installation
guide.
IMPORTANT! The slidebar must be mounted to
stud framing at both the top and bottom mounting
locations. Do not use or depend on plastic wall
anchors to attach the slidebar.
Plumbing codes may require that an atmospheric
vacuum breaker be installed in-line to
handshowers. Consult with local codes.
OBC compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
2-3-2018 02:51
