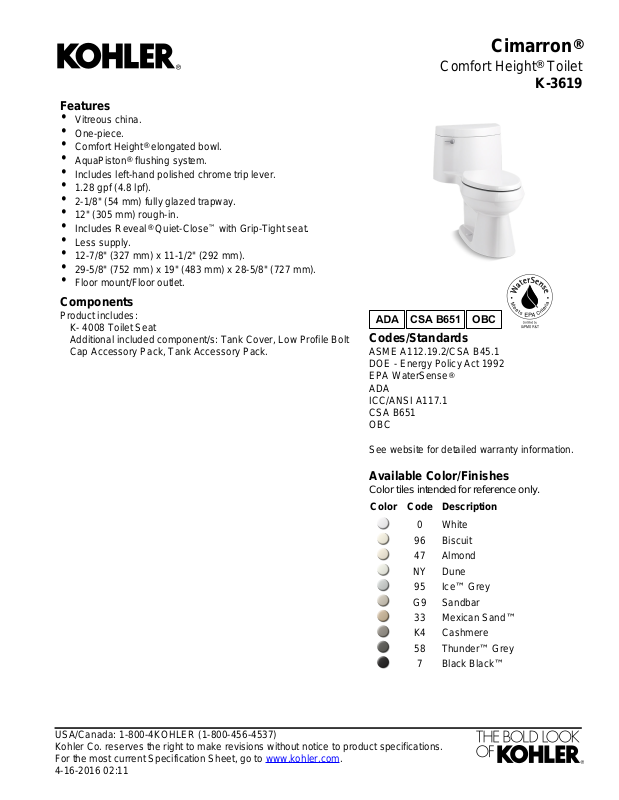

Page 1
Features
CSA B651
OBC
•
Vitreous china.
•
One-piece.
•
Comfort Height® elongated bowl.
•
AquaPiston® flushing system.
•
Includes left-hand polished chrome trip lever.
•
1.28 gpf (4.8 lpf).
•
2-1/8" (54 mm) fully glazed trapway.
•
12" (305 mm) rough-in.
•
Includes Reveal® Quiet-Close™ with Grip-Tight seat.
•
Less supply.
•
12-7/8" (327 mm) x 11-1/2" (292 mm).
•
29-5/8" (752 mm) x 19" (483 mm) x 28-5/8" (727 mm).
•
Floor mount/Floor outlet.
Components
Product includes:
K- 4008 Toilet Seat
Additional included component/s: Tank Cover, Low Profile Bolt
Cap Accessory Pack, Tank Accessory Pack.
Cimarron
Comfort Height® Toilet
Codes/Standards
ASME A112.19.2/CSA B45.1
DOE - Energy Policy Act 1992
EPA WaterSense
ADA
ICC/ANSI A117.1
CSA B651
OBC
®
®
K-3619
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-16-2016 02:11
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
Ice™ Grey95
SandbarG9
Mexican Sand™33
CashmereK4
Thunder™ Grey58
Black Black™7
Page 2
For Back-to-Back Toilet Installations
Cimarron
®
Comfort Height® Toilet
K-3619
Technical Information
All product dimensions are nominal.
One-pieceToilet type:
Elongated frontBowl shape:
AquaPistonFlush type:
2-1/8" (54 mm)Trap passageway:
Water Consumption
1.28 gpf (4.8 lpf)Full:
12-1/2" x 10-1/2" (318 mm x 267 mm)Water surface size:
5-1/2" (139 mm)Rim to water surface:
12" (305 mm)Rough-in:
5-1/2" (140 mm)Seat-mounting holes:
Notes
Install this product according to the installation
guide.
For back-to-back toilet installations: Use only a
45 degree double wye fitting.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
The Model Plumbing Codes require the
installation of elongated open-front toilet seats
on public bathrooms.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-16-2016 02:11
