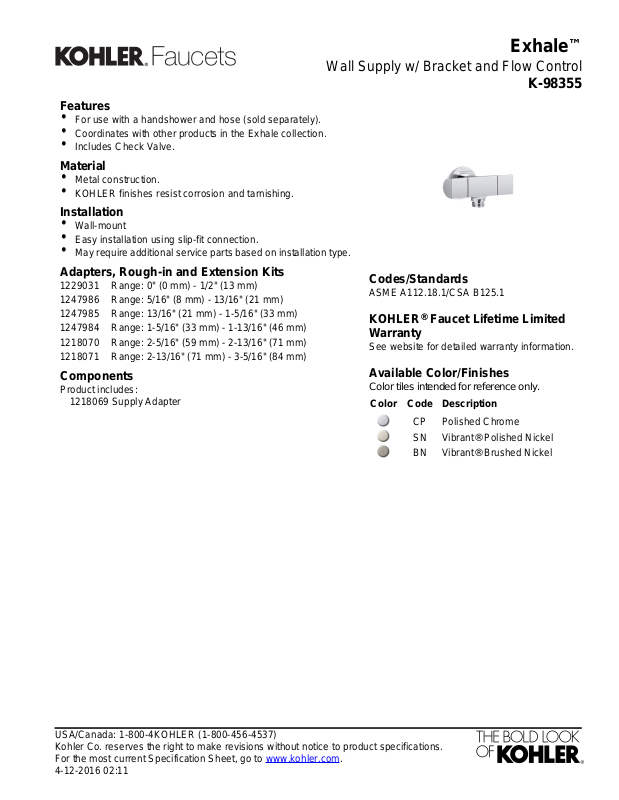

Page 1
Features
•
For use with a handshower and hose (sold separately).
•
Coordinates with other products in the Exhale collection.
•
Includes Check Valve.
Material
•
Metal construction.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Wall-mount
•
Easy installation using slip-fit connection.
•
May require additional service parts based on installation type.
Exhale
™
Wall Supply w/ Bracket and Flow Control
K-98355
Adapters, Rough-in and Extension Kits
Range: 0" (0 mm) - 1/2" (13 mm)1229031
Range: 5/16" (8 mm) - 13/16" (21 mm)1247986
Range: 13/16" (21 mm) - 1-5/16" (33 mm)1247985
Range: 1-5/16" (33 mm) - 1-13/16" (46 mm)1247984
Range: 2-5/16" (59 mm) - 2-13/16" (71 mm)1218070
Range: 2-13/16" (71 mm) - 3-5/16" (84 mm)1218071
Components
Product includes:
1218069 Supply Adapter
Codes/Standards
ASME A112.18.1/CSA B125.1
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Polished NickelSN
Vibrant® Brushed NickelBN
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-12-2016 02:11
Page 2
2-3/4" (70 mm)
Exhale
™
Wall Supply w/ Bracket and Flow Control
K-98355
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
guide.
If dimension "A" is between 1-13/16" (46 mm)
and 2-5/16" (59 mm) use the included supply
adapter. For the other dimensions, order the
appropriate supply adapter.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-12-2016 02:11
