Page 1
Material
•
Generators are constructed of insulated stainless steel, which
maintains the temperature while ensuring the case is safe to
the touch.
Technology
•
Fast-Response® technology produces a luxurious steam shower
in 60 seconds.
•
Power Clean™ technology offers one-touch automatic cleaning
and safe maintenance.
•
Constant Steam produces steam at a consistent rate, which
greatly minimizes temperature fluctuations.
Installation
•
894 cubic feet maximum volume rating for custom showering
applications.
Required Accessories
5549
K- 5558 Tandem Steam Generator Control Kit
K- 5562 large drain pan
K- 5562 large drain pan
Installed component/s: Terminal block for electrical connections,
and water inlet screen.
Loose component/s: 3/8 C x F Union, 1/2 C x F Union, and 3/8
C x M Union.
Invigoration
26 kW Steam Generator
K-5546
Codes/Standards
UL 499
CSA C22.2 No. 64
KOHLER® Steam Generator Three-Year Limited Warranty
See website for detailed warranty information.
™
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-27-2016 06:17
Page 2

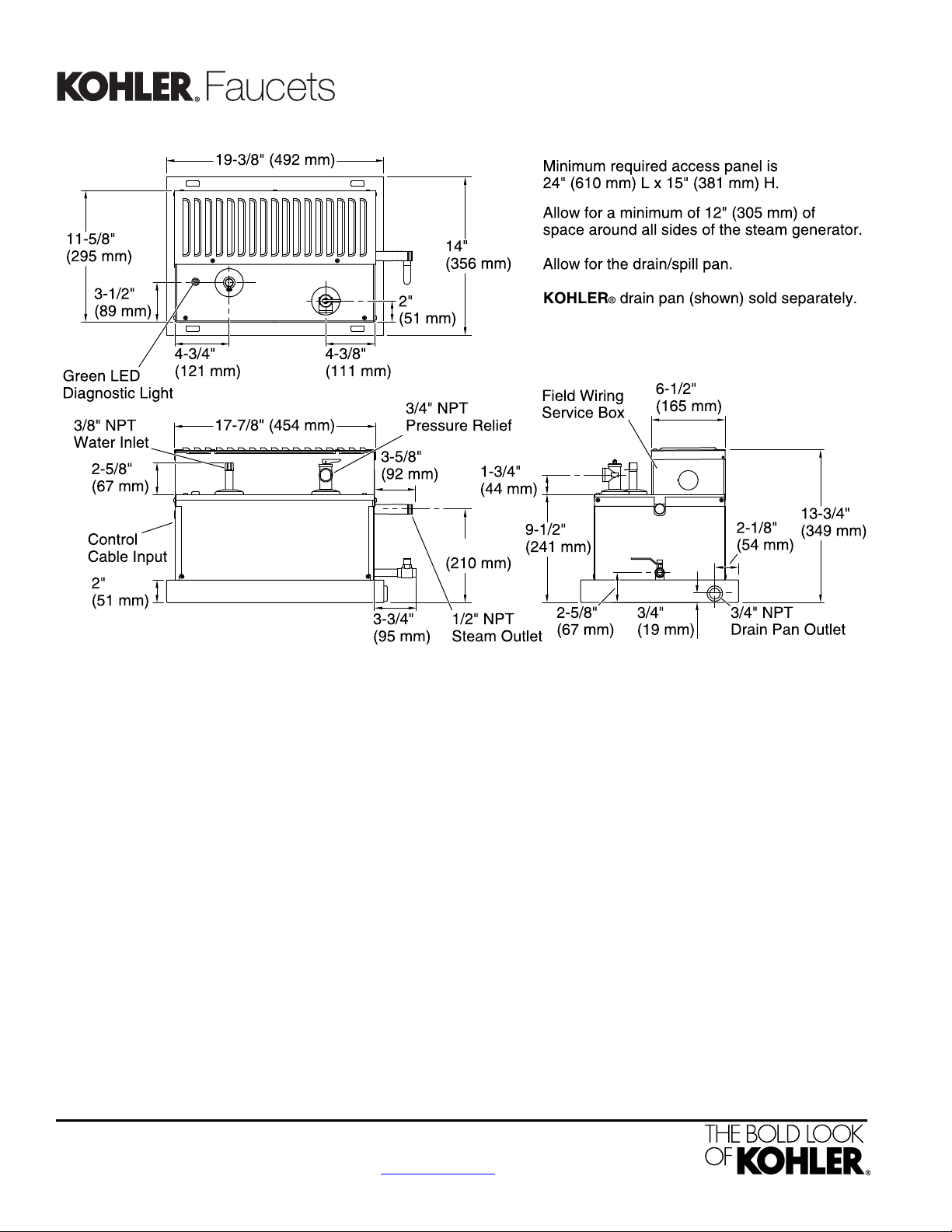

8-1/4"
Invigoration
™
26 kW Steam Generator
K-5546
Required Electrical Service
Two dedicated circuits required.
240 V, 80 A, 60 HzSteam Generator:
240 V, 80 A, 60 HzSteam Generator:
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
guide.
Steam room volume for this generator is 894
cubic feet (25.3 cubic meters).
For every foot of ceiling height over 8 ft (2.4 m),
use the next larger steam unit.
For optimum performance, the steam generator
must be installed within 25 ft (7.62 m) of the
steam head.
Recommended feed water quality should be:
Hardness: 60 ppm (3.4 gpg). Total Alkalinity: 150
ppm (8.8 gpg). To ensure proper operation, the
feed water supply should be tested prior to
operating the steam generator. If feed water
quality is not within the specified limit, contact a
reputable water treatment company for treatment
options.
Maximum inlet pressure is not to exceed 70 psi
(483 kPa).
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-27-2016 06:17
