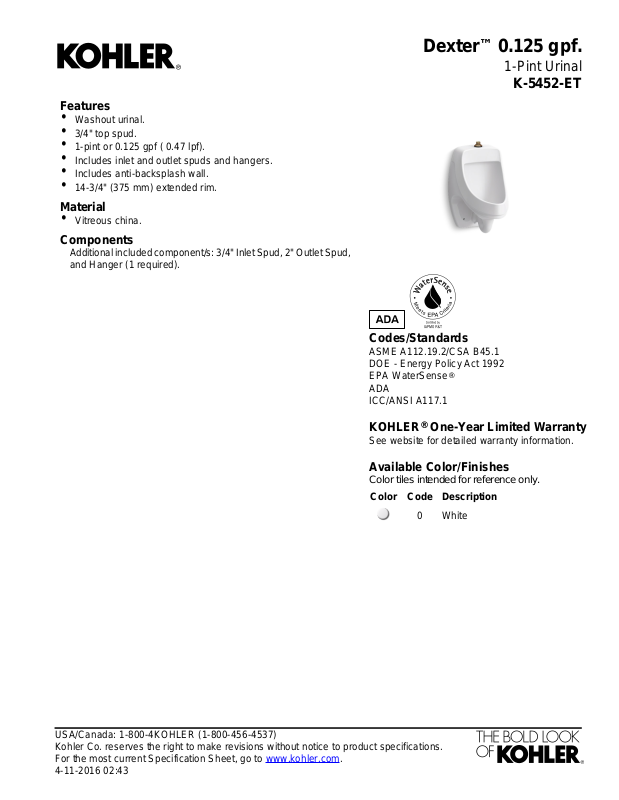

Page 1
Features
•
Washout urinal.
•
3/4" top spud.
•
1-pint or 0.125 gpf ( 0.47 lpf).
•
Includes inlet and outlet spuds and hangers.
•
Includes anti-backsplash wall.
•
14-3/4" (375 mm) extended rim.
Material
•
Vitreous china.
Components
Additional included component/s: 3/4" Inlet Spud, 2" Outlet Spud,
and Hanger (1 required).
Dexter™ 0.125 gpf.
Codes/Standards
ASME A112.19.2/CSA B45.1
DOE - Energy Policy Act 1992
EPA WaterSense
ADA
ICC/ANSI A117.1
®
1-Pint Urinal
K-5452-ET
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-11-2016 02:43
Page 2

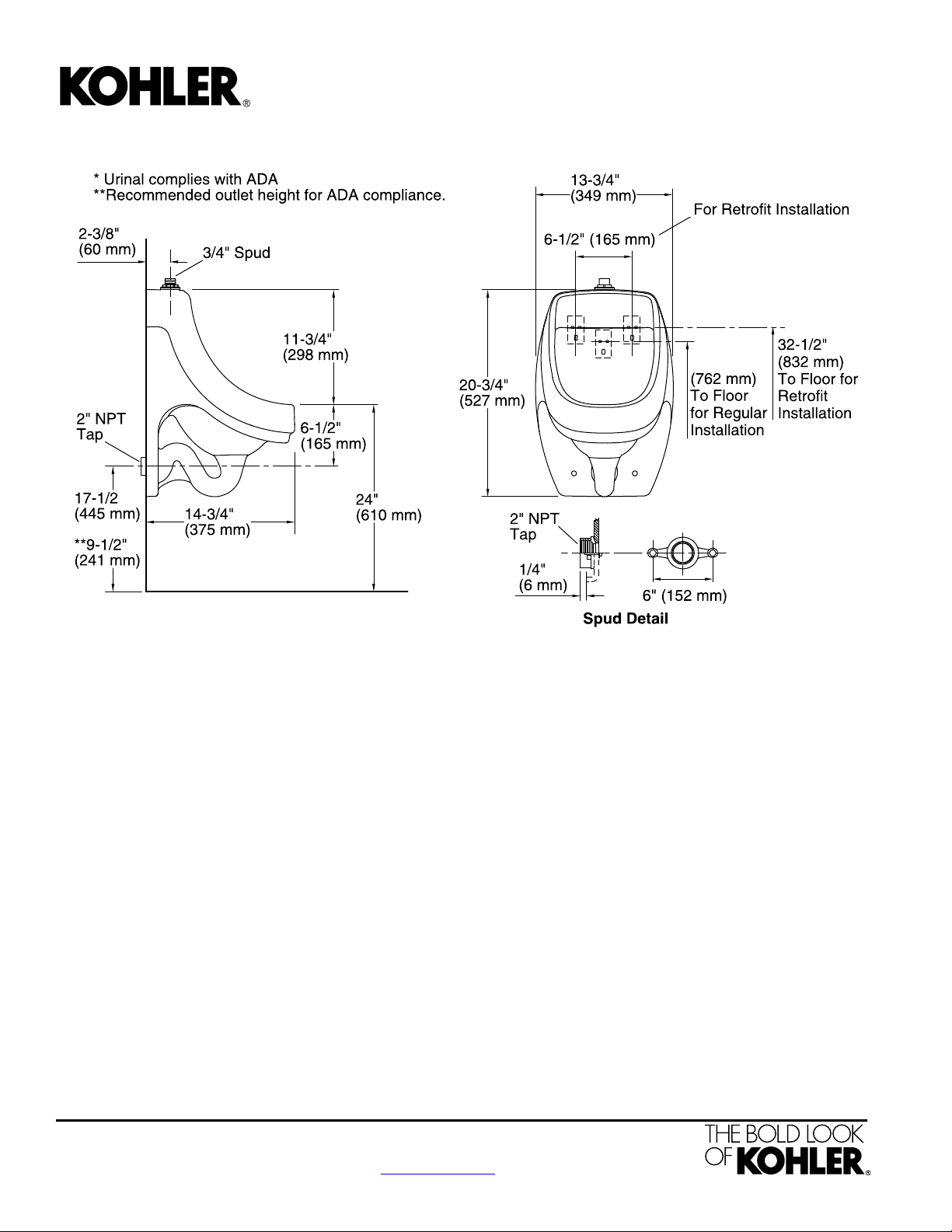

30"
Dexter™ 0.125 gpf.
1-Pint Urinal
K-5452-ET
Technical Information
All product dimensions are nominal.
WashoutFlush outlet
technology:
3/4", Inlet, TopSpud size:
0.125 gal (0.5 L)Min. Water per Flush:
0.125 gal (0.5 L)Max. Water per Flush:
Designed for the above water use when installed with a
water-saving flushometer.
Pressure and Supply Requirements
25 psi (172.4 kPa)Fixture pressure min
(static):
80 psi (551.6 kPa)Fixture pressure max
(static):
Notes
Designed only for use with a 0.125 gpf (0.5 lpf)
flushometer.
Install this product according to the installation
instructions.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-11-2016 02:43
