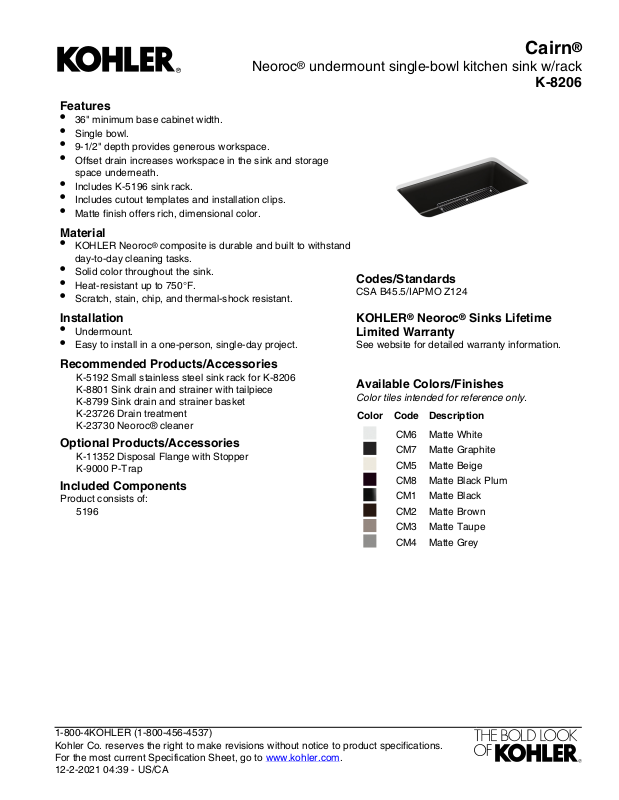

Page 1
Cairn
Features
•
36" minimum base cabinet width.
•
Single bowl.
•
9-1/2" depth provides generous workspace.
•
Offset drain increases workspace in the sink and storage
space underneath.
•
Includes K-5196 sink rack.
•
Includes cutout templates and installation clips.
•
Matte finish offers rich, dimensional color.
Material
•
KOHLER Neoroc® composite is durable and built to withstand
day-to-day cleaning tasks.
•
Solid color throughout the sink.
•
Heat-resistant up to 750°F.
•
Scratch, stain, chip, and thermal-shock resistant.
Installation
•
Undermount.
•
Easy to install in a one-person, single-day project.
Recommended Products/Accessories
K-5192 Small stainless steel sink rack for K-8206
K-8801 Sink drain and strainer with tailpiece
K-8799 Sink drain and strainer basket
K-23726 Drain treatment
K-23730 Neoroc® cleaner
Optional Products/Accessories
K-11352 Disposal Flange with Stopper
K-9000 P-Trap
Included Components
Product consists of:
5196
Codes/Standards
CSA B45.5/IAPMO Z124
KOHLER® Neoroc® Sinks Lifetime
Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CM6 Matte White
CM7 Matte Graphite
CM5 Matte Beige
CM8 Matte Black Plum
CM1 Matte Black
CM2 Matte Brown
CM3 Matte Taupe
CM4 Matte Grey
®
Neoroc® undermount single-bowl kitchen sink w/rack
K-8206
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
12-2-2021 04:39 - US/CA
Page 2
Cairn
15-1/2"
(394 mm)
1-1/2" OD
1/2"
(13 mm)
10-1/8"
(257 mm)
9-1/8"
(232 mm)
18-5/16"
(465 mm)
6-13/16"
(173 mm)
33-1/2" (851 mm)
11/16"
(17 mm)
9-1/2"
(241 mm)
Technical Information
All product dimensions are nominal.
Bowl configuration: Single
Installation: Under-mount
Min. base cabinet
width:
36" (914 mm)
Bowl area (Only): Length: 30-9/16" (777 mm)
Width: 15-3/8" (391 mm)
Bowl depth: 9-1/2" (241 mm)
Water depth: 9-1/2" (241 mm)
Drain hole: 3-7/8" (98 mm)
Template: 1256394-7, required, included
Notes
Install this product according to the installation
instructions.
Allow a minimum of 2" (51 mm) clearance
around the sink rim for clip attachment.
®
Neoroc® undermount single-bowl kitchen sink w/rack
K-8206
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
12-2-2021 04:39 - US/CA
