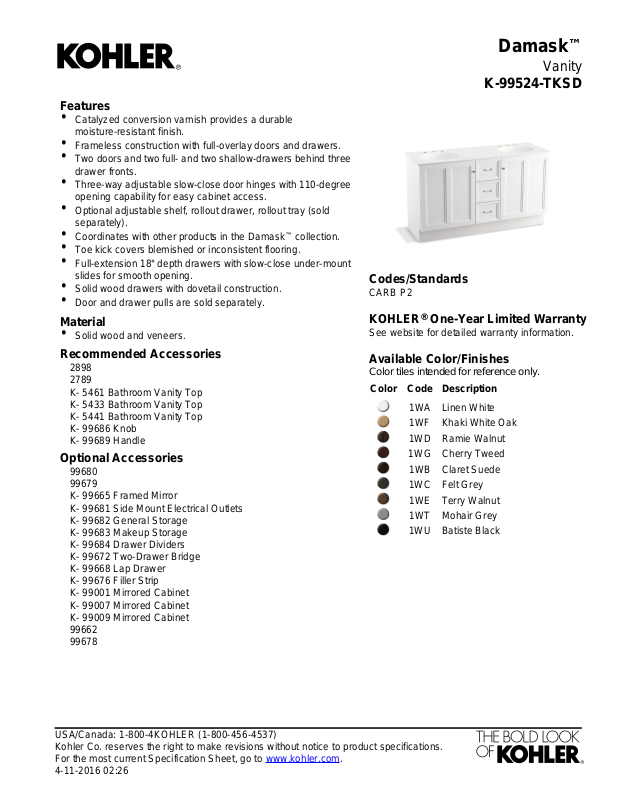

Page 1
Features
•
Catalyzed conversion varnish provides a durable
moisture-resistant finish.
•
Frameless construction with full-overlay doors and drawers.
•
Two doors and two full- and two shallow-drawers behind three
drawer fronts.
•
Three-way adjustable slow-close door hinges with 110-degree
opening capability for easy cabinet access.
•
Optional adjustable shelf, rollout drawer, rollout tray (sold
separately).
•
Coordinates with other products in the Damask™ collection.
•
Toe kick covers blemished or inconsistent flooring.
•
Full-extension 18" depth drawers with slow-close under-mount
slides for smooth opening.
•
Solid wood drawers with dovetail construction.
•
Door and drawer pulls are sold separately.
Material
•
Solid wood and veneers.
Damask
™
Vanity
K-99524-TKSD
Codes/Standards
CARB P2
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Recommended Accessories
2898
2789
K- 5461 Bathroom Vanity Top
K- 5433 Bathroom Vanity Top
K- 5441 Bathroom Vanity Top
K- 99686 Knob
K- 99689 Handle
Optional Accessories
99680
99679
K- 99665 Framed Mirror
K- 99681 Side Mount Electrical Outlets
K- 99682 General Storage
K- 99683 Makeup Storage
K- 99684 Drawer Dividers
K- 99672 Two-Drawer Bridge
K- 99668 Lap Drawer
K- 99676 Filler Strip
K- 99001 Mirrored Cabinet
K- 99007 Mirrored Cabinet
K- 99009 Mirrored Cabinet
99662
99678
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Linen White1WA
Khaki White Oak1WF
Ramie Walnut1WD
Cherry Tweed1WG
Claret Suede1WB
Felt Grey1WC
Terry Walnut1WE
Mohair Grey1WT
Batiste Black1WU
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-11-2016 02:26
Page 2
9" (229 mm)
Damask
™
Vanity
K-99524-TKSD

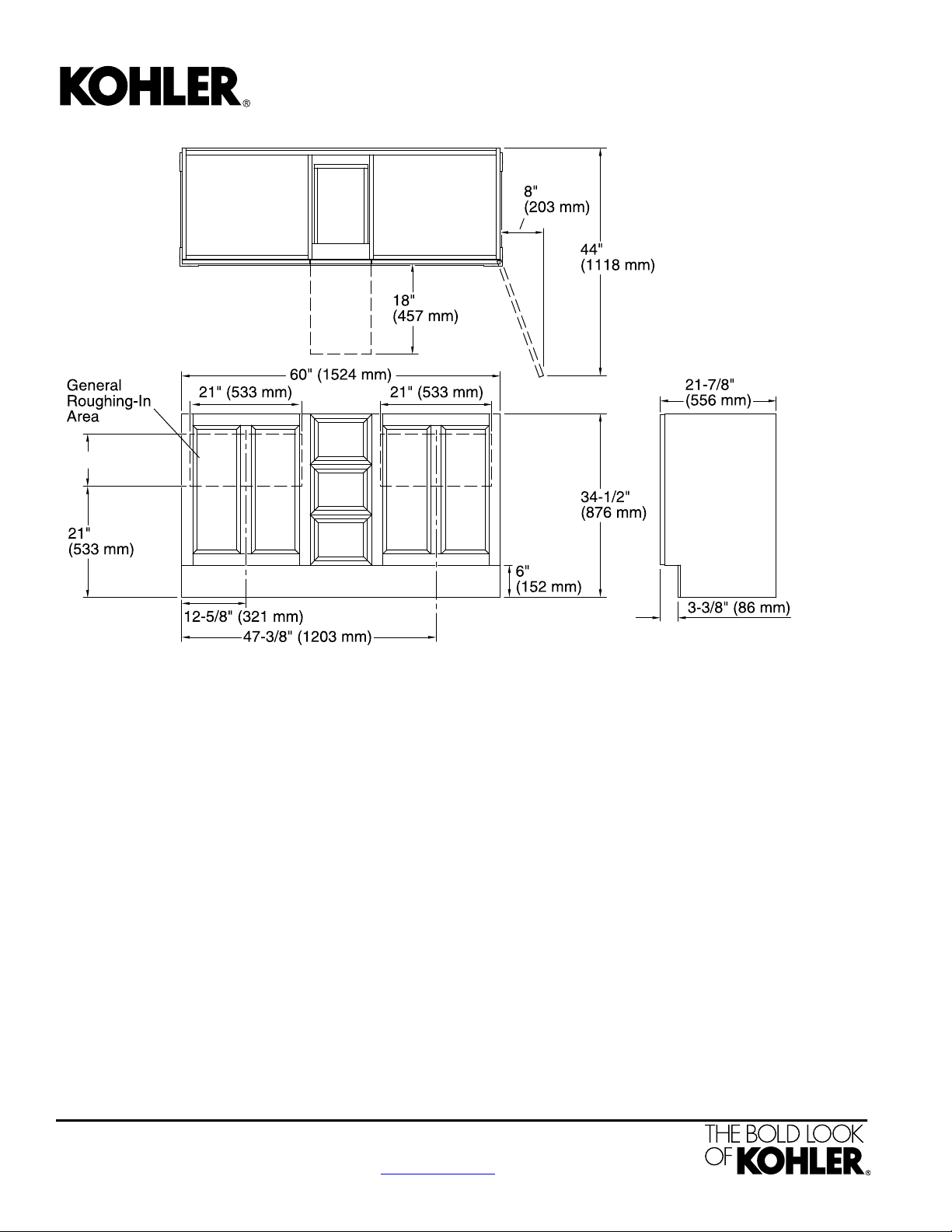

Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
StandardVanity type:
guide.
Decorative cabinet hardware is not supplied.
Refer to the KOHLER bath accessories line for
recommended cabinet hardware to complement
your vanity.
Select the type of fastener based upon the wall
material. Two 250 lb (113.4 kg) minimum load
bearing fasteners are recommended.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-11-2016 02:26
