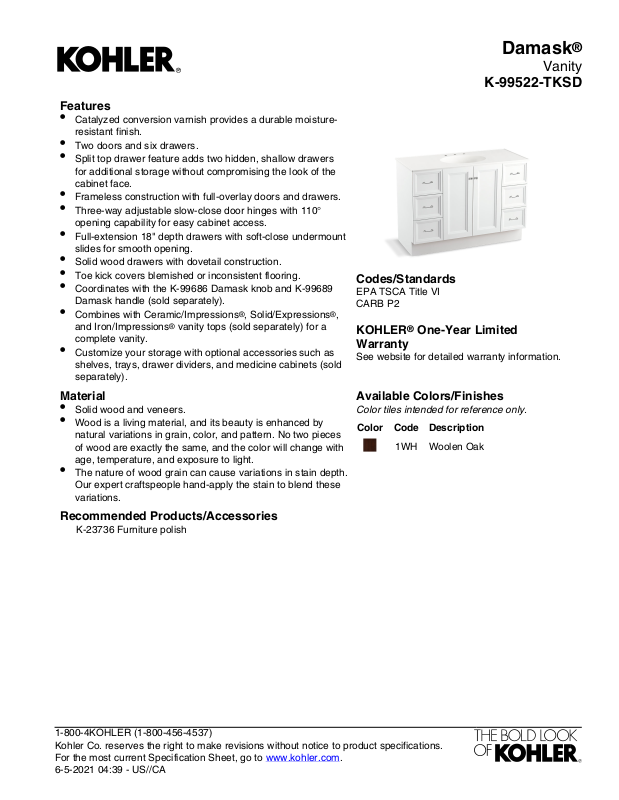

Page 1
Damask
Features
•
Catalyzed conversion varnish provides a durable moistureresistant finish.
•
Two doors and six drawers.
•
Split top drawer feature adds two hidden, shallow drawers
for additional storage without compromising the look of the
cabinet face.
•
Frameless construction with full-overlay doors and drawers.
•
Three-way adjustable slow-close door hinges with 110°
opening capability for easy cabinet access.
•
Full-extension 18" depth drawers with soft-close undermount
slides for smooth opening.
•
Solid wood drawers with dovetail construction.
•
Toe kick covers blemished or inconsistent flooring.
•
Coordinates with the K-99686 Damask knob and K-99689
Damask handle (sold separately).
•
Combines with Ceramic/Impressions®, Solid/Expressions®,
and Iron/Impressions® vanity tops (sold separately) for a
complete vanity.
•
Customize your storage with optional accessories such as
shelves, trays, drawer dividers, and medicine cabinets (sold
separately).
Material
•
Solid wood and veneers.
•
Wood is a living material, and its beauty is enhanced by
natural variations in grain, color, and pattern. No two pieces
of wood are exactly the same, and the color will change with
age, temperature, and exposure to light.
•
The nature of wood grain can cause variations in stain depth.
Our expert craftspeople hand-apply the stain to blend these
variations.
Recommended Products/Accessories
K-23736 Furniture polish
Codes/Standards
EPA TSCA Title VI
CARB P2
KOHLER® One-Year Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
1WH Woolen Oak
®
Vanity
K-99522-TKSD
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-5-2021 04:39 - US//CA
Page 2
Damask
9" (229 mm)
21"
(533 mm)
24"
(610 mm)
22"
(559 mm)
6"
(152 mm)
3-3/8" (86 mm)
General
Roughing-In
Area
34"
(864 mm)
48" (1219 mm)
34-1/2"
(876 mm)
21-7/8"
(556 mm)
18"
(457 mm)
Technical Information
All product dimensions are nominal.
Vanity type: Standard
Notes
Install this product according to the installation
guide.
Decorative cabinet hardware is not supplied.
Refer to the KOHLER bath accessories line for
recommended cabinet hardware to complement
your vanity.
Select the type of fastener based upon the wall
material. Two 250 lb (113.4 kg) minimum load
bearing fasteners are recommended.
®
Vanity
K-99522-TKSD
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-5-2021 04:39 - US//CA
