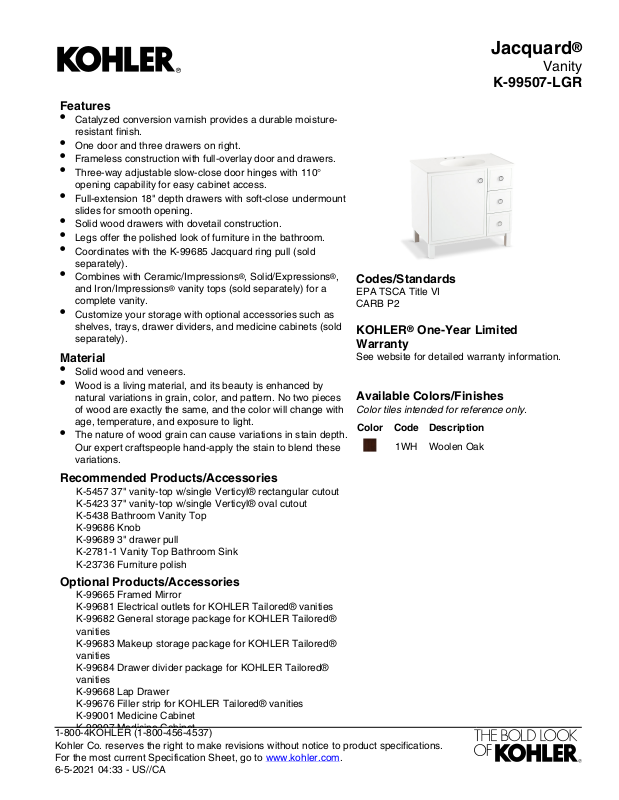

Page 1
Features
•
Catalyzed conversion varnish provides a durable moistureresistant finish.
•
One door and three drawers on right.
•
Frameless construction with full-overlay door and drawers.
•
Three-way adjustable slow-close door hinges with 110°
opening capability for easy cabinet access.
•
Full-extension 18" depth drawers with soft-close undermount
slides for smooth opening.
•
Solid wood drawers with dovetail construction.
•
Legs offer the polished look of furniture in the bathroom.
•
Coordinates with the K-99685 Jacquard ring pull (sold
separately).
•
Combines with Ceramic/Impressions®, Solid/Expressions®,
and Iron/Impressions® vanity tops (sold separately) for a
complete vanity.
•
Customize your storage with optional accessories such as
shelves, trays, drawer dividers, and medicine cabinets (sold
separately).
Material
•
Solid wood and veneers.
•
Wood is a living material, and its beauty is enhanced by
natural variations in grain, color, and pattern. No two pieces
of wood are exactly the same, and the color will change with
age, temperature, and exposure to light.
•
The nature of wood grain can cause variations in stain depth.
Our expert craftspeople hand-apply the stain to blend these
variations.
Recommended Products/Accessories
K-5457 37" vanity-top w/single Verticyl® rectangular cutout
K-5423 37" vanity-top w/single Verticyl® oval cutout
K-5438 Bathroom Vanity Top
K-99686 Knob
K-99689 3" drawer pull
K-2781-1 Vanity Top Bathroom Sink
K-23736 Furniture polish
Optional Products/Accessories
K-99665 Framed Mirror
K-99681 Electrical outlets for KOHLER Tailored® vanities
K-99682 General storage package for KOHLER Tailored®
vanities
K-99683 Makeup storage package for KOHLER Tailored®
vanities
K-99684 Drawer divider package for KOHLER Tailored®
vanities
K-99668 Lap Drawer
K-99676 Filler strip for KOHLER Tailored® vanities
K-99001 Medicine Cabinet
Codes/Standards
EPA TSCA Title VI
CARB P2
KOHLER® One-Year Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
1WH Woolen Oak
Jacquard
K-99507-LGR
®
Vanity
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-5-2021 04:33 - US//CA
Page 2
Jacquard
12-1/4" (311 mm)
21" (533 mm)
21"
(533 mm)
6"
(152 mm)
9" (229 mm)
General
Roughing-In Area
21-7/8"
(556 mm)
7/8"
(22 mm)
18"
(457 mm)
36" (914 mm)
44"
(1118 mm)
8"
(203 mm)
34-1/2"
(876 mm)
Technical Information
All product dimensions are nominal.
Vanity type: Standard
Notes
Install this product according to the installation
guide.
Decorative cabinet hardware is not supplied.
Refer to the KOHLER bath accessories line for
recommended cabinet hardware to complement
your vanity.
Select the type of fastener based upon the wall
material. Two 250 lb (113.4 kg) minimum load
bearing fasteners are recommended.
Vanity
K-99507-LGR
®
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-5-2021 04:33 - US//CA
