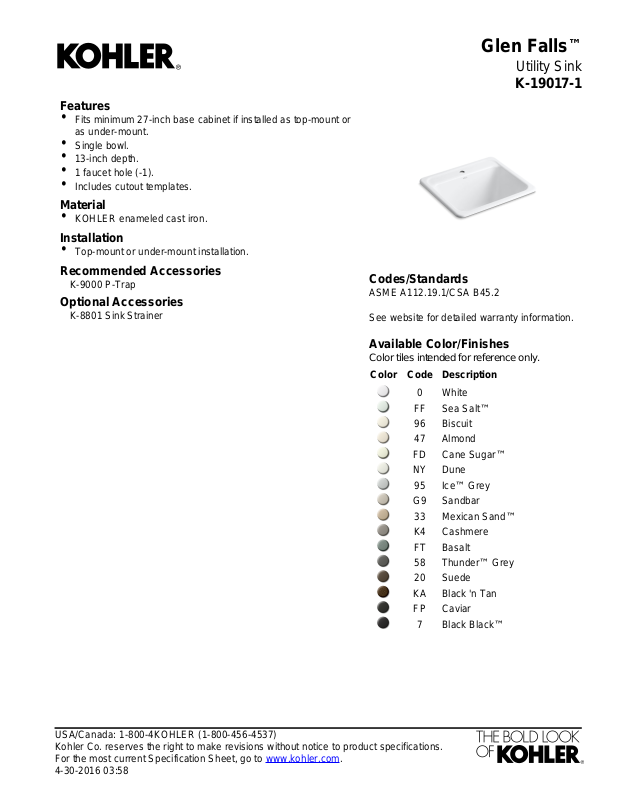

Page 1
Features
•
Fits minimum 27-inch base cabinet if installed as top-mount or
as under-mount.
•
Single bowl.
•
13-inch depth.
•
1 faucet hole (-1).
•
Includes cutout templates.
Material
•
KOHLER enameled cast iron.
Installation
•
Top-mount or under-mount installation.
Glen Falls
Utility Sink
K-19017-1
™
Recommended Accessories
K-9000 P-Trap
Optional Accessories
K-8801 Sink Strainer
Codes/Standards
ASME A112.19.1/CSA B45.2
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Sea Salt™FF
Biscuit96
Almond47
Cane Sugar™FD
DuneNY
Ice™ Grey95
SandbarG9
Mexican Sand™33
CashmereK4
BasaltFT
Thunder™ Grey58
Suede20
Black 'n TanKA
CaviarFP
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-30-2016 03:58
Page 2
12-1/2"
Glen Falls
Utility Sink
K-19017-1
™

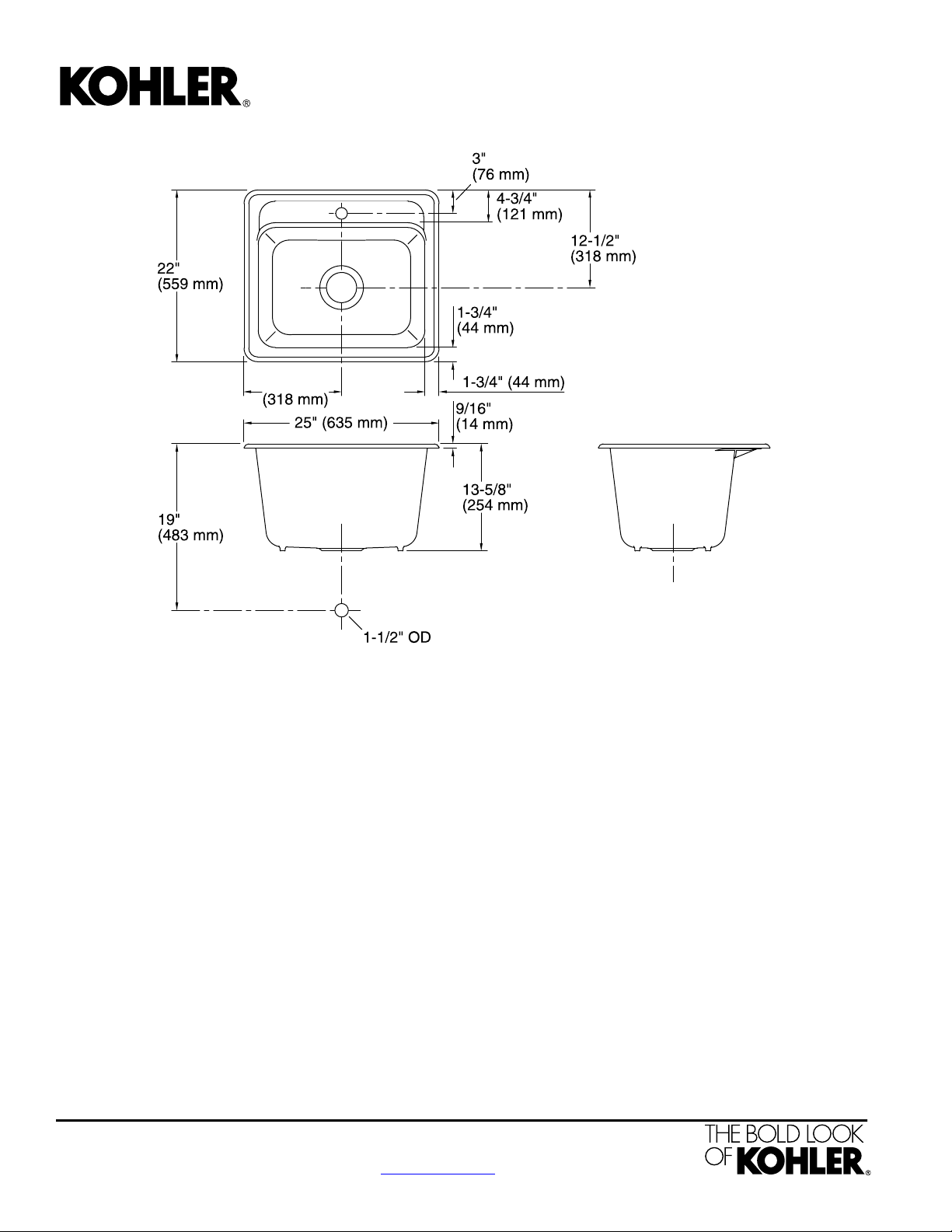

Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Top-mount, Under-mountInstallation:
27" (686 mm)Min. base cabinet
width:
Bowl area
Template:
Length: 21-1/2" (546 mm)
Width: 15-1/2" (394 mm)
Bowl depth: 13" (330 mm)
Water depth: 13" (330 mm)
1Number of deck holes:
1-3/8" (35 mm)Faucet hole(s):
3-7/8" (98 mm)Drain hole:
Top-mount/Under-mount, 1079983-7,
required, included
Notes
Install this product according to the installation
instructions.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-30-2016 03:58
