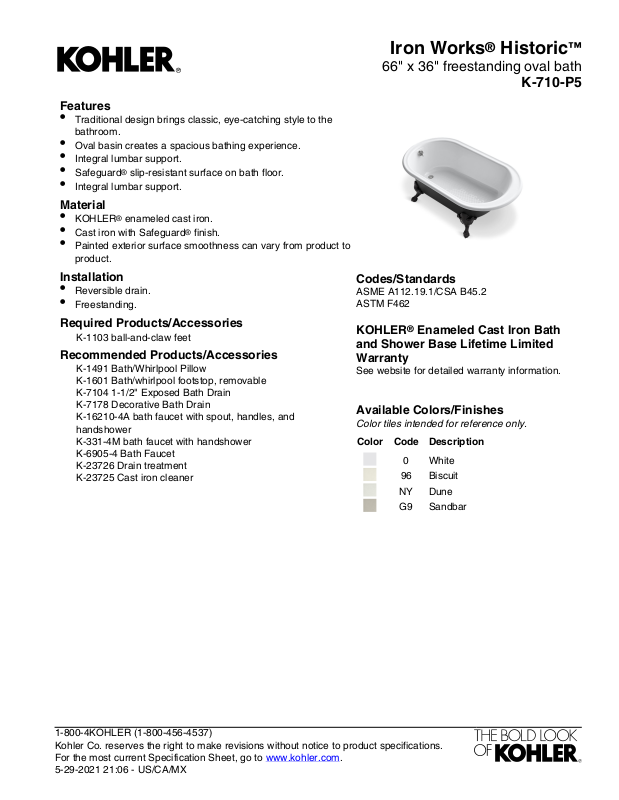

Page 1
Iron Works® Historic
Features
•
Traditional design brings classic, eye-catching style to the
bathroom.
•
Oval basin creates a spacious bathing experience.
•
Integral lumbar support.
•
Safeguard® slip-resistant surface on bath floor.
•
Integral lumbar support.
Material
•
KOHLER® enameled cast iron.
•
Cast iron with Safeguard® finish.
•
Painted exterior surface smoothness can vary from product to
product.
Installation
•
Reversible drain.
•
Freestanding.
Required Products/Accessories
K-1103 ball-and-claw feet
Recommended Products/Accessories
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-7104 1-1/2" Exposed Bath Drain
K-7178 Decorative Bath Drain
K-16210-4A bath faucet with spout, handles, and
handshower
K-331-4M bath faucet with handshower
K-6905-4 Bath Faucet
K-23726 Drain treatment
K-23725 Cast iron cleaner
Codes/Standards
ASME A112.19.1/CSA B45.2
ASTM F462
KOHLER® Enameled Cast Iron Bath
and Shower Base Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit
NY Dune
G9 Sandbar
™
66" x 36" freestanding oval bath
K-710-P5
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 21:06 - US/CA/MX
Page 2
Iron Works® Historic
18"
(457 mm)
2-11/16"
(68 mm)
Lumbar
Angle 27°
No change in measurements if connected with drain
illustrated. (K-7178)
36" (914 mm)
23-1/2"
(597 mm)
24-1/2"
(622 mm)
14"
(356 mm)
28"
(711 mm)
1-1/2"
Bath Drain
66" (1676 mm)
9-11/16"
(246 mm)
3-3/4"
(95 mm)
2-7/8"
(73 mm)
3" (76 mm)
1-3/4"
(44 mm)
1" (25 mm)
37" (940 mm)
Technical Information
All product dimensions are nominal.
Installation: Freestanding
Drain location: End
Basin area, bottom: 47-1/2" x 25" (1207 mm x 635 mm)
Basin area, top: 55" x 29" (1397 mm x 737 mm)
Weight: 350 lbs (158.8 kg)
Minimum floor load: 57 lbs/ft² (278.3 kg/m²)
Water depth: 12-5/8" (321 mm)
Water capacity: 64 gal (242.3 L)
Notes
Measure your actual product for rough-in
details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
™
66" x 36" freestanding oval bath
K-710-P5
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 21:06 - US/CA/MX
