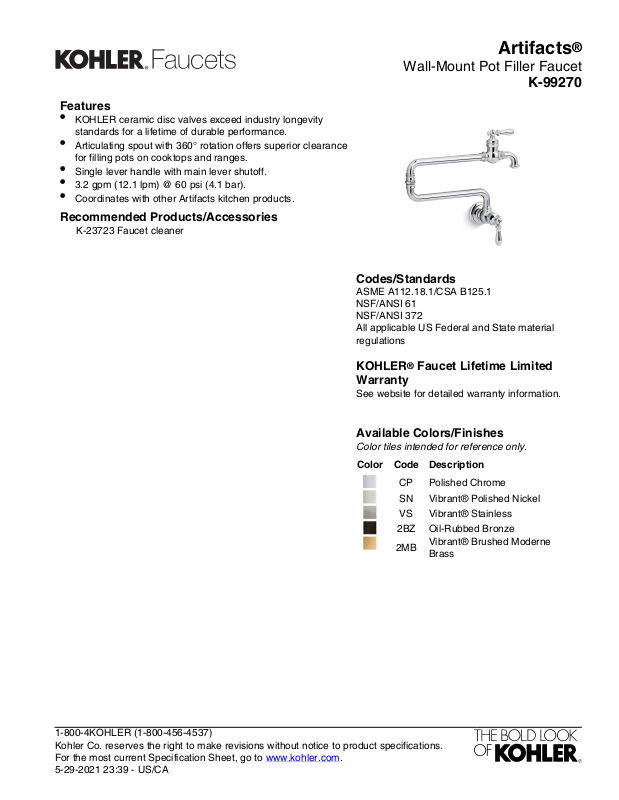

Page 1
Artifacts
Features
•
KOHLER ceramic disc valves exceed industry longevity
standards for a lifetime of durable performance.
•
Articulating spout with 360° rotation offers superior clearance
for filling pots on cooktops and ranges.
•
Single lever handle with main lever shutoff.
•
3.2 gpm (12.1 lpm) @ 60 psi (4.1 bar).
•
Coordinates with other Artifacts kitchen products.
Recommended Products/Accessories
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
VS Vibrant® Stainless
2BZ Oil-Rubbed Bronze
2MB
Vibrant® Brushed Moderne
Brass
®
Wall-Mount Pot Filler Faucet
K-99270
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 23:39 - US/CA
Page 2
Artifacts
Ø 2-11/16"
(68 mm)
2-3/4"
(70 mm)
12-13/16" (325 mm)
5-1/8"
(130 mm)
2-5/8"
(67 mm)
9-5/8"
(244 mm)
Ø 1-3/16"
(30 mm)
9-1/4" (235 mm)
5-3/8" (137 mm) Max
4-3/8" (111 mm) Min
1/2" NPT
2-3/4"
(70 mm)
Technical Information
All product dimensions are nominal.
Faucet:
Flow rate: 3.2 gal/min (12.1 l/min)
Pressure: 60 psi (4.1 bar)
Spout:
Spout reach: 22" (559 mm)
Notes
Install this product according to the installation
guide.
®
Wall-Mount Pot Filler Faucet
K-99270
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 23:39 - US/CA
