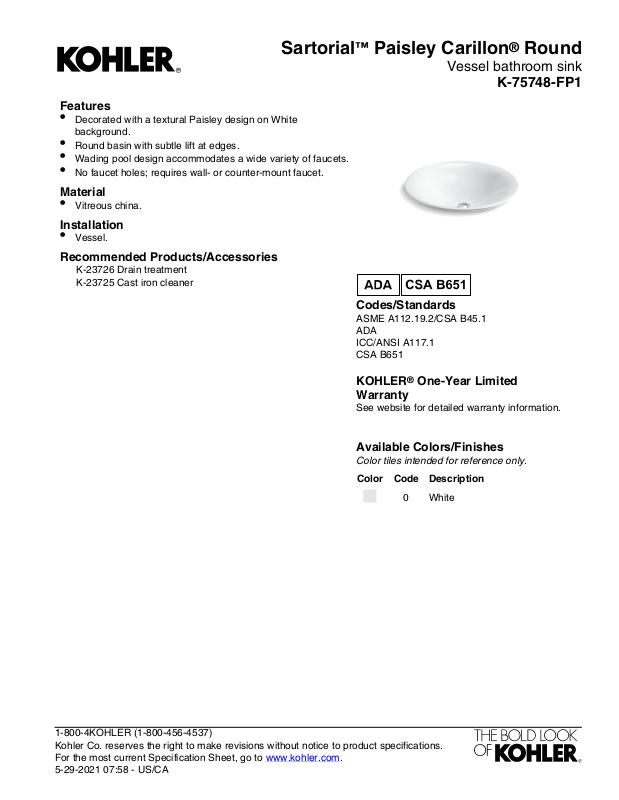

Page 1
Sartorial™ Paisley Carillon® Round
Features
•
Decorated with a textural Paisley design on White
background.
•
Round basin with subtle lift at edges.
•
Wading pool design accommodates a wide variety of faucets.
•
No faucet holes; requires wall- or counter-mount faucet.
Material
•
Vitreous china.
Installation
•
Vessel.
Recommended Products/Accessories
K-23726 Drain treatment
K-23725 Cast iron cleaner
Codes/Standards
ASME A112.19.2/CSA B45.1
ADA
ICC/ANSI A117.1
CSA B651
KOHLER® One-Year Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
Vessel bathroom sink
K-75748-FP1
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 07:58 - US/CA
Page 2
Sartorial™ Paisley Carillon® Round
3/4"
(19 mm)
6"
(152 mm)
Ø 17-11/16" (449 mm)
Recommended ADA Installation
24" (610 mm)
2" (51 mm)
9"
(229 mm)
Min
11" (279 mm)
8"
(203 mm)
Min
27"
(686 mm)
Min
34"
(864 mm)
4" (102 mm)
3/8" Hot
3/8" Cold
1-1/4" OD
14"
(356 mm)
11-5/8"
(295 mm)
Standard Installation
Technical Information
All product dimensions are nominal.
Bowl configuration: Single
Installation: Drop-in, Vessel
Bowl area (Only): Diameter: 17-11/16" (449 mm)
Bowl depth: 4" (102 mm)
Water depth: 4" (102 mm)
Template: 1242827, required, included
Notes
Install this product according to the installation
instructions.
ADA, CSA B651 compliant when installed to
the specific requirements of these regulations.
Vessel bathroom sink
K-75748-FP1
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 07:58 - US/CA
