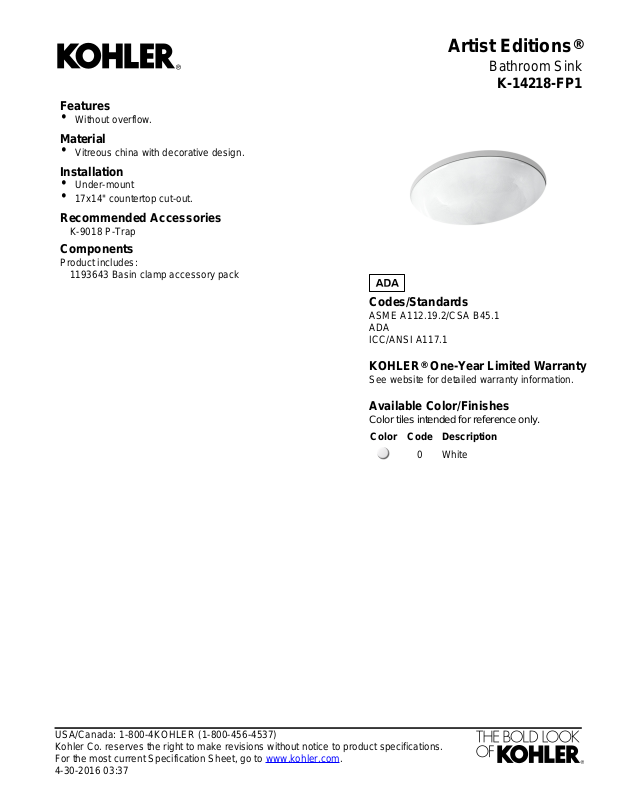

Page 1
Features
•
Without overflow.
Material
•
Vitreous china with decorative design.
Installation
•
Under-mount
•
17x14" countertop cut-out.
Recommended Accessories
K-9018 P-Trap
Components
Product includes:
1193643 Basin clamp accessory pack
Artist Editions
Bathroom Sink
Codes/Standards
ASME A112.19.2/CSA B45.1
ADA
ICC/ANSI A117.1
®
K-14218-FP1
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-30-2016 03:37
Page 2

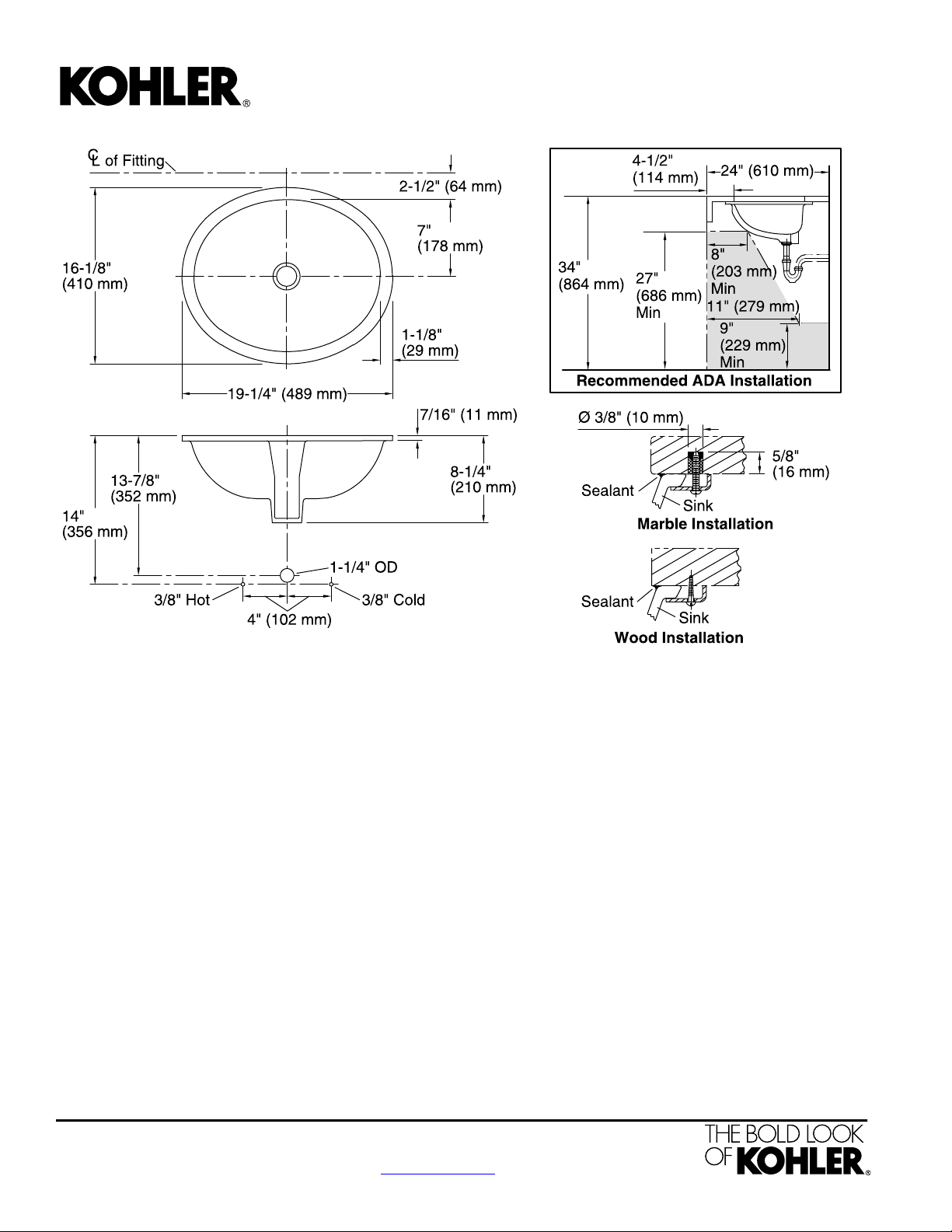

Standard Installation
Artist Editions
Bathroom Sink
K-14218-FP1
®
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Under-mountInstallation:
Bowl area (Only)
Template:
Length: 17" (432 mm)
Width: 14" (356 mm)
Water depth: 6-3/8" (162 mm)
1-3/4" (44 mm)Drain hole:
Under-mount, 1151011-7, required,
included
Notes
Install this product according to the installation
instructions.
NOTICE: Countertop manufacturer or cutter must
use the current product template available at
www.kohler.com, or by calling 1-800-4KOHLER.
Kohler Co. is not responsible for cutout errors
when the incorrect cutout template is used.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-30-2016 03:37
