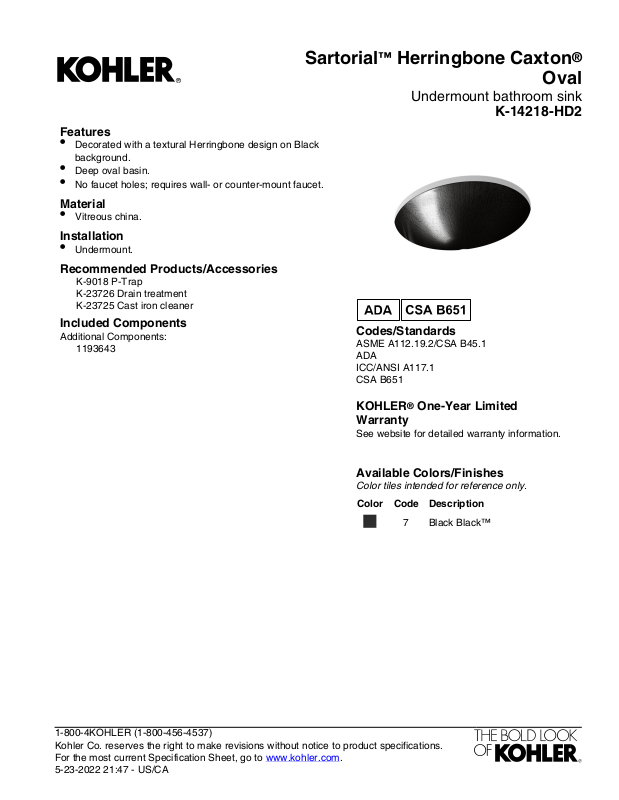

Page 1
Sartorial™ Herringbone Caxton
Features
•
Decorated with a textural Herringbone design on Black
background.
•
Deep oval basin.
•
No faucet holes; requires wall- or counter-mount faucet.
Material
•
Vitreous china.
Installation
•
Undermount.
Recommended Products/Accessories
K-9018 P-Trap
K-23726 Drain treatment
K-23725 Cast iron cleaner
Included Components
Additional Components:
1193643
Codes/Standards
ASME A112.19.2/CSA B45.1
ADA
ICC/ANSI A117.1
CSA B651
KOHLER® One-Year Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
7 Black Black™
Oval
Undermount bathroom sink
K-14218-HD2
®
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-23-2022 21:47 - US/CA
Page 2
Sartorial™ Herringbone Caxton
Standard Installation
4-1/2"
(114 mm)
9"
(229 mm)
Min
11" (279 mm)
8"
(203 mm)
Min
27"
(686 mm)
Min
34"
(864 mm)
24" (610 mm)
Recommended ADA Installation
7"
(178 mm)
16-1/8"
(410 mm)
8-3/16"
(208 mm)
14"
(356 mm)
13-7/8"
(352 mm)
4" (102 mm)
3/8" Cold
3/8" Hot
LCof Fitting
1-1/4" OD
7/16"
(11 mm)
19-3/16" (487 mm)
1-1/8"
(29 mm)
2-1/2" (64 mm)
5/8"
(16 mm)
Ø 3/8" (10 mm)
Sealant
Marble Installation
Sink
Sealant
Wood Counter Installation
Sink
Technical Information
All product dimensions are nominal.
Bowl configuration: Single
Installation: Undermount
Bowl area (Only): Length: 17" (432 mm)
Width: 14" (356 mm)
Water depth: 6-3/8" (162 mm)
Drain hole: 1-3/4" (44 mm)
Template: 1151011-7, required, included
Notes
Install this product according to the installation
instructions.
NOTICE: Countertop manufacturer or cutter
must use the current product template
available at www.kohler.com, or by calling
1-800-4KOHLER. Kohler Co. is not responsible
for cutout errors when the incorrect cutout
template is used.
ADA, CSA B651 compliant when installed to
the specific requirements of these regulations.
Oval
Undermount bathroom sink
K-14218-HD2
®
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-23-2022 21:47 - US/CA
