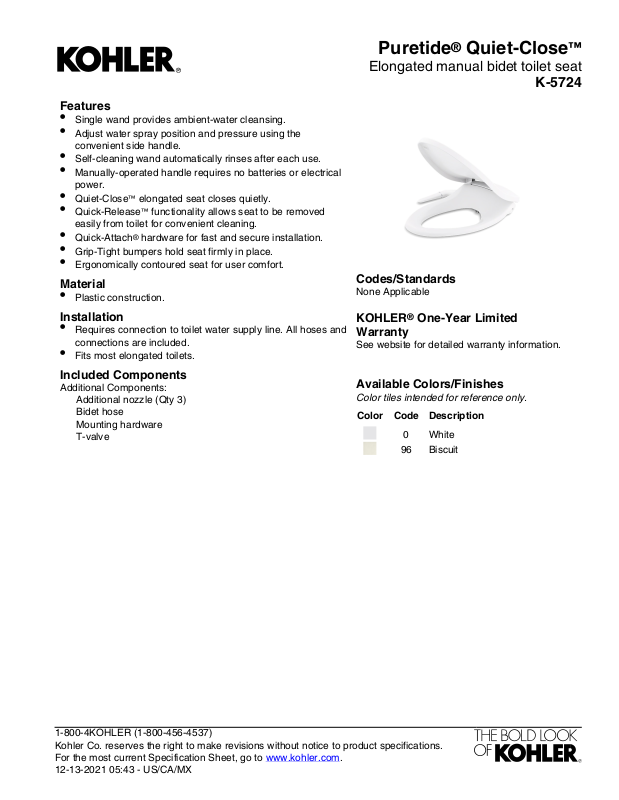

Page 1
Puretide® Quiet-Close
Features
•
Single wand provides ambient-water cleansing.
•
Adjust water spray position and pressure using the
convenient side handle.
•
Self-cleaning wand automatically rinses after each use.
•
Manually-operated handle requires no batteries or electrical
power.
•
Quiet-Close™ elongated seat closes quietly.
•
Quick-Release™ functionality allows seat to be removed
easily from toilet for convenient cleaning.
•
Quick-Attach® hardware for fast and secure installation.
•
Grip-Tight bumpers hold seat firmly in place.
•
Ergonomically contoured seat for user comfort.
Material
•
Plastic construction.
Installation
•
Requires connection to toilet water supply line. All hoses and
connections are included.
•
Fits most elongated toilets.
Included Components
Additional Components:
Additional nozzle (Qty 3)
Bidet hose
Mounting hardware
T-valve
Codes/Standards
None Applicable
KOHLER® One-Year Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit
™
Elongated manual bidet toilet seat
K-5724
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
12-13-2021 05:43 - US/CA/MX
Page 2
Puretide® Quiet-Close
17-11/16" (449 mm)
11-3/4"
(298 mm)
8-1/8"
(206 mm)
4-1/4"
(108 mm)
7/8"
(22 mm)
14-5/16" (364 mm)
18-11/16"
(475 mm)
20-1/2"
(521 mm)
2-1/8"
(54 mm)
Min
13-1/4"
(337 mm)
Min
5-1/2"
(140 mm)
Technical Information
All product dimensions are nominal.
Seat shape type: Elongated
Seat front type: Closed-front
Seat-mounting
holes:
5-1/2" (140 mm)
Notes
Install this product according to the installation
guide.
WARNING: Risk of scalding. High water
temperature can cause severe burns. Do not
connect this device to a water supply with a
maximum temperature above 104°F ( 40°C).
Only connect the seat to a cold water supply of
drinking quality water at a pressure of 20 (139
kPa) - 80 psi (551 kPa).
Locate the recepticle at least 6" (152 mm)
above the floor, and within a 32" (813 mm)
radius measured 2" (51 mm) from the bowl
ledge.
™
Elongated manual bidet toilet seat
K-5724
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
12-13-2021 05:43 - US/CA/MX
