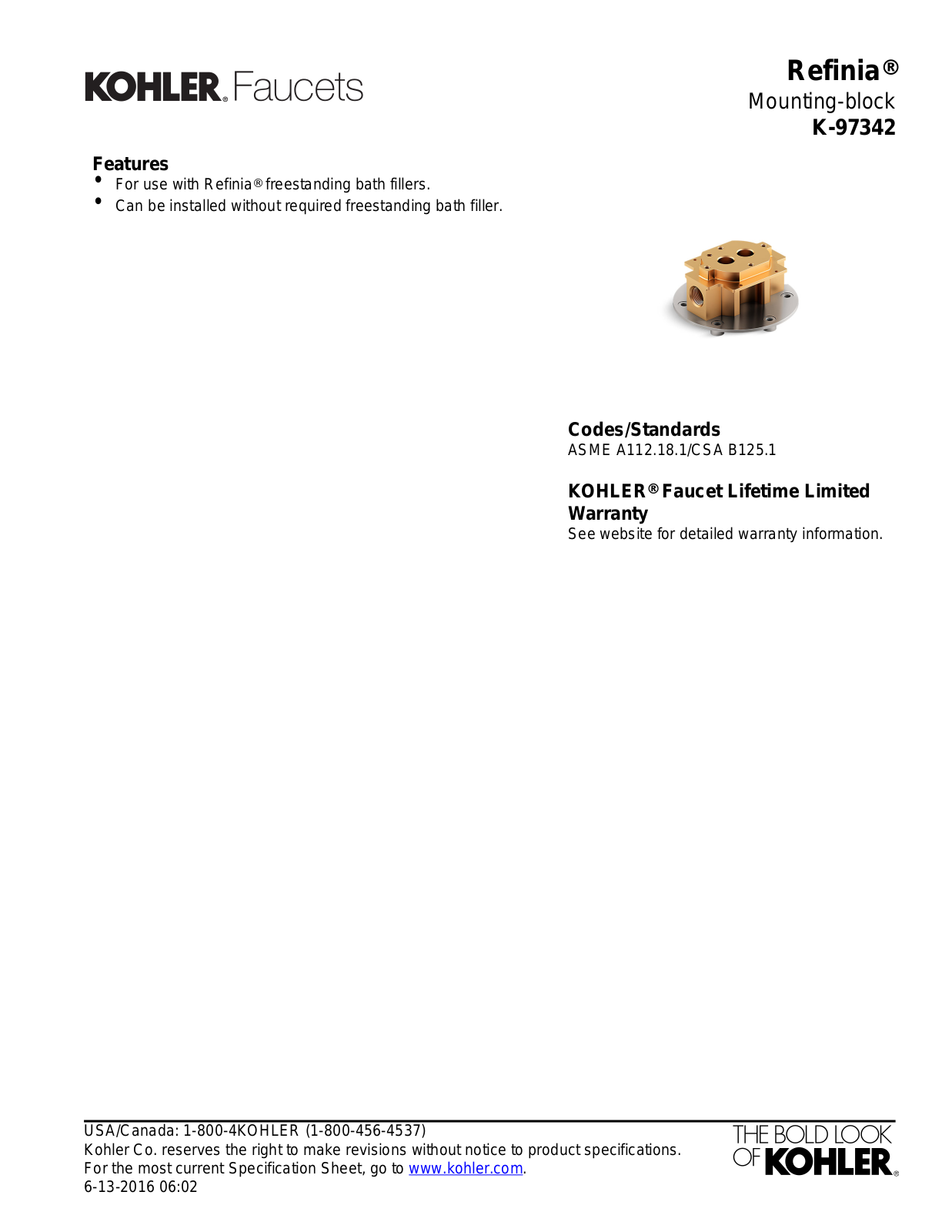

Page 1
Features
•
For use with Refinia® freestanding bath fillers.
•
Can be installed without required freestanding bath filler.
Refinia
Mounting-block
K-97342
Codes/Standards
ASME A112.18.1/CSA B125.1
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
®
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-13-2016 06:02

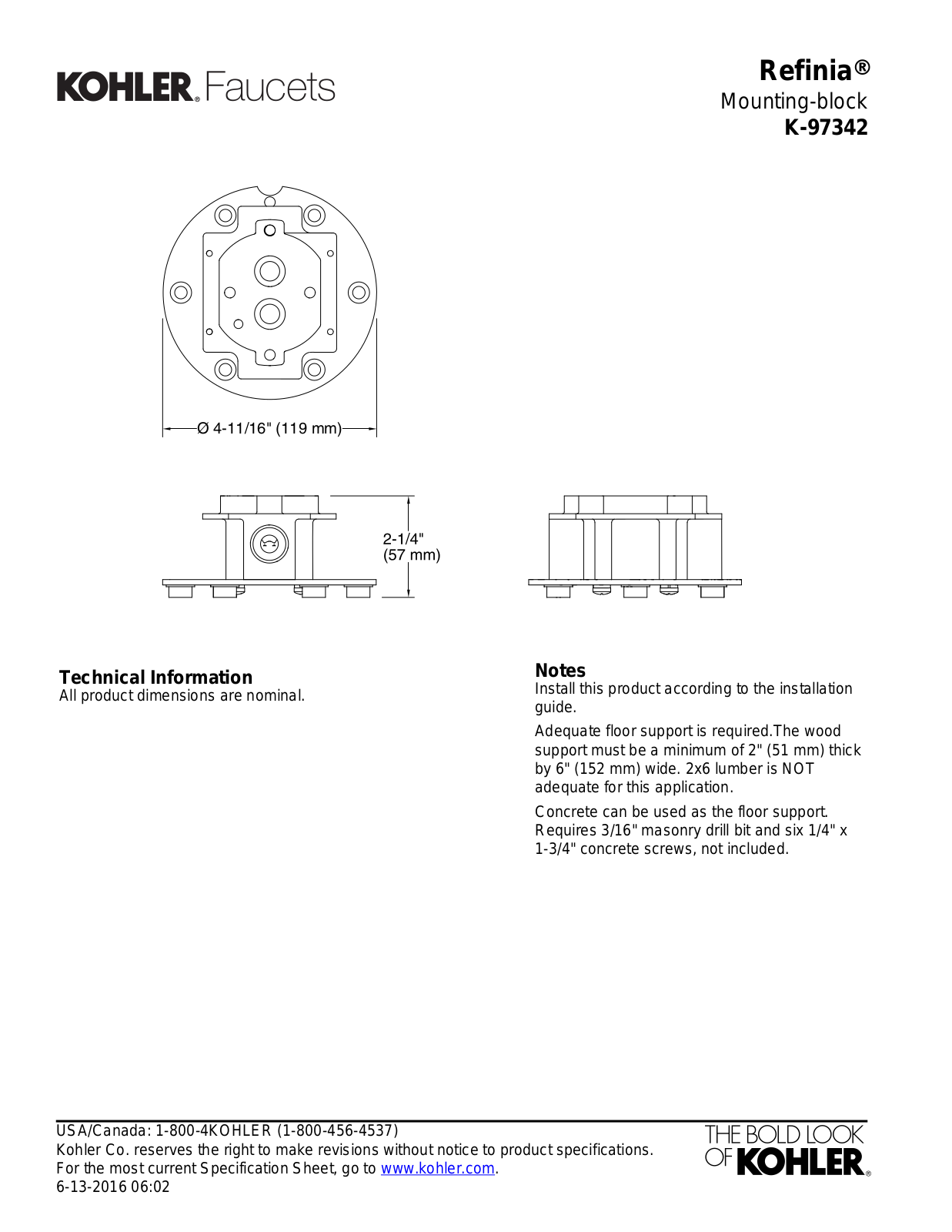

Page 2
Ø 4-11/16" (119 mm)
Refinia
®
Mounting-block
K-97342
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
guide.
Adequate floor support is required.The wood
support must be a minimum of 2" (51 mm) thick
by 6" (152 mm) wide. 2x6 lumber is NOT
adequate for this application.
Concrete can be used as the floor support.
Requires 3/16" masonry drill bit and six 1/4" x
1-3/4" concrete screws, not included.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-13-2016 06:02
