Page 1
Features
•
Dual LED Lighting - Guide and Task lighting that illuminates
tank and bowl.
•
Battery Operated - No cords required (Up to 6 months of battery
life).
•
Illumination Cycle - Automatic 7-hour nightlight.
•
Overhanging Lid for clean and sleek design.
•
Quiet-Close technology prevents seat from slamming.
•
Grip-Tight Bumpers add stability and prevent shifting.
•
Quick-Release functionality allows the seat to be removed
quickly for easy cleaning.
•
Quick-Attach hardware speeds up installation and provides
tight, secure fit.
•
Offered in a wide range of colors to let you create a cohesive
bathroom design.
•
Choose between two brightness levels: a soft glow or a brighter
illumination.

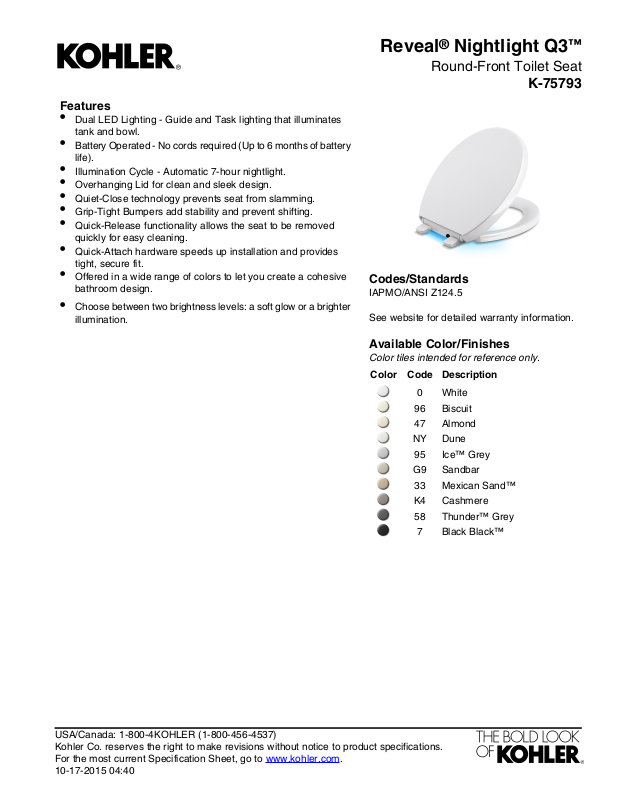

Reveal® Nightlight Q3
Round-Front Toilet Seat
K-75793
Codes/Standards
IAPMO/ANSI Z124.5
See website for detailed warranty information.
™
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
Ice™ Grey95
SandbarG9
Mexican Sand™33
CashmereK4
Thunder™ Grey58
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
10-17-2015 04:40
Page 2
10-1/8"
Reveal® Nightlight Q3
Round-Front Toilet Seat
K-75793
™
Technical Information
All product dimensions are nominal.
RoundSeat shape type:
Closed frontSeat front type:
Seat hinge type:
Quick-Attach®, Quiet-Close™,
Quick-Release
Notes
Install this product according to the installation
guide.
Requires 4 AA batteries (not included).
™
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
10-17-2015 04:40
