Page 1
Features
CSA B651
•
Overflow drain.
Material
•
Vitreous china.
Installation
•
No faucet holes; requires wall- or counter-mount faucet.
•
Drop-in or vessel.
Recommended Products/Accessories
K-23726 Drain treatment
K-23725 Cast iron cleaner

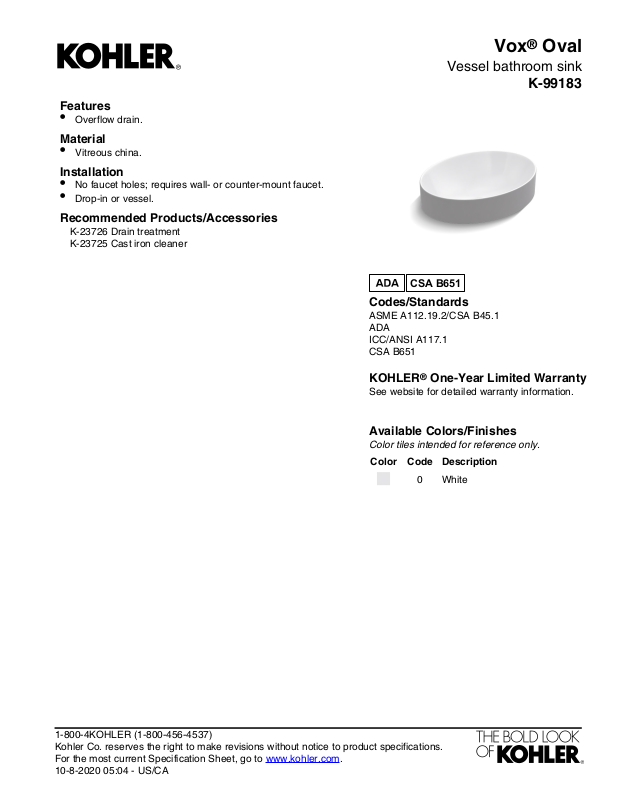

Vox® Oval
Vessel bathroom sink
K-99183
Codes/Standards
ASME A112.19.2/CSA B45.1
ADA
ICC/ANSI A117.1
CSA B651
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
10-8-2020 05:04 - US/CA
Page 2
4-5/16"
(110 mm)
13-1/16"
(332 mm)
14-7/8"
(378 mm)
1/8"
(3 mm)
7-7/16"
(189 mm)
10" (254 mm)
20" (508 mm)
1-1/4" OD
3/8" Cold3/8" Hot
14"
(356 mm)
7-7/16"
(189 mm)
Vox® Oval
Vessel bathroom sink
K-99183
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
VesselInstallation:
Bowl area (Only):
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
10-8-2020 05:04 - US/CA
Bowl depth: 5-1/2" (140 mm)
With overflow: Yes
YesWith overflow:
1245921-7, required, includedTemplate:
Notes
Install this product according to the installation
instructions.
NOTICE: Countertop manufacturer or cutter must
use the cut-out template provided with the
product, or a current one provided by Kohler Co.
(call 1-800-4-KOHLER). Kohler Co. is not
responsible for cutout errors when the incorrect
cut-out template is used.
ADA, CSA B651 compliant when installed to the
specific requirements of these regulations.
