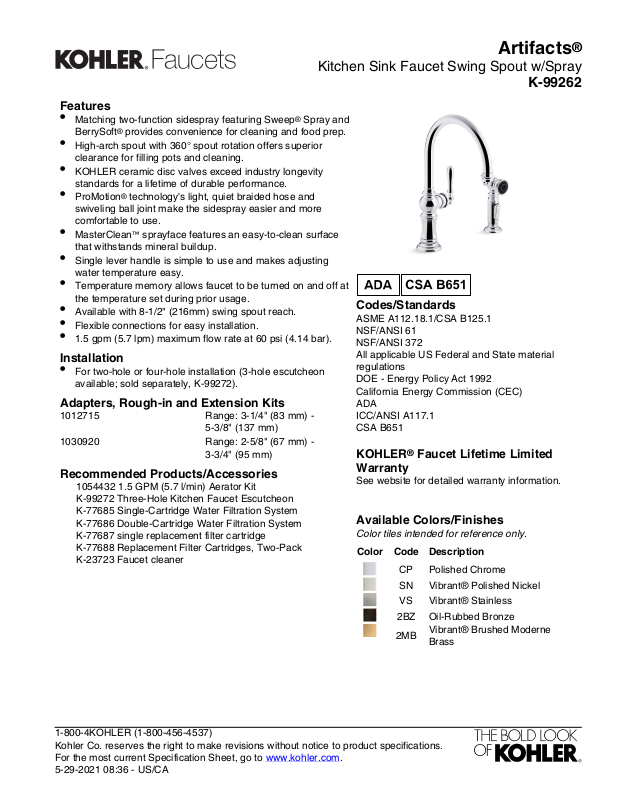

Page 1
Features
•
Matching two-function sidespray featuring Sweep® Spray and
BerrySoft® provides convenience for cleaning and food prep.
•
High-arch spout with 360° spout rotation offers superior
clearance for filling pots and cleaning.
•
KOHLER ceramic disc valves exceed industry longevity
standards for a lifetime of durable performance.
•
ProMotion® technology's light, quiet braided hose and
swiveling ball joint make the sidespray easier and more
comfortable to use.
•
MasterClean™ sprayface features an easy-to-clean surface
that withstands mineral buildup.
•
Single lever handle is simple to use and makes adjusting
water temperature easy.
•
Temperature memory allows faucet to be turned on and off at
the temperature set during prior usage.
•
Available with 8-1/2" (216mm) swing spout reach.
•
Flexible connections for easy installation.
•
1.5 gpm (5.7 lpm) maximum flow rate at 60 psi (4.14 bar).
Installation
•
For two-hole or four-hole installation (3-hole escutcheon
available; sold separately, K-99272).
Adapters, Rough-in and Extension Kits
1012715 Range: 3-1/4" (83 mm) -
5-3/8" (137 mm)
1030920 Range: 2-5/8" (67 mm) -
3-3/4" (95 mm)
Recommended Products/Accessories
1054432 1.5 GPM (5.7 l/min) Aerator Kit
K-99272 Three-Hole Kitchen Faucet Escutcheon
K-77685 Single-Cartridge Water Filtration System
K-77686 Double-Cartridge Water Filtration System
K-77687 single replacement filter cartridge
K-77688 Replacement Filter Cartridges, Two-Pack
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
VS Vibrant® Stainless
2BZ Oil-Rubbed Bronze
2MB
Vibrant® Brushed Moderne
Brass
Artifacts
Kitchen Sink Faucet Swing Spout w/Spray
K-99262
®
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 08:36 - US/CA
Page 2
Artifacts
Ø 1-5/16"
9-1/16"
(230 mm)
14-11/16"
(373 mm)
8-1/2"
(216 mm)
Ø 2-5/8"
(67 mm)
3-1/4"
(83 mm)
Max
8-1/4"
(210 mm)
4-5/16"
(110 mm)
27-5/8"
(702 mm)
Supply Hoses with
3/8" Compression Fitting
5-15/16"
(151 mm)
Ø 2"
(51 mm)
2-5/8"
(67 mm)
Max
Ø 7/8"
3-7/16"
(87 mm)
2-9/16"
(65 mm)
Technical Information
All product dimensions are nominal.
Spout:
Spout reach: 8-1/2" (216 mm)
Notes
Install this product according to the installation
guide.
Meets all local plumbing codes for backflow
prevention requirements.
ADA complaint for faucet handles only.
ADA, CSA B651 compliant when installed to
the specific requirements of these regulations.
®
Kitchen Sink Faucet Swing Spout w/Spray
K-99262
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 08:36 - US/CA
