Page 1
Features
CSA B651
OBC
•
For single-hole installation or 4-inch centers with escutcheon
(escutcheon plate included).
•
KOHLER ceramic disc valves exceed industry longevity
standards two times for a lifetime of durable performance.
•
Low-flow aerator option available.
•
Temperature memory allows faucet to be turned on and off at
any temperature setting.
•
Pop-up drain with lift rod and tailpiece.
•
1.2 gal/min (4.5 l/min) maximum flow rate [max at 60 psi (4.14
bar)].
•
Coordinates with other Devonshire faucets and accessories.
Material
•
Premium material construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Flexible connections for easy installation.
Included Components
Additional Components:
Escutcheon plate
Devonshire
®
single-handle bathroom sink faucet
K-193-4
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
EPA WaterSense
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
OBC
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Polished NickelSN
Vibrant® Polished BrassPB
Vibrant® Brushed NickelBN
Vibrant® Brushed BronzeBV
Oil-Rubbed Bronze2BZ
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-13-2019 05:39 - US/CA
Page 2

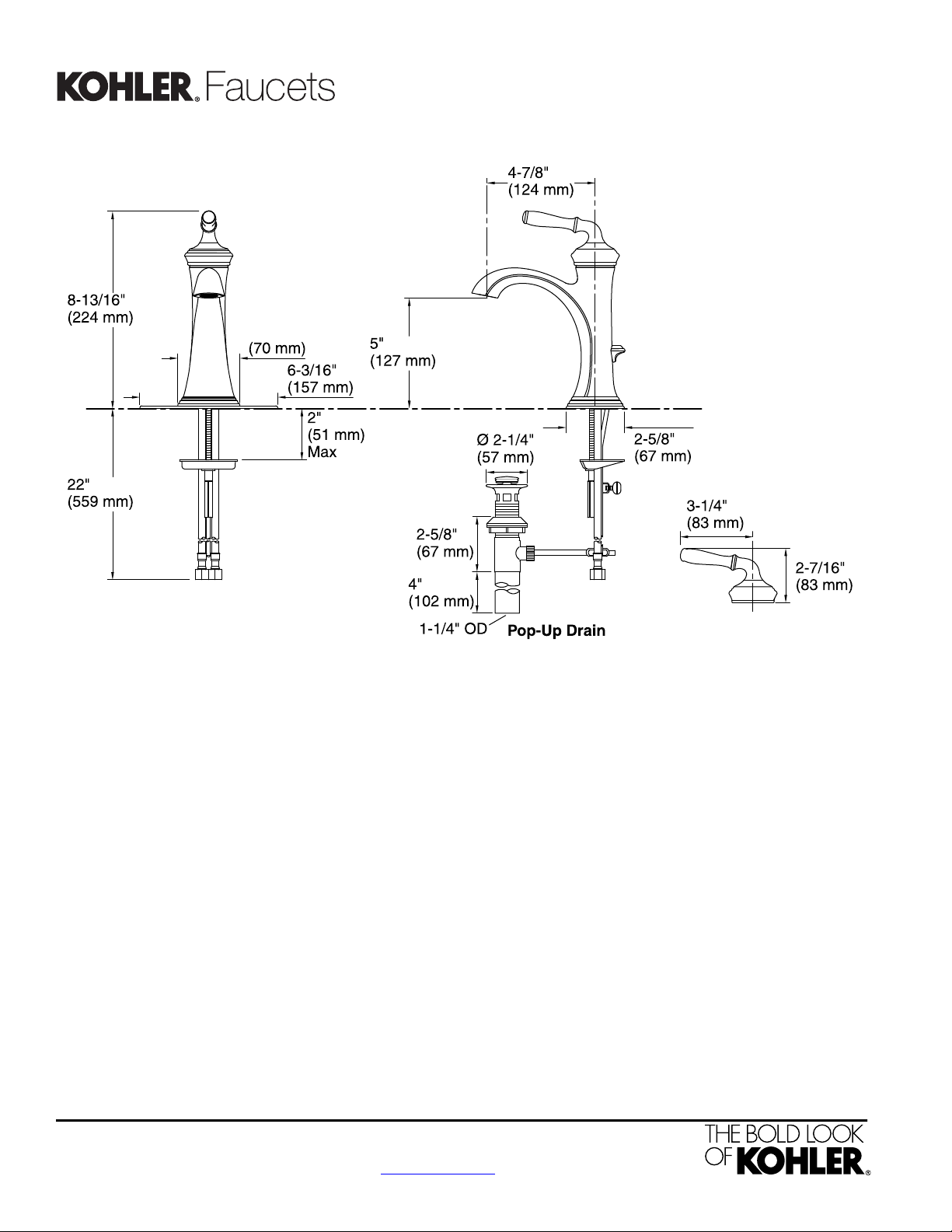

2-3/4"
Devonshire
®
single-handle bathroom sink faucet
K-193-4
Technical Information
All product dimensions are nominal.
Faucet:
1.2 gal/min (4.5 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
YesDrain included:
YesDrain tailpiece
included:
Spout:
4-7/8" (124 mm)Spout reach:
Notes
Install this product according to the installation
guide.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-13-2019 05:39 - US/CA
