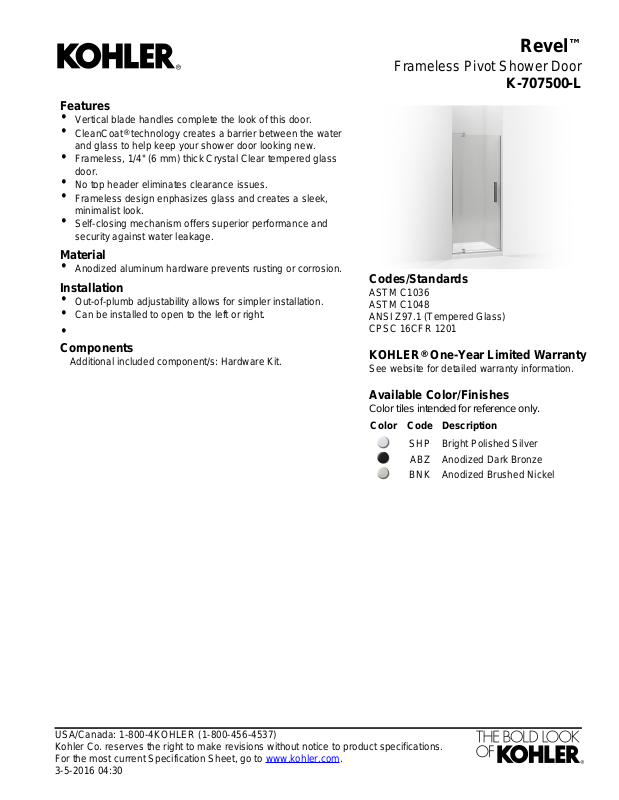

Page 1
Features
•
Vertical blade handles complete the look of this door.
•
CleanCoat® technology creates a barrier between the water
and glass to help keep your shower door looking new.
•
Frameless, 1/4" (6 mm) thick Crystal Clear tempered glass
door.
•
No top header eliminates clearance issues.
•
Frameless design enphasizes glass and creates a sleek,
minimalist look.
•
Self-closing mechanism offers superior performance and
security against water leakage.
Material
•
Anodized aluminum hardware prevents rusting or corrosion.
Installation
•
Out-of-plumb adjustability allows for simpler installation.
•
Can be installed to open to the left or right.
•
Components
Additional included component/s: Hardware Kit.
Revel
™
Frameless Pivot Shower Door
K-707500-L
Codes/Standards
ASTM C1036
ASTM C1048
ANSI Z97.1 (Tempered Glass)
CPSC 16CFR 1201
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Bright Polished SilverSHP
Anodized Dark BronzeABZ
Anodized Brushed NickelBNK
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-5-2016 04:30
Page 2
* Walk Through
Revel
™
Frameless Pivot Shower Door
K-707500-L
Technical Information
All product dimensions are nominal.
For receptor installationInstallation type:
PivotOpening style:
27-5/16" (693 mm)Opening Width - Min:
31-1/8" (791 mm)Opening Width - Max:
18-9/16" (471 mm)Walk-through - Min:
22-3/8" (568 mm)Walk-through - Max:
1/4" (6 mm)Glass thickness:
Notes
Install this product according to the installation
guide.
Strike jamb is made of clear plastic and may not
cover existing shower door holes.
NOTICE: The vertical opening should be a
minimum of 74" (1880 mm) to allow clearance for
installation.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-5-2016 04:30
