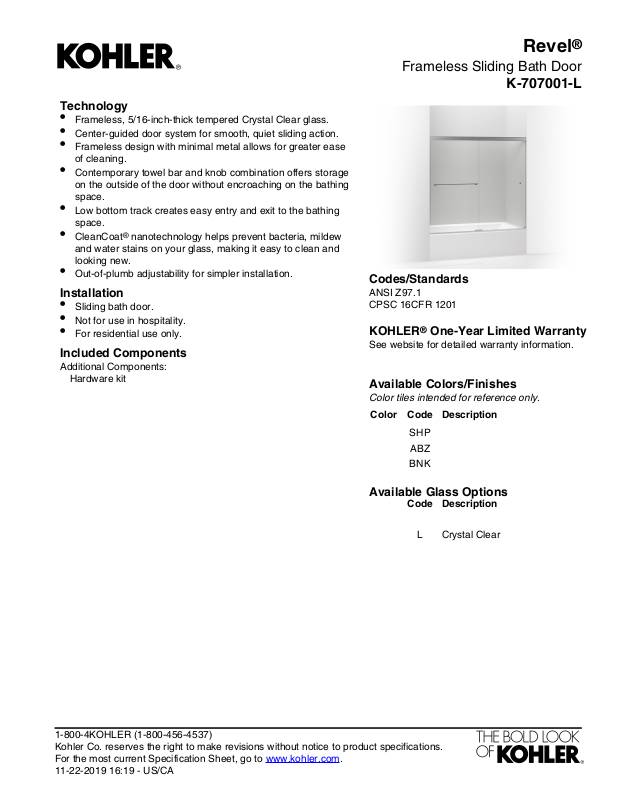

Page 1
Technology
•
Frameless, 5/16-inch-thick tempered Crystal Clear glass.
•
Center-guided door system for smooth, quiet sliding action.
•
Frameless design with minimal metal allows for greater ease
of cleaning.
•
Contemporary towel bar and knob combination offers storage
on the outside of the door without encroaching on the bathing
space.
•
Low bottom track creates easy entry and exit to the bathing
space.
•
CleanCoat® nanotechnology helps prevent bacteria, mildew
and water stains on your glass, making it easy to clean and
looking new.
•
Out-of-plumb adjustability for simpler installation.
Installation
•
Sliding bath door.
•
Not for use in hospitality.
•
For residential use only.
Included Components
Additional Components:
Hardware kit
Revel
®
Frameless Sliding Bath Door
K-707001-L
Codes/Standards
ANSI Z97.1
CPSC 16CFR 1201
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
SHP
ABZ
BNK
Available Glass Options
DescriptionCode
Crystal ClearL
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
11-22-2019 16:19 - US/CA
Page 2
59-5/8" (1514 mm) Max
56-5/8" (1438 mm) Min
* 28-3/4" (730 mm) Max
* 25-3/4" (654 mm) Min
55-1/2"
(1410 mm)
* 52-9/16"
(1335 mm)
2-1/2"
(64 mm)
4-3/4"
(121 mm)
* Walk-Through
2-1/2"
(64 mm)
2-1/2"
(64 mm)
2-1/4"
(57 mm)
5/8"
(16 mm)
Revel
®
Frameless Sliding Bath Door
K-707001-L
Technical Information
All product dimensions are nominal.
For bath installationInstallation type:
Sliding/BypassOpening style:
56-5/8" (1438 mm)Opening Width - Min:
- Max:
Glass coating:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
11-22-2019 16:19 - US/CA
59-5/8" (1514 mm)Opening Width - Max:
25-3/4" (654 mm)Walk-through - Min:
28-3/4" (730 mm)Walk-through - Max:
3/8" (10 mm)Shower Base Radius
5/16" (8 mm)Glass thickness:
CleanCoat
®
Notes
Install this product according to the installation
guide.
Wall jambs are made of clear plastic and may not
cover existing shower door holes.
NOTICE: The vertical opening should be a
minimum of 58" (1473 mm) to allow clearance for
installing the top track over the wall jambs.
