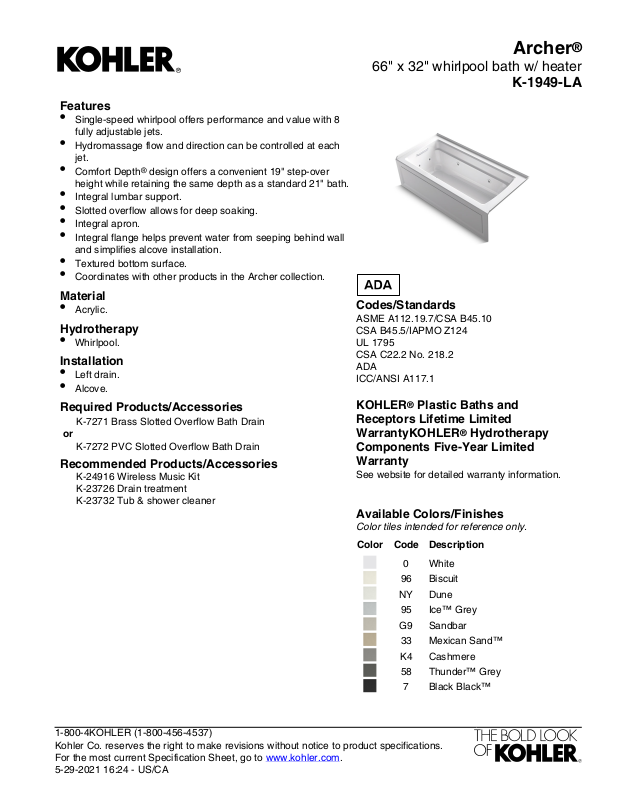

Archer
Features
•
Single-speed whirlpool offers performance and value with 8
fully adjustable jets.
•
Hydromassage flow and direction can be controlled at each
jet.
•
Comfort Depth® design offers a convenient 19" step-over
height while retaining the same depth as a standard 21" bath.
•
Integral lumbar support.
•
Slotted overflow allows for deep soaking.
•
Integral apron.
•
Integral flange helps prevent water from seeping behind wall
and simplifies alcove installation.
•
Textured bottom surface.
•
Coordinates with other products in the Archer collection.
Material
•
Acrylic.
Hydrotherapy
•
Whirlpool.
Installation
•
Left drain.
•
Alcove.
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
or
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-24916 Wireless Music Kit
K-23726 Drain treatment
K-23732 Tub & shower cleaner
Codes/Standards
ASME A112.19.7/CSA B45.10
CSA B45.5/IAPMO Z124
UL 1795
CSA C22.2 No. 218.2
ADA
ICC/ANSI A117.1
KOHLER® Plastic Baths and
Receptors Lifetime Limited
WarrantyKOHLER® Hydrotherapy
Components Five-Year Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit
NY Dune
95 Ice™ Grey
G9 Sandbar
33 Mexican Sand™
K4 Cashmere
58 Thunder™ Grey
7 Black Black™
®
66" x 32" whirlpool bath w/ heater
K-1949-LA
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 16:24 - US/CA
Page 2

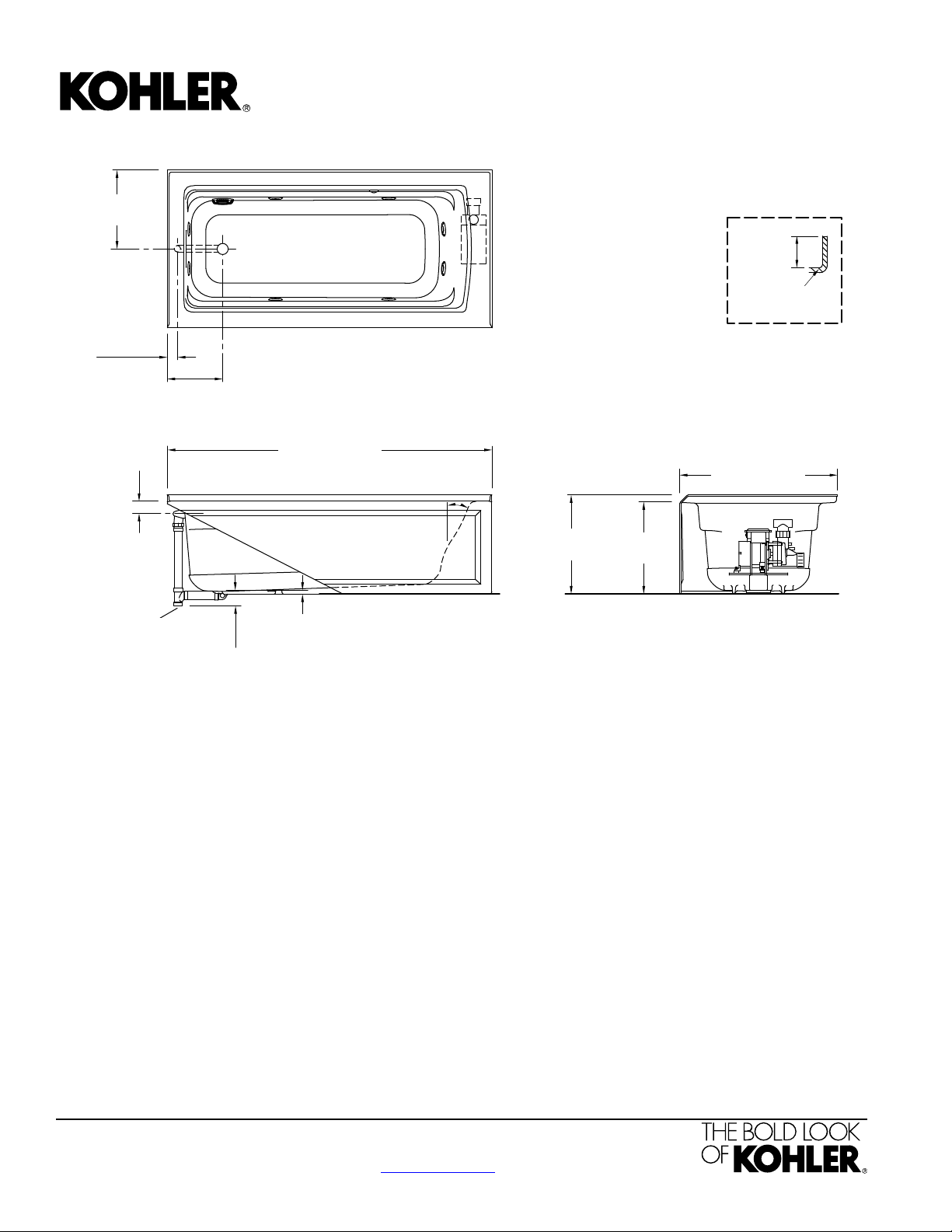

Archer
1/2" (13 mm) R.
Lumbar
Angle 24°
Integral Flange
Detail
1-1/4"
(32 mm)
No change in measurements if connected
with drain illustrated. (K-7272)
1-1/4"
(32 mm)
20-1/4"
(514 mm)
4-1/8"
(105 mm)
16"
(406 mm)
11-1/4"
(286 mm)
2-1/2"
(64 mm)
3/4" (19 mm)
32" (813 mm)
66" (1676 mm)
1-1/2"
Bath Drain
19"
(483 mm)
Required Electrical Service
One dedicated circuit required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this
device may be known as a Residual Current Device (RCD).
Pump: 120 V, 15 A, 60 Hz
Technical Information
All product dimensions are nominal.
Installation: Three-wall alcove
Drain location: Left
Basin area, bottom: 50-3/8" x 19-5/8" (1280 mm x 498 mm)
Basin area, top: 57-5/16" x 24-1/16" (1456 mm x
611 mm)
Weight: 120 lbs (54.4 kg)
Minimum floor load: 47 lbs/ft² (229.5 kg/m²)
Water depth: 15-5/16" (389 mm)
Water capacity: 66 gal (249.8 L)
Electrical component
rating:
Pump: 120 V, 7 A, 60 Hz
Pump speed: Single
Notes
Measure your actual product for rough-in
details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
ADA compliant when installed to the specific
requirements of these regulations.
®
66" x 32" whirlpool bath w/ heater
K-1949-LA
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 16:24 - US/CA
