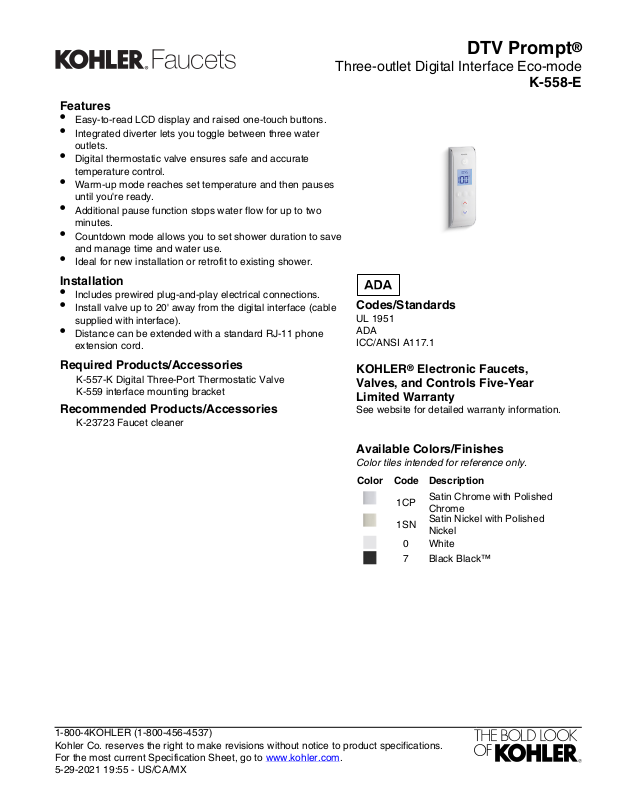

Page 1
DTV Prompt
Features
•
Easy-to-read LCD display and raised one-touch buttons.
•
Integrated diverter lets you toggle between three water
outlets.
•
Digital thermostatic valve ensures safe and accurate
temperature control.
•
Warm-up mode reaches set temperature and then pauses
until you're ready.
•
Additional pause function stops water flow for up to two
minutes.
•
Countdown mode allows you to set shower duration to save
and manage time and water use.
•
Ideal for new installation or retrofit to existing shower.
Installation
•
Includes prewired plug-and-play electrical connections.
•
Install valve up to 20' away from the digital interface (cable
supplied with interface).
•
Distance can be extended with a standard RJ-11 phone
extension cord.
Required Products/Accessories
K-557-K Digital Three-Port Thermostatic Valve
K-559 interface mounting bracket
Recommended Products/Accessories
K-23723 Faucet cleaner
Codes/Standards
UL 1951
ADA
ICC/ANSI A117.1
KOHLER® Electronic Faucets,
Valves, and Controls Five-Year
Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
1CP
Satin Chrome with Polished
Chrome
1SN
Satin Nickel with Polished
Nickel
0 White
7 Black Black™
®
Three-outlet Digital Interface Eco-mode
K-558-E
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 19:55 - US/CA/MX
Page 2
DTV Prompt
1-9/16"
(40 mm)
2-11/16"
(68 mm)
7-3/4"
(197 mm)
18"
(457 mm)
Ø 1-3/8"
(35 mm)
Cable
20 ft (6.1 m)
3/4"
(19 mm)
Recommended
58" (1473 mm)
To Floor
Technical Information
All product dimensions are nominal.
Max. Ambient temp: 125°F (51.7°C)
Max. Relative
humidity noncondensing:
100%
Notes
Install this product according to the installation
guide.
ADA compliant when installed to the specific
requirements of these regulations.
®
Three-outlet Digital Interface Eco-mode
K-558-E
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 19:55 - US/CA/MX
