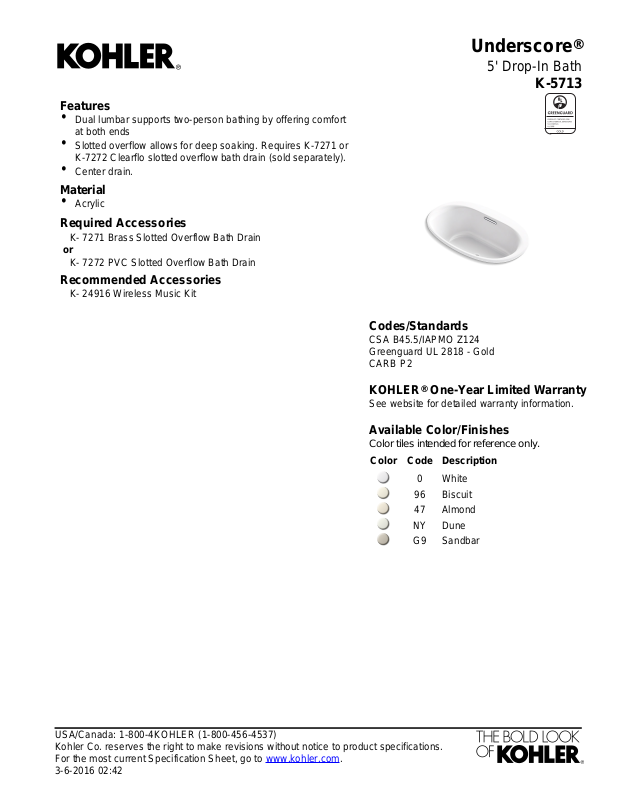

Page 1
Features
•
Dual lumbar supports two-person bathing by offering comfort
at both ends
•
Slotted overflow allows for deep soaking. Requires K-7271 or
K-7272 Clearflo slotted overflow bath drain (sold separately).
•
Center drain.
Material
•
Acrylic
Required Accessories
K- 7271 Brass Slotted Overflow Bath Drain
or
K- 7272 PVC Slotted Overflow Bath Drain
Recommended Accessories
K- 24916 Wireless Music Kit
Underscore
Codes/Standards
CSA B45.5/IAPMO Z124
Greenguard UL 2818 - Gold
CARB P2
®
5' Drop-In Bath
K-5713
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
SandbarG9
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-6-2016 02:42
Page 2
Faucet area.
Underscore
5' Drop-In Bath
K-5713
®
Technical Information
All product dimensions are nominal.
Drop-inInstallation:
CenterDrain location:
43" x 25-5/8" (1093 mm x 651 mm)Basin area, bottom:
55-9/16" x 28-3/8" (1411 mm x 720 mm)Basin area, top:
80 lbs (36.3 kg)Weight:
45.4 lbs/ft² (221.7 kg/m²)Minimum floor load:
16-5/16" (415 mm)Water depth:
72.017 gal (272.6 L)Water capacity:
Drop-in, 1268438-7, required, includedTemplate:
814-NAUnder-mount kit:
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
