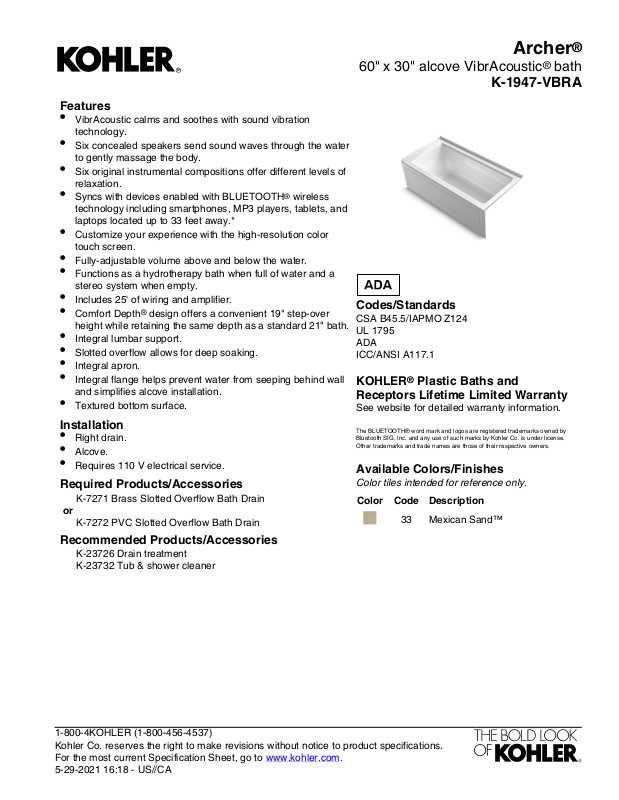

Features
•
VibrAcoustic calms and soothes with sound vibration
technology.
•
Six concealed speakers send sound waves through the water
to gently massage the body.
•
Six original instrumental compositions offer different levels of
relaxation.
•
Syncs with devices enabled with BLUETOOTH® wireless
technology including smartphones, MP3 players, tablets, and
laptops located up to 33 feet away.*
•
Customize your experience with the high-resolution color
touch screen.
•
Fully-adjustable volume above and below the water.
•
Functions as a hydrotherapy bath when full of water and a
stereo system when empty.
•
Includes 25' of wiring and amplifier.
•
Comfort Depth® design offers a convenient 19" step-over
height while retaining the same depth as a standard 21" bath.
•
Integral lumbar support.
•
Slotted overflow allows for deep soaking.
•
Integral apron.
•
Integral flange helps prevent water from seeping behind wall
and simplifies alcove installation.
•
Textured bottom surface.
Installation
•
Right drain.
•
Alcove.
•
Requires 110 V electrical service.
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
or
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-23726 Drain treatment
K-23732 Tub & shower cleaner
Codes/Standards
CSA B45.5/IAPMO Z124
UL 1795
ADA
ICC/ANSI A117.1
KOHLER® Plastic Baths and
Receptors Lifetime Limited Warranty
See website for detailed warranty information.
The BLUETOOTH® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Kohler Co. is under license.
Other trademarks and trade names are those of their respective owners.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
33 Mexican Sand™
60" x 30" alcove VibrAcoustic® bath
K-1947-VBRA
Archer
®
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 16:18 - US//CA
Page 2

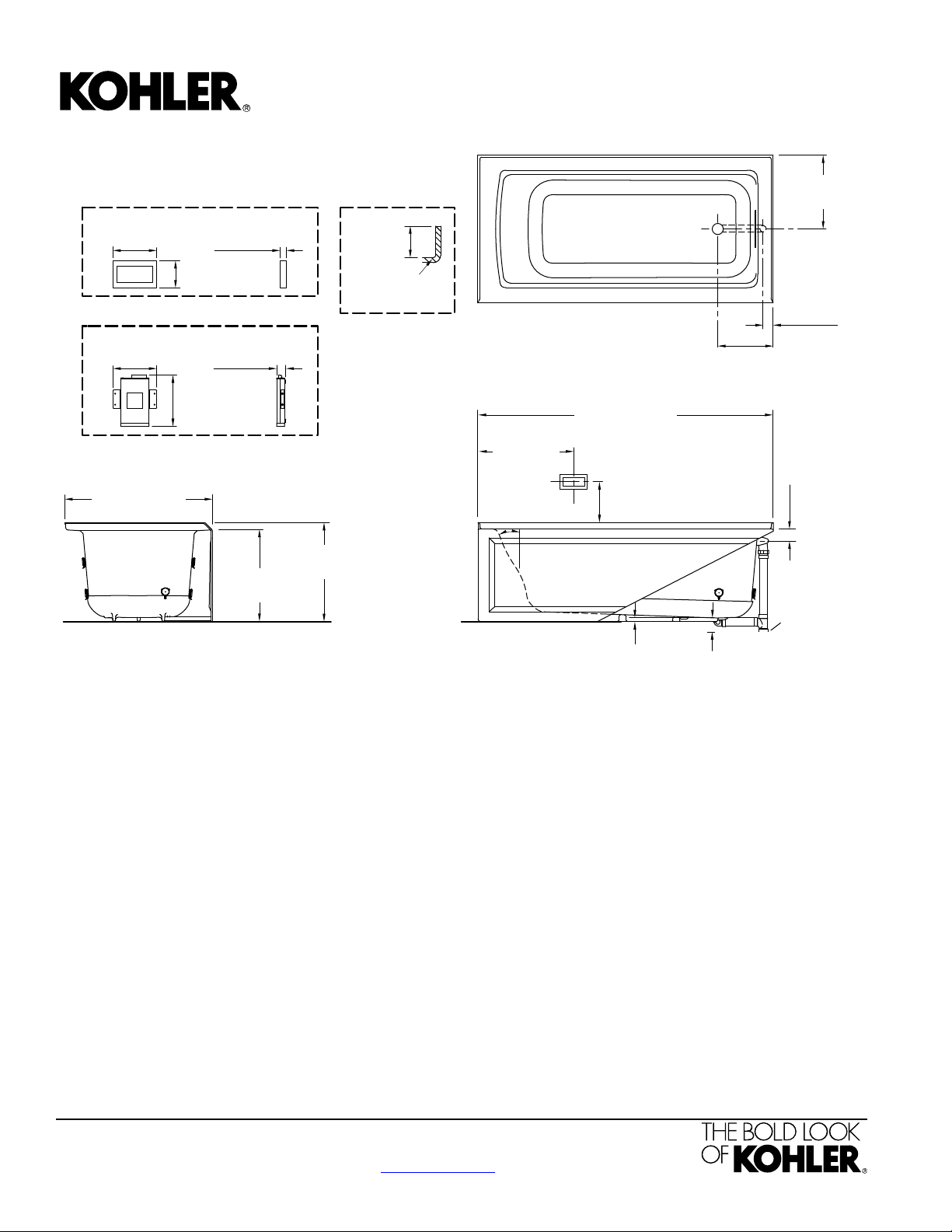

Archer
1/2" (13 mm) R.
Lumbar
Angle 24°
No change in measurements if connected
with drain illustrated. (K-7272)
4-1/8" (105 mm)
15"
(381 mm)
11-1/4"
(286 mm)
2-1/2"
(64 mm)
3/4" (19 mm)
19"
(483 mm)
30" (762 mm)
60" (1524 mm)
1-1/2"
Bath Drain
Integral Flange
Detail
1-1/4"
(32 mm)
*24"
(610 mm)
*10"
(254 mm)
20-1/4"
(514 mm)
1-1/4"
(32 mm)
6-5/8"
(168 mm)
1-1/8"
(29 mm)
5-5/8"
(143 mm)
Amplifier
User Interface
7/8"
(22 mm)
3-1/2"
(89 mm)
5-5/8"
(143 mm)
Required Electrical Service
One circuit required, protected with Class A Ground-Fault
Circuit-Interrupter (GFCI). Outside North America, this device
may be known as a Residual Current Device (RCD).
Amplifier: 120 V, 15 A, 50/60 Hz
Technical Information
All product dimensions are nominal.
Installation: Three-wall alcove
Drain location: Right
Basin area, bottom: 45-1/8" x 19-11/16" (1146 mm x
500 mm)
Basin area, top: 52-1/8" x 22-1/16" (1324 mm x 560 mm)
Weight: 76 lbs (34.5 kg)
Minimum floor load: 47 lbs/ft² (229.5 kg/m²)
Water depth: 15-1/8" (384 mm)
Water capacity: 57 gal (215.8 L)
Electrical component
rating:
Amplifier: 120 V, 1.1 A, 50/60 Hz
Amplifier channels: 2 at 15 W per channel
2 at 30 W per channel
Bluetooth® range: 33 ft (0.8 m)
Notes
Measure your actual product for rough-in
details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
Control amplifier fits 16" (406 mm) center studs.
25' (7.6 m) cables are included.
IMPORTANT! Due to BLUETOOTH signal
overlap, installations of multiple baths within
50 ft (15.2 m) of each other will require special
order product. Please contact your dealer,
showroom, or sales representative for ordering
assistance.
ADA compliant when installed to the specific
requirements of these regulations.
®
60" x 30" alcove VibrAcoustic® bath
K-1947-VBRA
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 16:18 - US//CA
