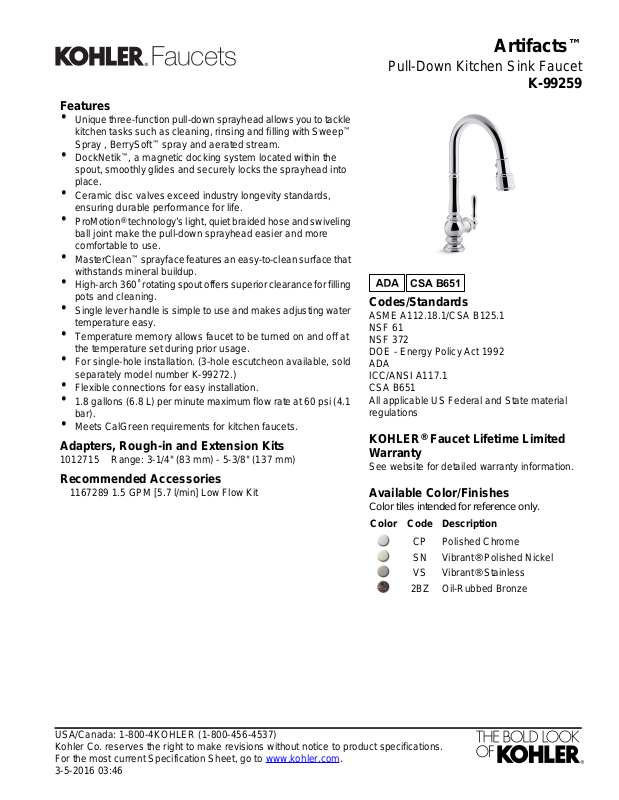

Page 1
Features
CSA B651
•
Unique three-function pull-down sprayhead allows you to tackle
kitchen tasks such as cleaning, rinsing and filling with Sweep
Spray , BerrySoft™ spray and aerated stream.
•
DockNetik™, a magnetic docking system located within the
spout, smoothly glides and securely locks the sprayhead into
place.
•
Ceramic disc valves exceed industry longevity standards,
ensuring durable performance for life.
•
ProMotion® technology’s light, quiet braided hose and swiveling
ball joint make the pull-down sprayhead easier and more
comfortable to use.
•
MasterClean™ sprayface features an easy-to-clean surface that
withstands mineral buildup.
•
High-arch 360˚ rotating spout offers superior clearance for filling
pots and cleaning.
•
Single lever handle is simple to use and makes adjusting water
temperature easy.
•
Temperature memory allows faucet to be turned on and off at
the temperature set during prior usage.
•
For single-hole installation. (3-hole escutcheon available, sold
separately model number K-99272.)
•
Flexible connections for easy installation.
•
1.8 gallons (6.8 L) per minute maximum flow rate at 60 psi (4.1
bar).
•
Meets CalGreen requirements for kitchen faucets.
Adapters, Rough-in and Extension Kits
Range: 3-1/4" (83 mm) - 5-3/8" (137 mm)1012715
Recommended Accessories
1167289 1.5 GPM [5.7 l/min] Low Flow Kit
Artifacts
Pull-Down Kitchen Sink Faucet
™
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF 61
NSF 372
DOE - Energy Policy Act 1992
ADA
ICC/ANSI A117.1
CSA B651
All applicable US Federal and State material
regulations
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
™
K-99259
Polished ChromeCP
Vibrant® Polished NickelSN
Vibrant® StainlessVS
Oil-Rubbed Bronze2BZ
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-5-2016 03:46
Page 2
Supply Hoses with
Artifacts
™
Pull-Down Kitchen Sink Faucet
K-99259

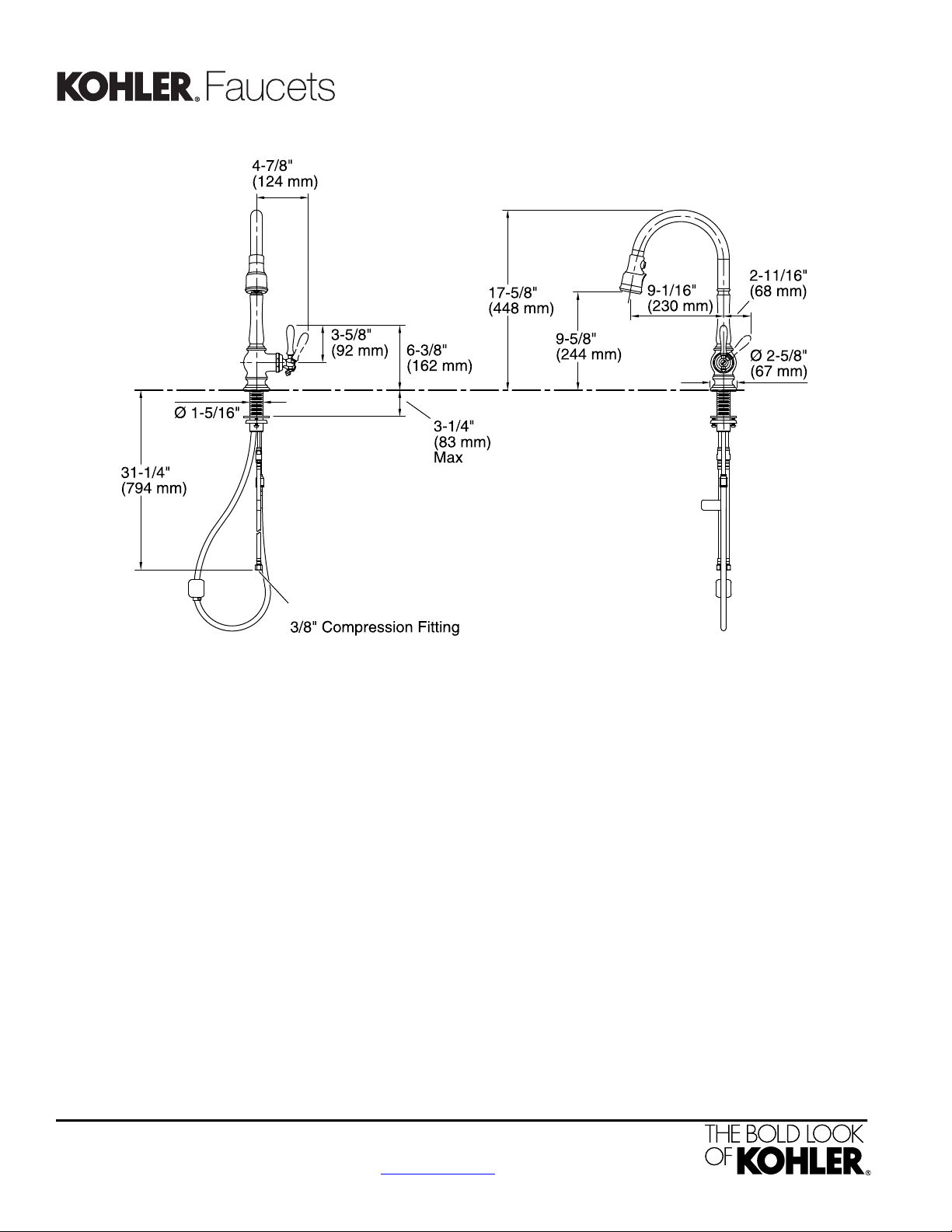

Technical Information
All product dimensions are nominal.
9-1/16" (231 mm)Spout reach:
Faucet:
1.8 gal/min (6.8 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
Notes
Install this product according to the installation
guide.
Meets all local plumbing codes for backflow
prevention requirements.
ADA, CSA B651 compliant when installed to the
specific requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-5-2016 03:46
