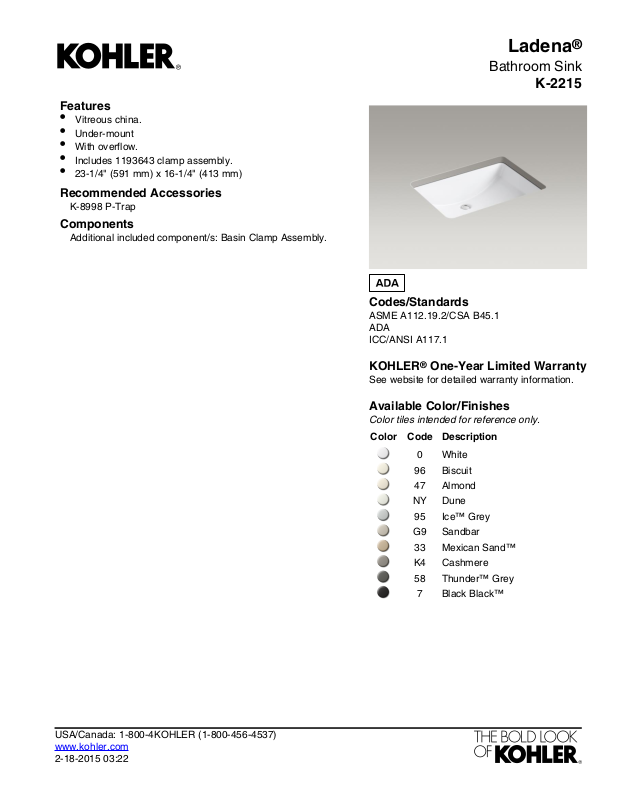

Page 1
Features
•
Vitreous china.
•
Under-mount
•
With overflow.
•
Includes 1193643 clamp assembly.
•
23-1/4" (591 mm) x 16-1/4" (413 mm)
Recommended Accessories
K-8998 P-Trap
Components
Additional included component/s: Basin Clamp Assembly.
Bathroom Sink
Codes/Standards
ASME A112.19.2/CSA B45.1
ADA
ICC/ANSI A117.1
Ladena
K-2215
®
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
Ice™ Grey95
SandbarG9
Mexican Sand™33
CashmereK4
Thunder™ Grey58
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 03:22
Page 2
4-3/4"
Ladena
®
Bathroom Sink
K-2215
Technical Information
All product dimensions are nominal.
Under-mountInstallation:
Bowl area
Length: 20-7/16" (519 mm)
Width: 13-1/2" (343 mm)
Water depth: 4-5/8" (117 mm)
1-3/4" (44 mm)Drain hole:
1002977-7, required, not includedTemplate:
Notes
Install this product according to the installation
guide.
The product diagram is based on the K-8998
adjustable P-trap with 1" (25 mm) of tailpiece
exposed.
NOTICE: Countertop manufacturer or cutter must
use the current product template available at
www.kohler.com, or by calling 1-800-4KOHLER.
Kohler Co. is not responsible for cutout errors
when the incorrect cutout template is used.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 03:22
