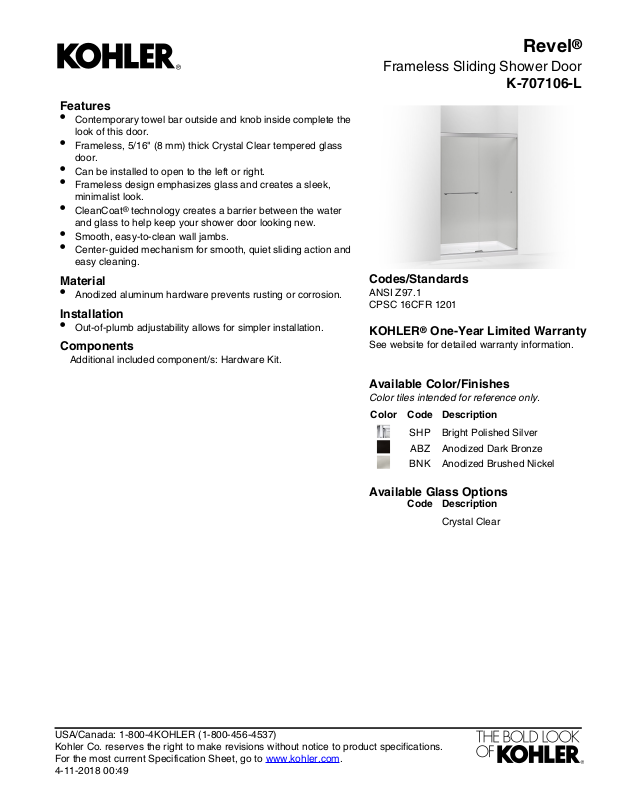

Page 1
Features
•
Contemporary towel bar outside and knob inside complete the
look of this door.
•
Frameless, 5/16" (8 mm) thick Crystal Clear tempered glass
door.
•
Can be installed to open to the left or right.
•
Frameless design emphasizes glass and creates a sleek,
minimalist look.
•
CleanCoat® technology creates a barrier between the water
and glass to help keep your shower door looking new.
•
Smooth, easy-to-clean wall jambs.
•
Center-guided mechanism for smooth, quiet sliding action and
easy cleaning.
Revel
®
Frameless Sliding Shower Door
K-707106-L
Material
•
Anodized aluminum hardware prevents rusting or corrosion.
Installation
•
Out-of-plumb adjustability allows for simpler installation.
Components
Additional included component/s: Hardware Kit.
Codes/Standards
ANSI Z97.1
CPSC 16CFR 1201
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Bright Polished SilverSHP
Anodized Dark BronzeABZ
Anodized Brushed NickelBNK
Available Glass Options
DescriptionCode
Crystal Clear
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-11-2018 00:49
Page 2
*
Revel
®
Frameless Sliding Shower Door
K-707106-L
Technical Information
All product dimensions are nominal.
For shower base installationInstallation type:
Sliding/BypassOpening style:
44-5/8" (1133 mm)Opening Width - Min:
47-5/8" (1210 mm)Opening Width - Max:
19-3/4" (502 mm)Walk-through - Min:
22-3/4" (578 mm)Walk-through - Max:
5/16" (8 mm)Glass thickness:
Glass coating:
CleanCoat
®
Notes
Install this product according to the installation
guide.
Wall jambs are made of clear plastic and may not
cover existing shower door holes.
NOTICE: The vertical opening should be a
minimum of 78-1/2" (1994 mm) to allow clearance
for installing the top track over the wall jambs.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-11-2018 00:49
