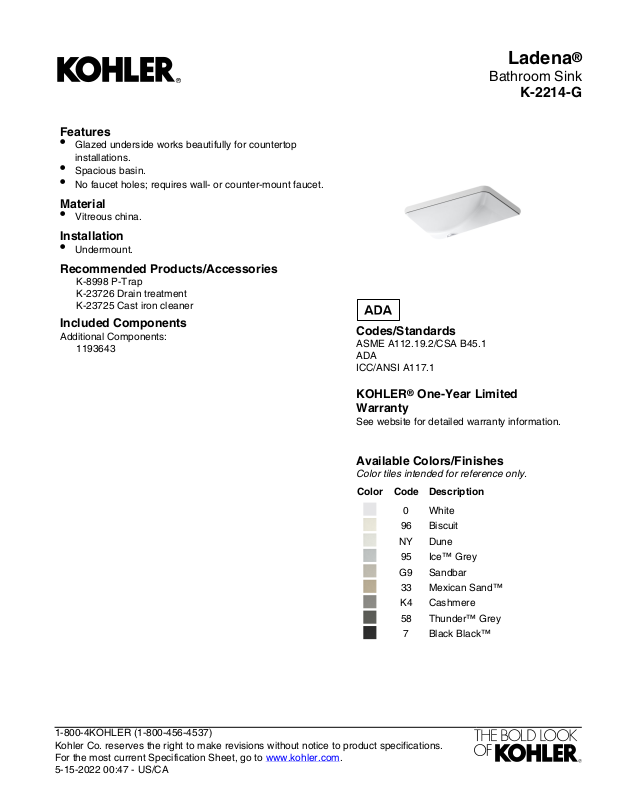

Page 1
Ladena
Features
•
Glazed underside works beautifully for countertop
installations.
•
Spacious basin.
•
No faucet holes; requires wall- or counter-mount faucet.
Material
•
Vitreous china.
Installation
•
Undermount.
Recommended Products/Accessories
K-8998 P-Trap
K-23726 Drain treatment
K-23725 Cast iron cleaner
Included Components
Additional Components:
1193643
Codes/Standards
ASME A112.19.2/CSA B45.1
ADA
ICC/ANSI A117.1
KOHLER® One-Year Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit
NY Dune
95 Ice™ Grey
G9 Sandbar
33 Mexican Sand™
K4 Cashmere
58 Thunder™ Grey
7 Black Black™
®
Bathroom Sink
K-2214-G
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-15-2022 00:47 - US/CA
Page 2
Ladena
14-3/8"
(365 mm)
8"
(203 mm) Min
24" (610 mm)
6"
(152 mm)
34"
(864 mm)
27"
(686 mm)
Min
9"
(229 mm)
Min
11" (279 mm)
Wood
Installation
Marble
Installation
5/8" (16 mm)
3/8"
(10 mm)
Sealant
Sealant
20-7/8" (530 mm)
4"(102 mm)
1-1/4" OD
3/8" Cold3/8" Hot
14"
(356 mm)
13-3/4"
(349 mm)
8-1/8"
(206 mm)
1/2"
(13 mm)
1-1/8"
(29 mm)
4-3/4"
(121 mm)
noitallatsnI ADA dednemmoceR
C
L
of Fitting
1"
(25 mm)
Max
Technical Information
All product dimensions are nominal.
Installation: Undermount
Bowl area: Length: 18-3/8" (467 mm)
Width: 11-5/8" (295 mm)
Water depth: 4-5/8" (117 mm)
With overflow: No
Drain hole: 1-3/4" (44 mm)
Template: 1053195-7, required, not included
Notes
Install this product according to the installation
instructions.
The product diagram is based on the K-8998
adjustable P-trap with 1" (25 mm) of tailpiece
exposed.
NOTICE: Countertop manufacturer or cutter
must use the current product template
available at www.kohler.com, or by calling
1-800-4KOHLER. Kohler Co. is not responsible
for cutout errors when the incorrect cutout
template is used.
ADA compliant when installed to the specific
requirements of these regulations.
®
Bathroom Sink
K-2214-G
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-15-2022 00:47 - US/CA
