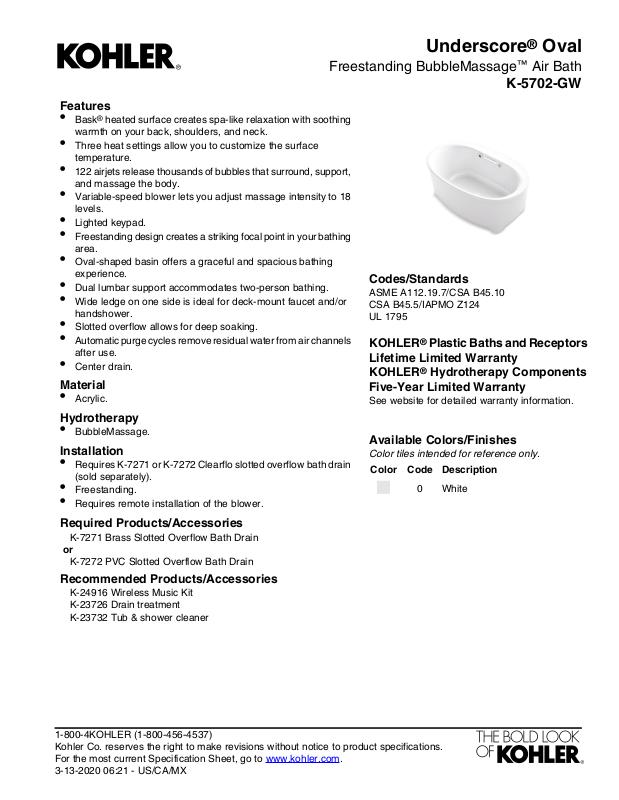

Page 1
Features
•
Bask® heated surface creates spa-like relaxation with soothing
warmth on your back, shoulders, and neck.
•
Three heat settings allow you to customize the surface
temperature.
•
122 airjets release thousands of bubbles that surround, support,
and massage the body.
•
Variable-speed blower lets you adjust massage intensity to 18
levels.
•
Lighted keypad.
•
Freestanding design creates a striking focal point in your bathing
area.
•
Oval-shaped basin offers a graceful and spacious bathing
experience.
•
Dual lumbar support accommodates two-person bathing.
•
Wide ledge on one side is ideal for deck-mount faucet and/or
handshower.
•
Slotted overflow allows for deep soaking.
•
Automatic purge cycles remove residual water from air channels
after use.
•
Center drain.
Material
•
Acrylic.
Underscore® Oval
Freestanding BubbleMassage™ Air Bath
K-5702-GW
Codes/Standards
ASME A112.19.7/CSA B45.10
CSA B45.5/IAPMO Z124
UL 1795
KOHLER® Plastic Baths and Receptors
Lifetime Limited Warranty
KOHLER® Hydrotherapy Components
Five-Year Limited Warranty
See website for detailed warranty information.
Hydrotherapy
•
BubbleMassage.
Installation
•
Requires K-7271 or K-7272 Clearflo slotted overflow bath drain
(sold separately).
•
Freestanding.
•
Requires remote installation of the blower.
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
or
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-24916 Wireless Music Kit
K-23726 Drain treatment
K-23732 Tub & shower cleaner
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-13-2020 06:21 - US/CA/MX
Page 2
19"
(483 mm)
6-3/4"
(171 mm)
29-7/8" (759 mm)
4"
(102 mm)
4"
(102 mm)
8"
(203 mm)
4"
(102 mm)
2"
(51 mm)
1-1/2"
Bath Drain
Lumbar
Angle 18°
Lumbar
Angle 18°
23-1/4"
(591 mm)
24-3/8"
(619 mm)
1-1/8"
(30 mm)
35-3/4" (908 mm)
No change in measurements if connected with drain illustrated. (K-7272)
2-11/16"
(68 mm)
3-3/8"
(86 mm)
3-15/16"
(100 mm)
Recommended Faucet Location
59-11/16" (1516 mm)
4-1/2"
(114 mm)
Recommended Faucet Hole Location
Underscore® Oval
Freestanding BubbleMassage™ Air Bath
K-5702-GW
Required Electrical Service
One dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI). Outside North America,
this device may be known as a Residual Current Device (RCD).
Surface:
Technical Information
All product dimensions are nominal.
Template:
Electrical component
rating:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-13-2020 06:21 - US/CA/MX
120 V, 15 A, 60 HzBlower, Heated
FreestandingInstallation:
CenterDrain location:
43" x 25-5/8" (1093 mm x 651 mm)Basin area, bottom:
55-9/16" x 28-3/8" (1411 mm x 720 mm)Basin area, top:
100 lbs (45.4 kg)Weight:
45.4 lbs/ft² (221.7 kg/m²)Minimum floor load:
16-5/16" (415 mm)Water depth:
72.017 gal (272.6 L)Water capacity:
Footprint, 1265462, not required, not
included
Blower: 120 V, 10 A, 60 Hz
Heated Surface: 120 V, 0.5 A, 60 Hz, 65
W
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
Remote blower installation is required. Relocation
kit is included.
If installing a rim-mount faucet, make sure there
is no interference above or below the deck before
drilling any holes.
