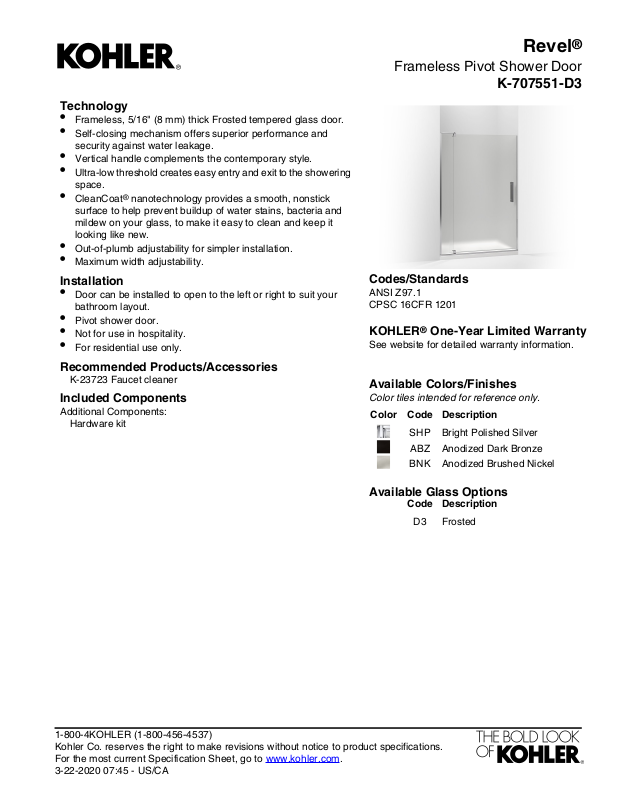

Page 1
Technology
•
Frameless, 5/16" (8 mm) thick Frosted tempered glass door.
•
Self-closing mechanism offers superior performance and
security against water leakage.
•
Vertical handle complements the contemporary style.
•
Ultra-low threshold creates easy entry and exit to the showering
space.
•
CleanCoat® nanotechnology provides a smooth, nonstick
surface to help prevent buildup of water stains, bacteria and
mildew on your glass, to make it easy to clean and keep it
looking like new.
•
Out-of-plumb adjustability for simpler installation.
•
Maximum width adjustability.
Revel
®
Frameless Pivot Shower Door
K-707551-D3
Installation
•
Door can be installed to open to the left or right to suit your
bathroom layout.
•
Pivot shower door.
•
Not for use in hospitality.
•
For residential use only.
Recommended Products/Accessories
K-23723 Faucet cleaner
Included Components
Additional Components:
Hardware kit
Codes/Standards
ANSI Z97.1
CPSC 16CFR 1201
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Bright Polished SilverSHP
Anodized Dark BronzeABZ
Anodized Brushed NickelBNK
Available Glass Options
DescriptionCode
FrostedD3
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-22-2020 07:45 - US/CA
Page 2
2-3/8"
(60 mm) Min
6-1/4"
(159 mm) Max
*33-3/8" (848 mm) Min
*38-1/4" (972 mm) Max
43-1/8" (1095 mm) Min
48" (1219 mm) Max
34-1/16"
(865 mm) Min
37-15/16"
(964 mm) Max
8-3/16"
(208 mm)
2-1/4"
(57 mm)
70"
(1778 mm)
*Walk-through
5/8" (16 mm)
Threshold
Revel
®
Frameless Pivot Shower Door
K-707551-D3
Technical Information
All product dimensions are nominal.
For shower base installationInstallation type:
– Max:
Glass coating:
PivotOpening style:
43-1/8" (1095 mm)Opening Width - Min:
48" (1219 mm)Opening Width - Max:
33-3/8" (848 mm)Walk-through - Min:
38-1/4" (972 mm)Walk-through - Max:
3/8" (10 mm)Base-To-Wall Radius
5/16" (8 mm)Glass thickness:
CleanCoat
®
Notes
Install this product according to the installation
guide.
Strike jamb is made of clear plastic and may not
cover existing shower door holes.
NOTICE: The vertical opening should be a
minimum of 74" (1880 mm) to allow clearance for
installation.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-22-2020 07:45 - US/CA
