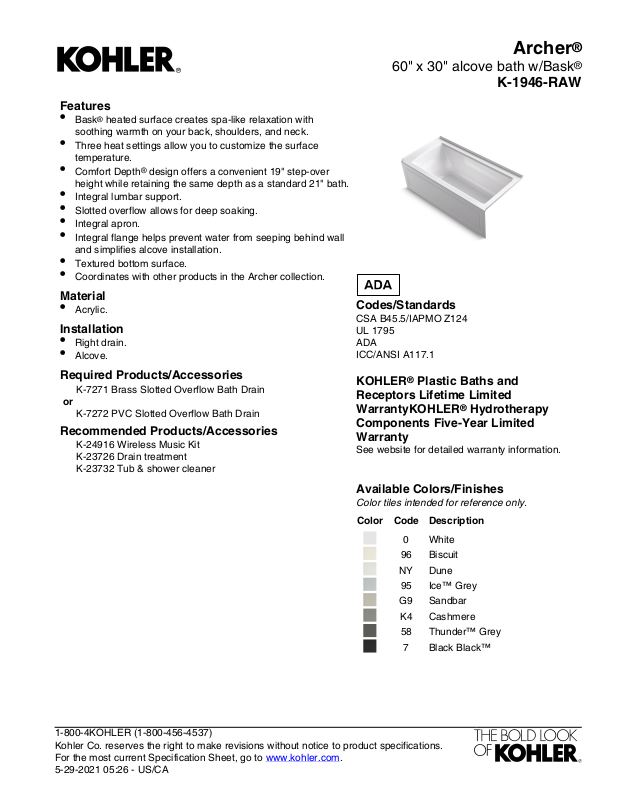

Page 1
Archer
Features
•
Bask® heated surface creates spa-like relaxation with
soothing warmth on your back, shoulders, and neck.
•
Three heat settings allow you to customize the surface
temperature.
•
Comfort Depth® design offers a convenient 19" step-over
height while retaining the same depth as a standard 21" bath.
•
Integral lumbar support.
•
Slotted overflow allows for deep soaking.
•
Integral apron.
•
Integral flange helps prevent water from seeping behind wall
and simplifies alcove installation.
•
Textured bottom surface.
•
Coordinates with other products in the Archer collection.
Material
•
Acrylic.
Installation
•
Right drain.
•
Alcove.
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
or
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-24916 Wireless Music Kit
K-23726 Drain treatment
K-23732 Tub & shower cleaner
Codes/Standards
CSA B45.5/IAPMO Z124
UL 1795
ADA
ICC/ANSI A117.1
KOHLER® Plastic Baths and
Receptors Lifetime Limited
WarrantyKOHLER® Hydrotherapy
Components Five-Year Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit
NY Dune
95 Ice™ Grey
G9 Sandbar
K4 Cashmere
58 Thunder™ Grey
7 Black Black™
60" x 30" alcove bath w/Bask
K-1946-RAW
®
®
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 05:26 - US/CA
Page 2
Archer
1-1/2"
Bath Drain
60" (1524 mm)
30" (762 mm)
19"
(483 mm)
3/4" (19 mm)
2-1/2"
(64 mm)
11-1/4"
(286 mm)
1-1/4"
(32 mm)
15"
(381 mm)
4-1/8"
(105 mm)
No change in measurements if connected
with drain illustrated. (K-7272)
Lumbar
Angle 24°
1/2" (13 mm) R.
1-1/4"
(32 mm)
Integral Flange
Detail
20-1/4"
(514 mm)
Required Electrical Service
One circuit required, protected with Class A Ground-Fault
Circuit-Interrupter (GFCI). Outside North America, this device
may be known as a Residual Current Device (RCD).
Heated Surface: 120 V, 15 A, 60 Hz
Technical Information
All product dimensions are nominal.
Installation: Three-wall alcove
Drain location: Right
Basin area, bottom: 45-1/8" x 19-11/16" (1146 mm x
500 mm)
Basin area, top: 52-1/8" x 22-1/16" (1324 mm x 560 mm)
Weight: 83 lbs (37.6 kg)
Minimum floor load: 46.7 lbs/ft² (228 kg/m²)
Water depth: 15-1/8" (384 mm)
Water capacity: 57 gal (215.8 L)
Electrical component
rating:
Heated Surface: 120 V, 0.5 A, 60 Hz, 65
W
Minimum flat for
door:
2" (51 mm)
Notes
Measure your actual product for rough-in
details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
ADA compliant when installed to the specific
requirements of these regulations.
60" x 30" alcove bath w/Bask
K-1946-RAW
®
®
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 05:26 - US/CA
