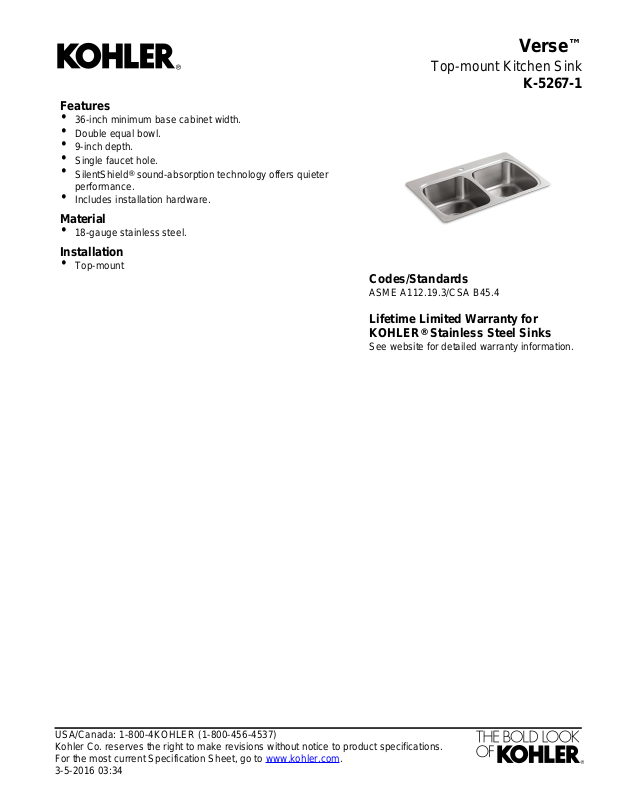

Page 1
Features
•
36-inch minimum base cabinet width.
•
Double equal bowl.
•
9-inch depth.
•
Single faucet hole.
•
SilentShield® sound-absorption technology offers quieter
performance.
•
Includes installation hardware.
Material
•
18-gauge stainless steel.
Installation
•
Top-mount
Verse
Top-mount Kitchen Sink
K-5267-1
Codes/Standards
ASME A112.19.3/CSA B45.4
Lifetime Limited Warranty for
KOHLER® Stainless Steel Sinks
See website for detailed warranty information.
™
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-5-2016 03:34
Page 2
22"
Verse
™
Top-mount Kitchen Sink
K-5267-1

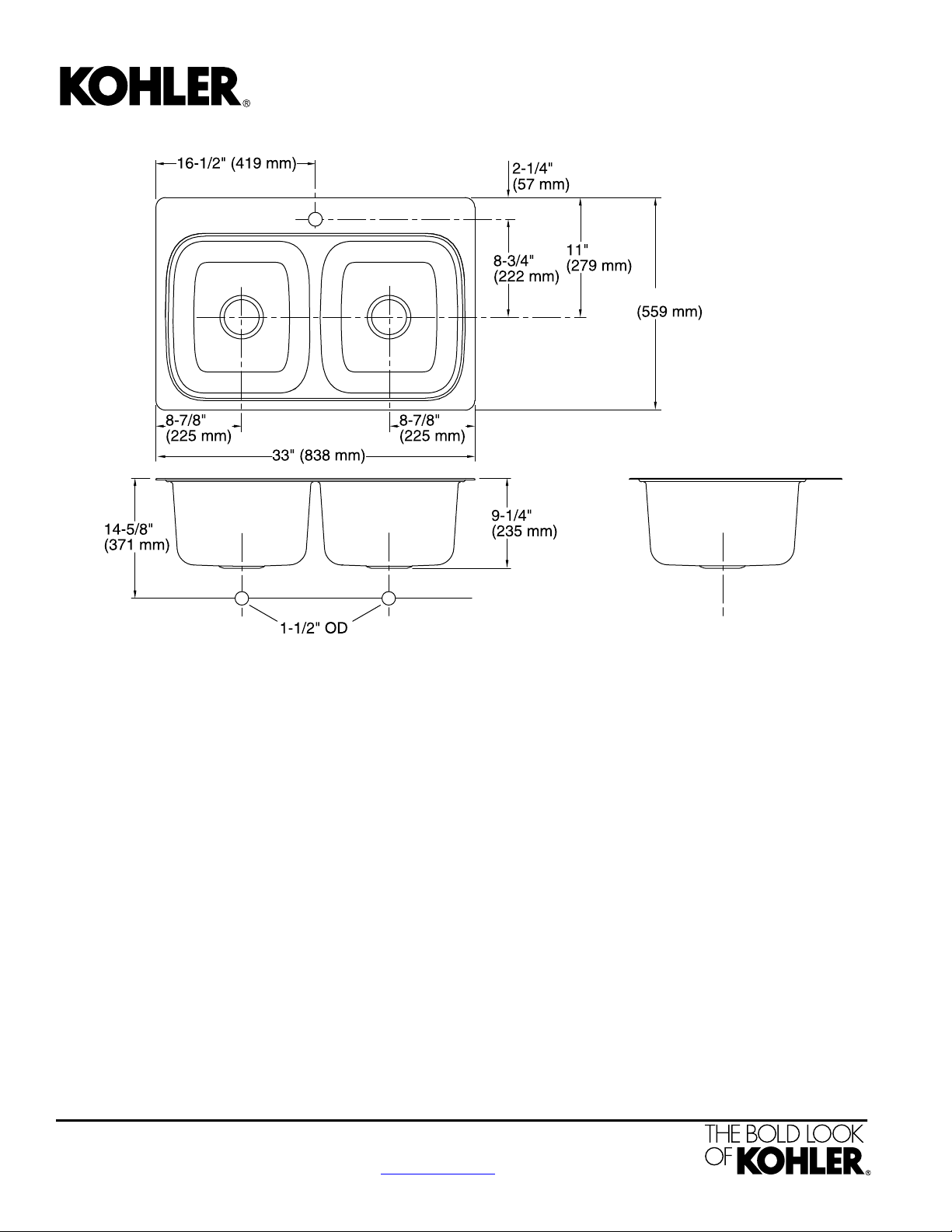

Technical Information
All product dimensions are nominal.
Double equalBowl configuration:
Top-mountInstallation:
36" (914 mm)Min. base cabinet
width:
Bowl area (Left)
Bowl area (Right)
Length: 14-3/16" (360 mm)
Width: 15-11/16" (398 mm)
Bowl depth: 9" (229 mm)
Length: 14-3/16" (360 mm)
Width: 15-11/16" (398 mm)
Bowl depth: 9" (229 mm)
1Number of deck holes:
1-7/16" (37 mm)Faucet hole(s):
3-5/8" (92 mm)Drain hole:
Notes
Install this product according to the installation
guide.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-5-2016 03:34
